| Prod Model: |
CAT6 |
| Size Of Conductor: |
23AWG/24AWG |
| Numbers Of Conductor: |
8 |
| Insulation: |
HDPE |
| Jacket: |
PVC/PE |
| Color: |
Customers'request |
| Outer Carton Size: |
41*41*48cm |
| Test: |
Fluke Link |
| Application: |
Submarine Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
VDE |
| Model: |
CAT6 UTP |
| Brand: |
Cx-Cable |
Product Description

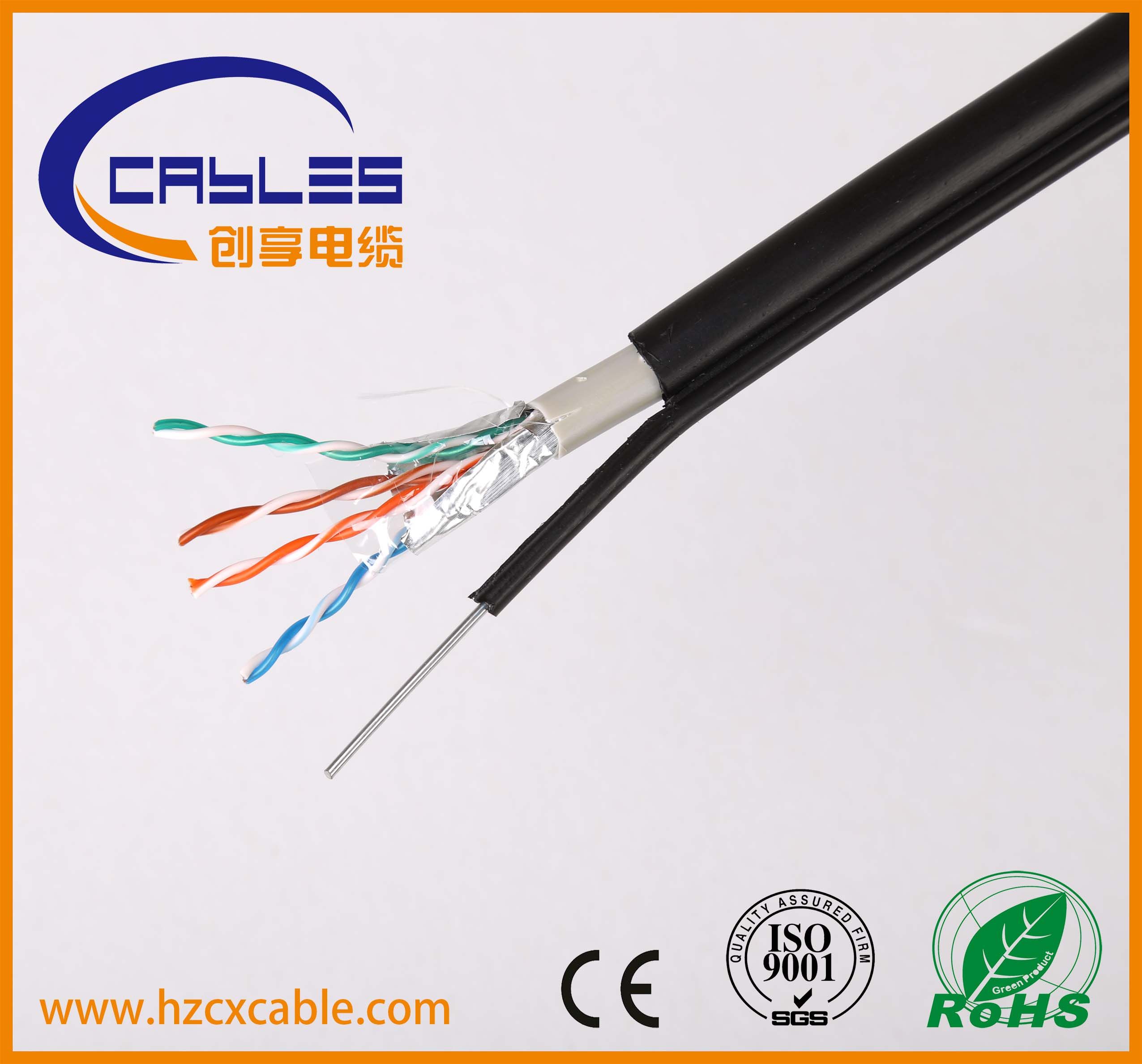

Flexible Cat5e/Cat6 Ethernet Cable Waterproof Cable With Messenger SteelConstruction:1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.02±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 6.0±0.3mm PVC (PE, LSZH)
5. Messenger
Options: Jelly Compound, Jacket: UV, RoHS complied.
Electrical Performance: | 1.0`250.0MHz Impedance(ohms) | 100±15 |
| 1.0~250.0MHz Delay Skew(ns/100m) | ≤45 |
| 20ºC Conductor D.C, Resistance(ohms/km) | ≤65.8 |
| Unbalance of Pair(%) | ≤1.0 |
Technical Performance: Frequency
(MHz)
|
Attenuation
(dB/100m)
|
Return loss
(dB/100m)
|
Pair to Pair |
NEXT
(dB/100m) | ELFEXT
(dB/100m) |
0.77
1
4
8
10
16
20
25
31.25
62.5
100
155
200
300
350 | 1.80
2.00
4.00
5.80
6.50
8.20
9.20
10.40
11.70
17.00
22.00
28.10
32.40
41.00
44.90 | NA
20.00
23.00
24.50
25.00
25.00
25.00
24.30
23.60
21.50
20.10
18.80
18.00
16.80
16.30 | 70.00
68.30
59.30
54.80
53.30
50.30
48.80
47.30
45.90
41.40
38.30
35.50
33.80
32.30
30.20 | 69.00
66.80
54.70
48.70
46.80
42.90
40.70
38.80
36.90
30.80
26.80
22.90
20.70
17.20
15.90 |
Cable Packing Details:300m/easy pull box/Outer Carton
305m/easy pull box/Outer Carton
100M/easy pull box
500m/wooden reel/box
Other Packings according to customers'demand~FAQ1. Q: What kind of cable do you produce?
A: We specialize in producing coaxial cables, Lan cables & telephone cables.
2. Q: What's your MOQ?
A: Our MOQ is 20km per item. Free samples can be sent for your quality evaluation.
3. Q: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit. Its base on the quantity of the order.
4. Q: What are your payment terms?
A: We accept T/T, L/C. Other payments accept through negotiation.
5. Q: What is your manner of packing?
A: Inner packing: wooden reel, plastic reel, paper reel, shrink wrap;
Outer Packing: carton, pull-out-box, plastic pallet, wooden pallet;
We can provide customized packing as per your taste or brand requirements.
6. Q: Can your factory customize cables based on customer's samples?
A: Yes, we can. OEM and ODM are both welcome.
