| Markets: |
North America,South America,Africa |
| Application: |
Industrial |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
Rubber |
| Certification: |
CE |
| Sheath Material: |
Rubber |
| Brand: |
Jinshui |
Product Description

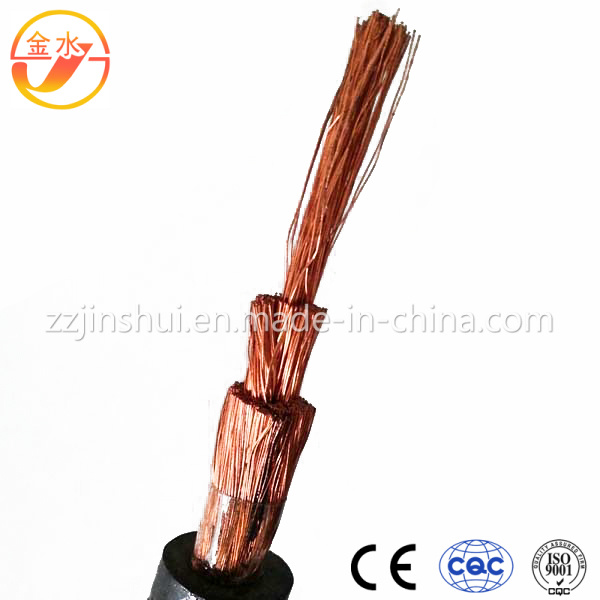

Specifications450/750 Flexible Copper/CCA Rubber Insulation Electric Welding Cable
Specifications
450/750 PVC insulation CCA welding cable
voltage AC 200V~DC 400V
Standards: IEC60245
Welding CableDetailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature
Model |
Name |
Main applications |
Working temperature
of core ≤0C |
YH |
Natural Rubber Sheath for Welding Cable |
Always used indoor |
65 |
YHF |
Neoprene Rubber Sheath Welding Cable |
Always used outdoor |
65 |
Synthetic elastomer Sheath Welding Cable |
3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm2) |
20oC Conductor Resistance≤(Ω/km) |
Reference Weight(kg/km) |
Number/Diameter of Core(mm) |
Min |
Max |
YH |
YHF |
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153.51 |
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218.9 |
230.44 |
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316.6 |
331.15 |
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439.87 |
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592.47 |
610.55 |
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817.52 |
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066.17 |
1102.97 |
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348.25 |
1392.55 |
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
1678.5 |
1698.72 |
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983.8 |
2020.74
|
