Flexible Low Loss 75 Ohm Satellite Coaxial Rg Cable

Name: Flexible Low Loss 75 Ohm Satellite Coaxial Rg Cable
Brand: all-electronics-online.com
SKU: 818604405
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 0.02-0.12/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

-------------------------------------------------------PRODUCT----------------------------------------------------
[General]
1. Name: Flexible Low Loss 75 Ohm Satellite Coaxial RG Cable
2. Item Code: RG59SF
3. Characteristics:
    1) High velocity of propagation, low attenuation, low return loss;
    2) Perfect connecting cable for digital video and audio signals for the highest quality image;
    3) Perfect cable for satellite TV & high speed internet;
    4) Durable & flexible PVC jacket is ideal for running cable through dry wall and over drop ceilings girders;
    5) Allows for bending cable without damaging the quad shielded insulated wiring.
4. Certificate: UL, ETL, CE, RoHS, EVPU.

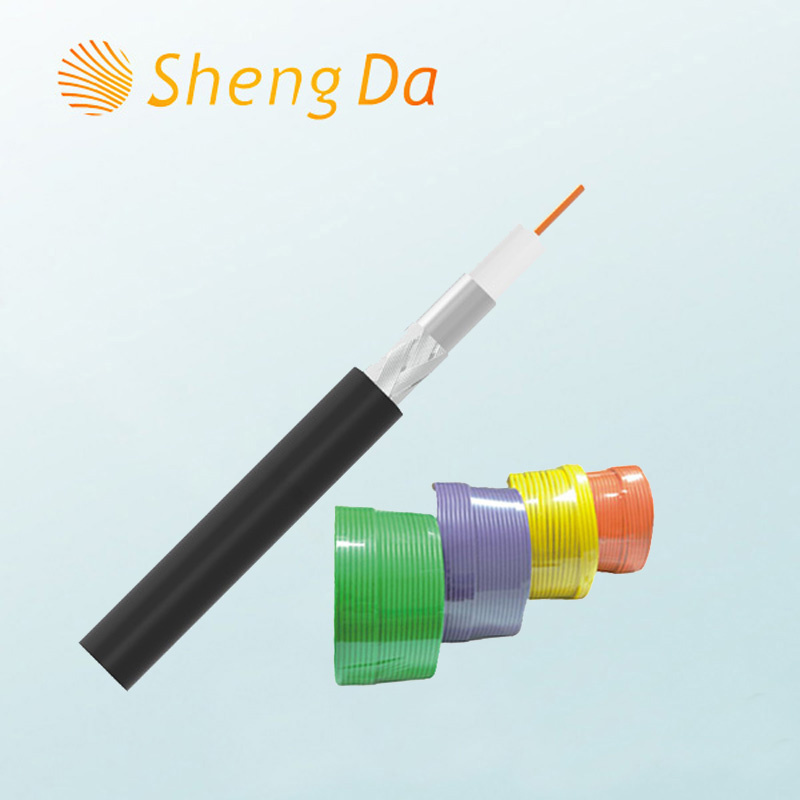

5. Picture

[Specification]

Name	Material	Parameter
Inner conductor	Bare copper, tinned copper or copper clad steel	0.81 mm (diameter)
Dielectric	Physical foam PE	3.66 mm (diameter)
1st shield (Tape)	Bonded aluminum foil	3.84 mm (diameter)
2nd shield (Braid)	Aluminum braid	67% or 95% coverage
3rd shield (Tape)	N/A	N/A
4th shield (Braid)	N/A	N/A
Jacket	PE	6.10 mm (diameter)
Messenger	N/A	N/A

[Electrical Characteristics]

Characteristic Impedance	75 Ohms
Velocity of Propagation	85%
Capacitance	52 PF/m
Return Loss	≥22 dB
Operation Temp	-20~+80ºC

[Attenuation at 20ºC]

Frequency (MHz)	5	55	300	500	750	1000
Maximum(dB/100m)	2.82	6.73	14.60	18.70	22.87	26.64

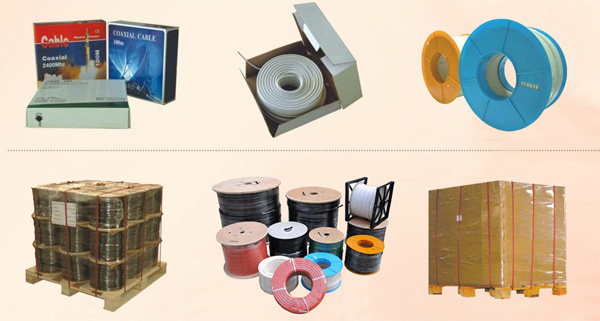

[Packing]

-------------------------------------------------------COMPANY----------------------------------------------------
[Overview]

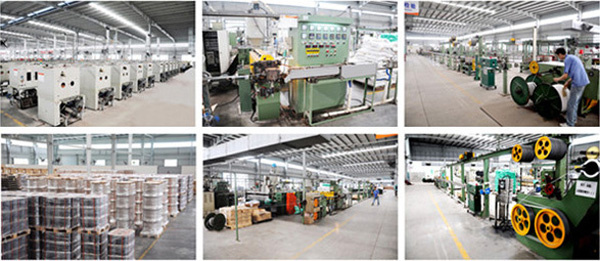

[Workshop]

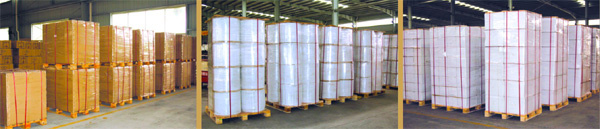

[Storehouse]

[Trade Show]

-------------------------------------------------------CONTACT----------------------------------------------------
Shengda Cable Co Ltd
Address: No.100, Changbao West Rd, Ronggui, Shunde, Foshan, Guangdong, China
Website: www.shengda-cable.com
Contact: Derek Li
Tel: 86-757-2638-9090
Fax: 86-757-2662-5464
Cell: 86-139-2487-1973

Prod Model:	RG59SF
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ETL
Type:	Rg59
Brand:	Shengda

Shengda Cable Co Ltd, formerly known as Shun Fat Electric Manufactory, is affiliated to Shun Fat Innovations Limited, a company incorporated in Hong Kong. Located in Pearl River Delta, the most dynamic region in China Mainland, Shengda enjoys the benefits of what a center of advanced manufacturing and modern service industries brings.

Established in 1985, Shengda has over 300 skilled workers and a team of marketing and engineer experts. In October 2006, Shengda moved its office and factory into Shunde High Tech. Industrial Park, the most famous high tech. Industrial center in China. Shun Fat has a factory site of over 40, 000 square meters. In its 20, 000- square- meter gardenesque workshop, there are series of integrated production appliances, among which are 4 physical foaming machines, 4 PVC Jacket extrusion machines, 2 machines for production of alarm and security cables. There are also over 400 sets of braiding machines, 100 of them are of high speeding and the remaining are of multi-function. To make sure the quality control mechanism works effectively, Shengda is equipped with various kinds of testing instrument and facilities.

Shengda manufactures wide range of products from coaxial cables to security cables with a capacity of over 250, 000 kilometers and annual turnover of nearly RMB100 million. Its products meet standard globally and have been certified or approved by ISO9001, , CCC for China, UL & ETL for US, CSA for Canada, CE & LVD for Europe.

Shengda takes pride in its human assets, its professional staff with caring minds to serve and to improve. Shengda and its working team are making continuous efforts to pursue perfectionism in providing products and service.
