Prod Model: |
Fl030 |
Board Material: |
Polyimide |
Board Thickness: |
1.6 mm |
Copper Thickness: |
1 Oz (35um) |
Surface Treatment: |
HASL Lead Free |
Service: |
High Quality |
Lead Time: |
5-10 Days |
Small Order: |
Accepted |
Test: |
100% Test |
PCB Type: |
Rigid-Flexible PCB |
Silk Screen: |
White |
Structure: |
Multilayer FPC |
Material: |
Polyimide |
Combination Mode: |
Without Adhesive Flexible Plate |
Application: |
Aviation and Aerospace |
Conductive Adhesive: |
Conductive Silver Paste |
Brand: |
Fastline |
Product Description

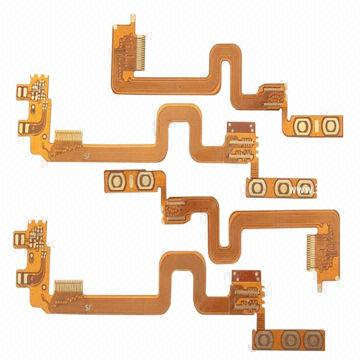

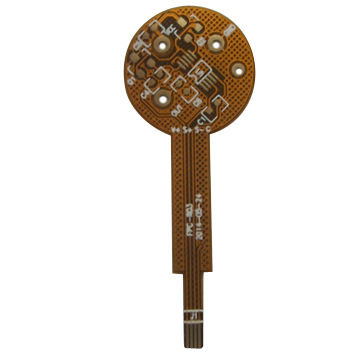

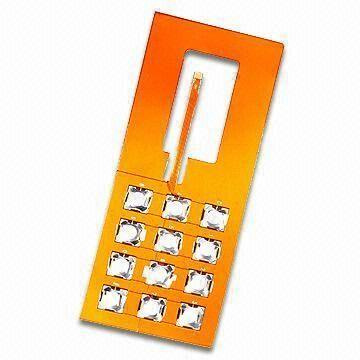

Flexible Printed Circuit Board PCB for Automotive and Medical Devices
Product description:
production line PCB Manufacture Capability |
Item | Manufacture Capability |
Layers | 1-26 Layers |
HDI | 2+N+2 |
Material Types | Fr-4, Fr-5, High-Tg, Aluminum Based ,Halogen Free, |
| Isola, Taconic, Arlon, Teflon, Rogers, |
Max. Panel Dimension | 39000mil * 47000mil (1000mm * 1200mm) |
Outline Tolerance | ±4mil (±0.10mm) |
Board Thickness | 8mil-236mil (0.2 - 6.0mm) |
Board Thickness Tolerance | ±10% |
Dielectric Thickness | 3mil-8mil ( 0.075mm-0.20mm) |
Min. Track Width | 3mil ( 0.075mm ) |
Min. Track Space | 3mil ( 0.075mm ) |
External Cu Thickness | 0.5 OZ - 10 OZ ( 17um - 350um) |
Internal Cu Thickness | 0.5OZ - 6OZ ( 17um - 210um) |
Drilling Bit Size ( CNC ) | 6mil-256mil ( 0.15mm - 6.50mm) |
Finished Hole Dimension | 4mil-236mil(0.1mm - 6.0mm) |
Hole Tolerance | ±2mil (±0.05mm) |
Laser Drilling Hole Size | 4mil(0.1mm) |
Aspect Ration | 16:1 |
Solder Mask | Green, Blue, White, Black, Red, Yellow, Purple, etc. |
Min Solder mask Bridge | 2mil(0.050mm) |
Plugged Hole Diameter | 8mil-20mil ( 0.20mm-0.50mm) |
Beveling | 30o - 45o |
V-scoring | +/-0.1mm, 15o 30o 45o 60o |
Impedance Control | Min.5% General ±10% |
Surface Finishing | HASL, HASL(lead Free), Immersion Gold |
| Immersion Silver, OSP, Hard Gold ( up to 100u") |
Certification | UL RoHS ISO9001:2000 ISO14000:2004 SGS |
Testing | Flying probe,E-TEST, X-RAY Inspection ,AOI |
Files | Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc |
Why Choose Us?
1. High quality and quick service is our long-term target for custome.
we are strictly control the product quality and provide customers good and quick service
,please do not hesitate to contact us if has any questions,your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced salesman or engineering can answer all your inquires with fluent English.
3.Provide OEM&ODM service, we can help you to design and put into product.
4.Quick and fast lead time:
For Samples:
1-2 Layers: 5 to 7 working days
4-8 Layers: 10-13 working days
For Mass production:
1-2 Layers: 7 to 10 working days
4-8 Layers: 10 to 17 working days
The final lead time based on your PO detail quantity.
5. Protection of your sales area, copyright, ideas of design and all your private information,keep customers information confidential is our responsibility.
6.Reasonable price and top quality products, lower delivery cost help customers cost down and make customers more competative in the market.
Fastline Circuits Co.,Limited
Address:59A ZhongYang Building ,No.24 FuHai Road,FuYong,Bao An,ShenZhen,GuangDong,China 518103
Tel: +86 755 2332 9221 Fax:+86 755 2332 9659
Cellphone/ :+8618025363502
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
