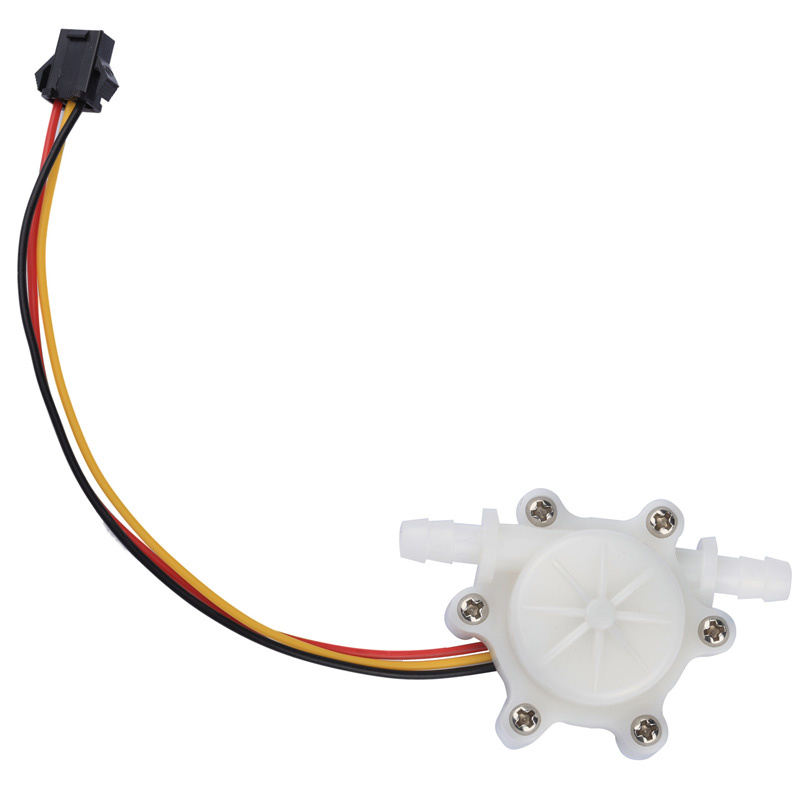

Flow Sensor, Trough Type, Hall Effect Flow Sensor, Flow Meter,
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
100/Piece |
Pay Type: |
T/T,Paypal |
Prod Model: |
AH001 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Sensor: |
Plug-in |
Measuring Media: |
Liquid |
Application: |
Industrial Production |
Measuring Principle: |
Electrical Principles |
Main Application: |
Wastewater, Water |
Type: |
Electromagnetic Flow Meter |
Product Description
Medium flow solutionFood grade material, it can be worked in the water which temperature is 100ºC.Wide operating voltage rangeStable square wave signalNo need external circuit No need customer to install magnetic fieldGeneral application:Teaset, supply equipment etc for civil use, and appliance for commercial use.Feature:The through type Hall effect flow sensor AH-001 is based on Hall effect element, and it's very simple to use, the output signal is square wave, and it's accurate and reliable, the customer can use it by connect it as per the operating note, it can be applied in the digital circuit and MCU simply. The food grade material make it can be applied in different occasions, the operating temperature can reach 100ºC. Connection mode:1,The output of connector is as figure:2,Outer lead mode:Red: VCC Black: GNDYellow: OUT
Electrical Parameter |
Typ. |
Min. |
Max. |
Unit |
Operating Voltage VCC |
4.5 |
3.5 |
16 |
V |
Quiescent Current ICC |
3.5 |
3 |
10 |
mA |
Output High Level VH |
VCC-0.2 |
VCC-0.5 |
VCC |
V |
Output Low Level VL |
0.1 |
0 |
0.5 |
V |
Operating Temp. |
20 |
-45 |
100 |
ºC |
Storage Temp. |
20 |
-45 |
125 |
ºC |
@ Electrostatic Protection |
2000 |
- |
4000 |
V |
Flow Parameter ( L/min ) |
Flow Meter accuracy 2% |
inlet caliber |
min |
max |
10.4mm |
3 |
16 |
