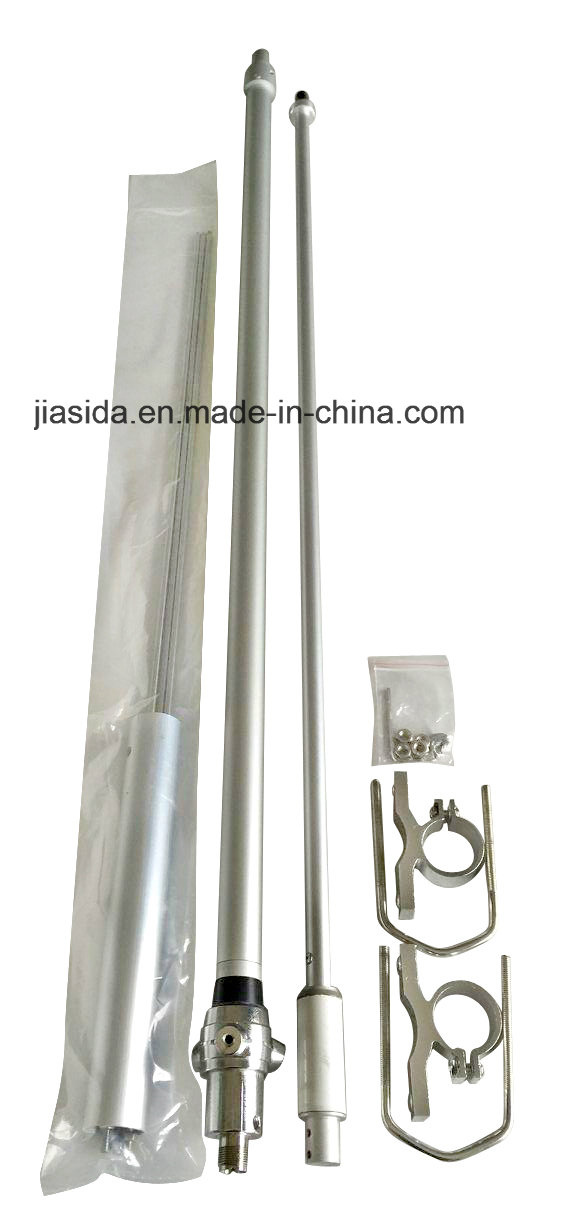

FM Adjustable Antenna with High Power

FM Adjustable Antenna with High Power
Price: Negotiable/Piece
Min Order: 30/Piece
Pay Type: T/T,Western Union,Paypal

ELECTRICAL SPECIFICATIONS
Frequency Range               88-110MHz
Impedance                      50
VSWR                         <1.5
Gain                          6dBi
Horizontal Beam Width             360º
Vertical Beam Width               13º
Polarization                   Vertical
Maximum Power Input-watts      300 W
Lighting Protection            Direct Ground

 MECHANICAL SPECIFICATIONS
Connector                  PL259 Female    /N female
Weight      1500g
Radiating z Material               Aluminum Alloy
Color                          White
Material of Hardware-supplied      Aluminum Alloy
Hold Pole Diameter                  Ø30~Ø50 mm
Length      238-346±3cm  ( when packaging length:104cm)

Note:2MHz scale mark





Prod Model: FM-88-110-6
Frequency Range: 88-110MHz
Usage: Broadcasting Antenna
Material: Al
Directionality: Omnidirectional Antenna
VSWR: <1.5
Our products have a 99.5% product acceptance rate

R&D team with over 30 years' expertise Advanced testing equipment

With 25 Years of Working Experience

Jiasida Communication is a high-technology company professionally engaged in the R&D, production and operation of communication antennas and passive devices.

Manned by Skilled Producers and Testers

We employ 10 members in our R&D team who have been engaged in the electronic communication industry for over 25 years. With skilled producers and testers, complete testing instruments and professional facilities, we devote ourselves to the development and production of all kinds of interphone antennas, vehicle antennas, omni antennas, power splitters, combiners and POI. We also provide personal services according to customers' specific requirements, and fully adopt advanced techniques from China and abroad. Thus, we continuously innovate, and endow our new products to own an identity.

R&D team with over 30 years' expertise provides LTETM, CB, VHF, UHF and GSM antennas and more

• Utilizing advanced testing equipment such as network analyzers, fi eld testers, and CNC and ultrasonic cleaning machines

• Step-by-step QC inspections

• Clients in the US, Australia, Europe, Asia and other countries and regions

• No MOQ; 3- to 5-day lead times

Contact Us Today

To learn more about our products and services, contact us today.
