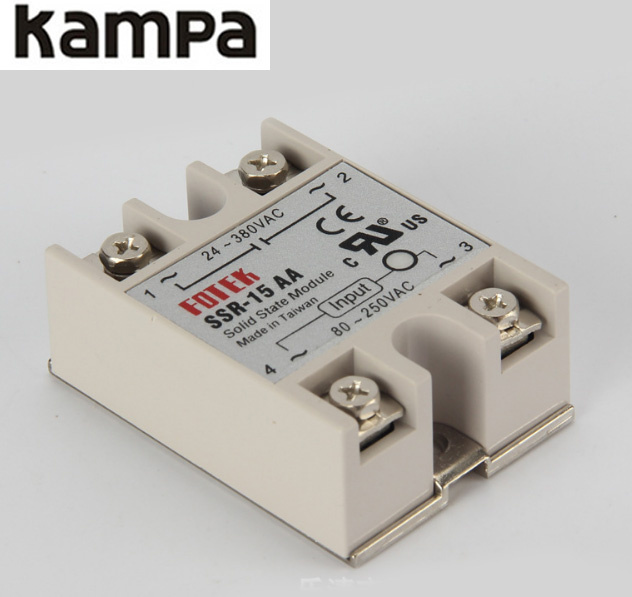

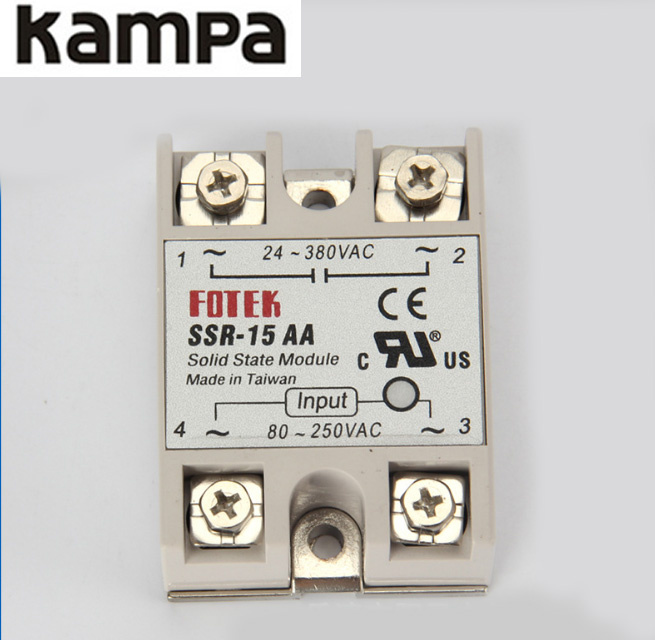

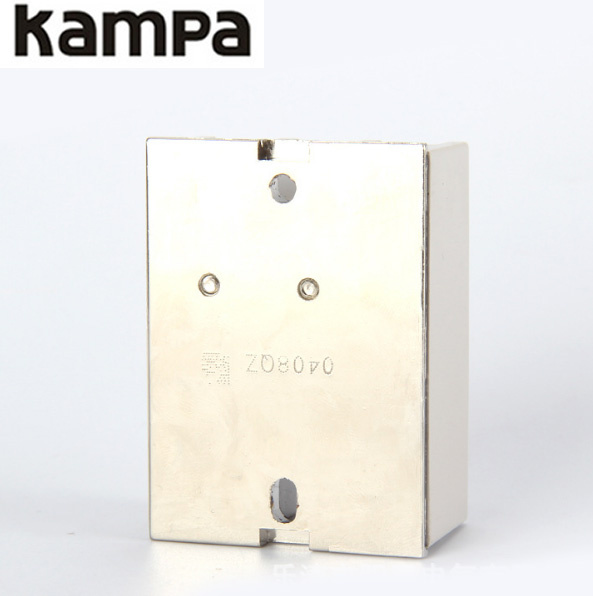

Foteck SSR 15AA an Electric 220VAC Solid State Relay SSR

Name: Foteck SSR 15AA an Electric 220VAC Solid State Relay SSR
Brand: all-electronics-online.com
SKU: 828435295
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 1.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SSR 15AA
Control Methods:	AC to AC
Load Current:	15A
Load Voltage:	5~60VDC, 5~110VDC, 5~250VDC
Input Control Voltage:	3~32VDC
Control Current:	Control Current

Product Description

Foteck SSR 15AA an electric 220vac solid state relay ssr
Appliance:
With a switch no spark,no noise,high switching speed anti-corrasion,maisture-proof,anti-vibraction
long life.highreliability,electromagnetic compatibility and other characteristics,
it can be widely in earospace,marine,household
appliance,machine tools,telecommunications,automobile,mining ect,automation and control area.

Type	SSR-15DA	SSR-15AA	SSR-15DD
Contact methods	DC-AC	AC-AC	DC-DC
Load current	15A	15A	15A
Load voltage	24~380VAC	H90~480VAC	5-60VDC
Input control voltage	3~32VDC	80~250VAC	3~32VDC
Control current	DC:3-25mA	AC:12mA	6~25mA
On voltage	≤1.5VAC	≤1.5VAC	≤2,3VAC
Off leakage current	≤2mA	≤2mA	≤2mA
On-off time	≤10ms	≤10ms	≤10ms
Dielectric strength	2500VAC	2500VAC	2500VAC
insulation resistance	500MΩ/500VDC
Ambient temperature	-30ºC~+75ºC
Mounting methods	Bolt fixed
The work instructions	LED
weight	150g
