Prod Model: |
EOS-402-W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item Name: |
Eoc Slave Eoc Master |
Function: |
Ethernet Over Cable TV Network |
Eoc Slave Port: |
1 Wan, 4 10/100Mbps RJ45, 1 CATV Interface |
Working Frequency: |
7.5-65MHz |
Output Power: |
≥110dbuv |
Modulation Mode: |
Ofdm |
Physical Layer Bandwidth: |
700Mbps |
RF Working Band: |
87-1000MHz |
Dimension: |
180(Mm)*110(Mm)*31(Mm) |
Power Supply: |
DC 12V/1A External Power Adapter |
Usage: |
Workstation |
Type: |
Wired |
Support Network: |
Ethernet |
Information Content: |
Data |
Certification: |
CE |
Condition: |
New |
Product Description

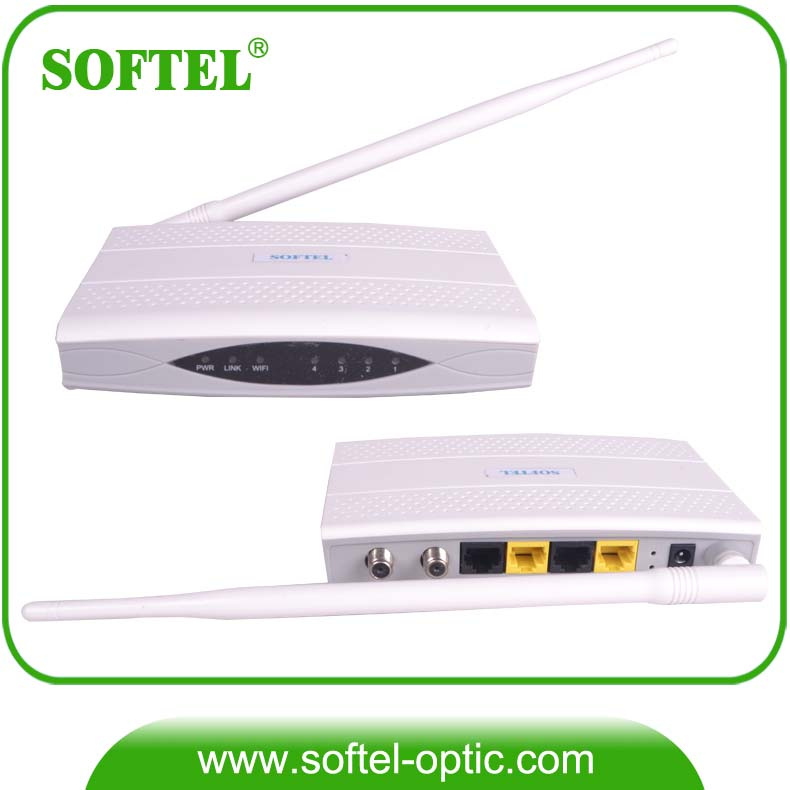

Four Ethernet Cable Modem EoC Slave EoC Master with WIFI Antenna
EoC Slave Brief Discription
EOS-402-W terminal equipment is used to construct two-layer Ethernet transmission channel in CATV Cable network.Transmit and receive the Ethernet signals by CATV coaxial cable, without affecting the existing CATV signals.EOS-402-W coaxial cable broadband access terminal adopts the industry recognized solution HomePlugAV AR7411.Connect with slave equipment via coaxial WAN port.Local provide four 100M full-duplex Ethernet interface, can simultaneously connect with computer, digital TV set-top box, IP telephones, etc.Provide wireless WIFI 11N router function, use wireless WIFI access to the Internet.
EOS-402-W supports two SSID as required.One for operator's network maintenance, another for user's wireless internet access, based on IEEE802.11n standard, can extend the wireless network scope;Provide stable transmission up to 150Mbps.It is compatible with IEEE802.11b and IEEE802.11g standards.
EOS-402-W user side has two accounts with different permissions:Maintenance account and home gateway user account.Users log in use username and password to configure or manage on EOS-402-W.WAN connection of EOS-402-W supports four subinterface settings.Build independent channels of management, video services, voice services and internet services.WAN connection can add, modify and delete the subinterface.Each subinterface has routing mode and bridge mode.EOS-402-W as a data hub of home network and external network, can classify the data stream according to user side interfaces (including wired and wireless interface) service discovery results, QoS adaptive the different data stream;Support bandwidth control, can limit the maximum upstream bandwidth and downstream bandwidth of each subnet bridge, to prevent the entire Cable transmission network impact when user side other network equipment is abnormal or has man-made attack.Support priority identification, identify data packages of specific service (such as RTP data flow) according to service discovery results, including 802.1d identification and DSCP identification.Support six priority queues and different scheduling algorithms, including:SP, DWRR and CAR.
EOS-402-W supports encryption transmission, protect the sensitive data.
EOS-402-W EoC Slave Characteristics
Meet IEEE HomePlug AV, 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.3, IEEE802.3u;
EOC coaxial cable WAN access, provide four interfaces:TV, PHONE, WiFi wireless and wired;Support CSMA/CA, CSMA/CD, TCP/IP, PPPoE, DHCP, ICMP and NAT protocols;
Provide 1 WAN port and 4 LAN ports (10/100M adaptive), support port auto MDI/MDIX;
Provide two working modes:Bridge Mode and Routing Mode;
Support Quality of Service (QoS)-802.11e;
Support remote and Web management, full Chinese configuration interface;
Support multi-SSID function;
Support NAT/NAPT IP share, WAN supported protocols:PPPoE/Static IP/PPTP/DHCP;
Provide stable transmission up to 150Mbps;
Support virtual server and DMZ host;
Support 128 bit WEP and the newest wireless security standards such as WPA-PSK and WPA2-PSK;
Support UPnP function and DDNS function;
Support IP filtering, port filtering and MAC address filtering;
Built-in DHCP server, built-in firewall to prevent DoS attack;
Provide system security log and traffic statistics function;
Provide Web management page reset, and support online software upgrades;
WiFi support 3dBi high-gain omnidirectional antenna;
External DC12V 1A power adapter.
Product Model | EOS-402-W |
Ports |
WAN | One screw-thread Cable interface |
LAN | Four 10/100M adaptive RJ45 port |
TV | One CATV coaxial line interface |
Supported standards and protocols |
IEEE HomePlug AV, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE802.3u, CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE |
WiFi Parameters |
Frequency range | 2.4~2.4835GHz |
Transmission rate | 11n:270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps |
IEEE 802.11g:54/48/36/24/18/12/9/6 (self-adaptive) |
IEEE 802.11b:11/5.5/2/1M (self-adaptive) |
Working channel number | 13 |
Spread-spectrum technology | DSSS (Direct Sequence Spread Spectrum) |
Data modulation | DBPSK, DQPSK, CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM) |
Sensitivity @ PER (Packet Error Rate) | 270M:-68dBm@10% PER;130M:-68dBm@10% PER; 108M:-68dBm@10% PER;54M:-68dBm@10% PER; 11M:-85dBm@8% PER;6M:-88dBm@10% PER; 1M:-90dBm@8% PER;(typical value) |
Transmission distance | Indoor 120m, outdoor 360m at most (depend on the environment) |
RF power | 20dBm EIRP |
Antenna | 3dBi high-gain omnidirectional antenna |
EOC Parameters |
Working frequency | 7.5-65MHz |
Output power | ≥110dBuV |
Modulation mode | OFDM |
Physical layer bandwidth | 700Mbps |
IP layer throughput | Exclusive or shared 320Mbps |
RF impedance | 75Ω |
CATV RF |
Working band | 87-1000MHz |
Return Loss | >16dB |
Insertion Loss | ≤1dB |
Network media |
10Base-T:Category 3 or above 3 UTP;100Base-TX:Category 5 UTP |
LED Indicators |
WAN | Normally on:Connected;Flashing:Data transmission |
LAN | Normally on:Connected;Flashing:Data transmission |
Others | Power(power supply), EOC (EOC chip initialization indicator), WIFI (wireless indicator) |
General Characteristics |
Dimension (L×W×H) | 180(mm)*110(mm)*31(mm) |
Use environment | Working temperature:-20ºC~ 55ºC; Working humidity:10%~ 90 % no condensation; Storage temperature:-40ºC~ 70ºC; Storage humidity:5%~ 90 % no condensation. |
External power supply | Power adapter output:DC 12V/1A |
