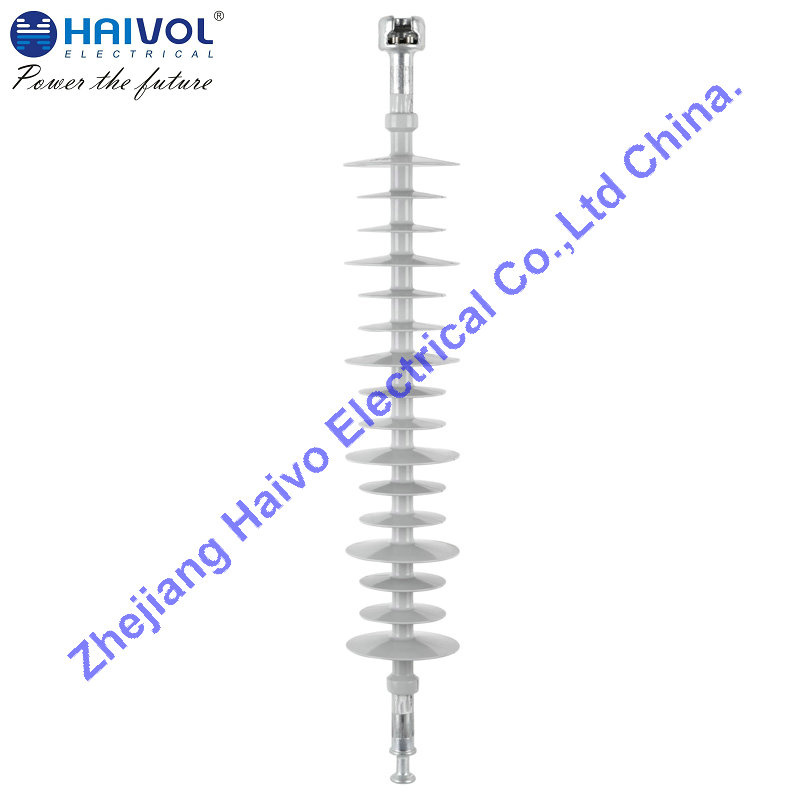

Long Rod Suspension Composite Insulator FPBW4-330/100
Application For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.
Ratings: Up to 500kV.
Standards: IEC 61109

Composite Insulator for AC Power Distribution System

Features:
Secure and reliable operation on high mechanical strength.
Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability.
Good electric performances
Strong anti-pollution falshover ability.
High anti-aging performances which is perfect for utilization under conditions of high altitude.
Easy for maintenance.

Product range:
Long rod polymer insulator up to 500kV.
Polymer pin insulator up to 36kV.
Polymer post insulator up to 252kV.
Line post insulator up to 36kV.

Note: For details, please refer to the catalogue.

Type	Rated voltage(kV)	Specified mechanical load(kN)	Section length(mm)	Min Arc distance(mm)	Leakage distance(mm)	Lightning impulse withstand BIL(kV)	Power frequency withstand (wet) (kV)
FPBW4-66//70	66	70	900	710	1980	410	185
FPBW4-66/100	66	100	940	710	1980	410	185
FPBW4-110/100	110	100	1240	1000	3315	550	230
FPBW4-145/120	145	120	1480	1240	4123	725	355
FPBW4-220/100	220	100	2240	1900	6300	1000	395
FPBW4-220/160	220	160	2240	1900	6300	1000	395
FPBW4-330/100	330	100	2990	2600	9075	1425	570
FPBW4-330/160	330	160	2990	2600	9075	1425	570
FPBW4-500/160	500	160	4080	3730	12750	2250	740

Prod Model:	FPBW4-330/100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Polymeric Type:	Suspension Insulator
Application:	Insulators
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Brand:	Haivol
