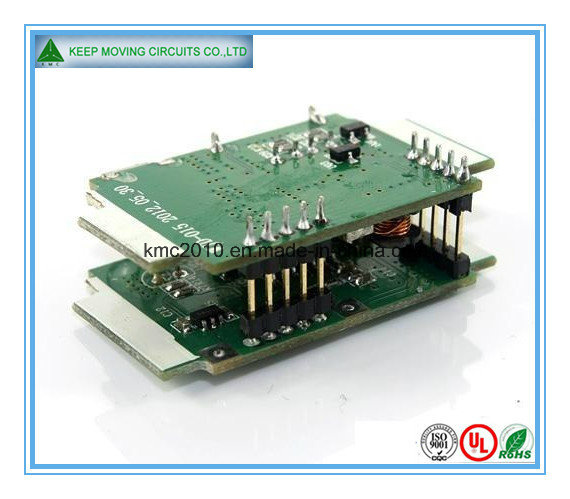

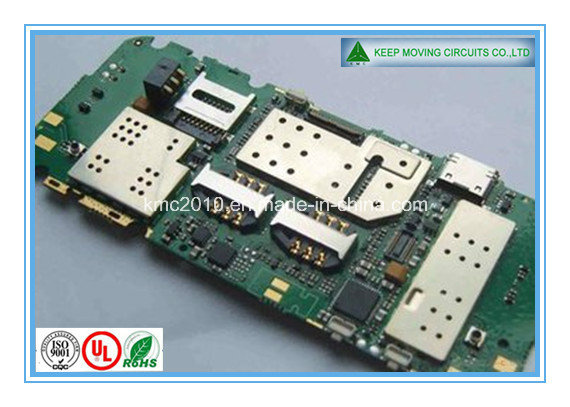

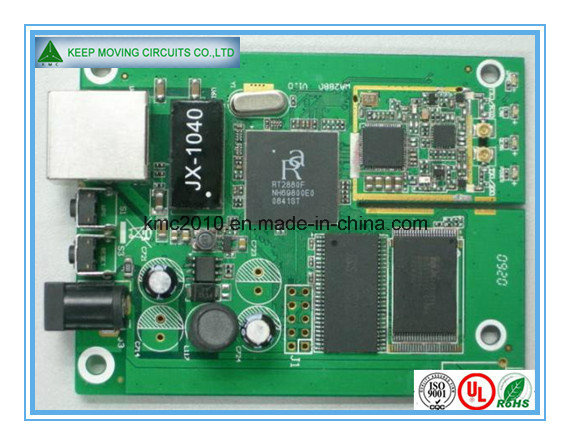

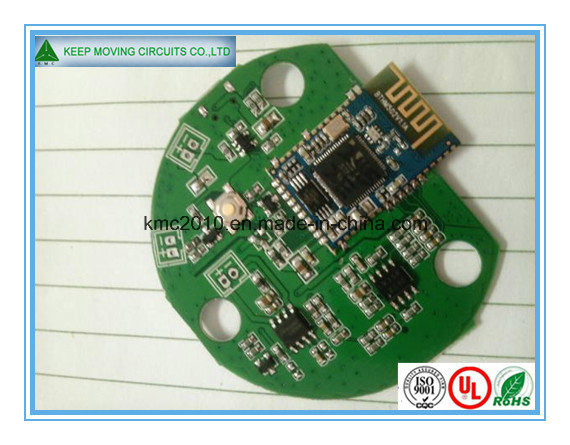

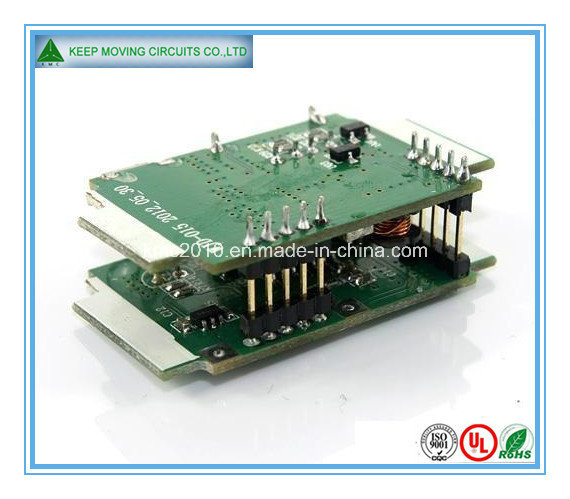

Fr4-Electronics PCB Board Assembly PCBA

Fr4-Electronics PCB Board Assembly PCBA
Price: US $ 8.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: PCB Assembly
Material Type: Fr-4/Htg150-180 Fr-4/Cem-1/Cem-3/Aluminum
Board Thickness: 0.2mm--4.0mm
Minimum Trace Width: 0.075mm
Min Space Width: 0.075mm
Min Drilling Dia: 0.2mm
Pth Copper Thickness: 0.4-2mil(10-50um)
Tolerance Of Eteching: ± 1mil(± 25um)
Surface Finish/Plating: HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gol
HS Code: 8534009000
Tg Value: 130, 135, 140, 150, 170, 180
Metal Coating: Gold
Mode Of Production: SMT
Layers: Multilayer
Base Material: FR-4
Certification: SGS
Customized: Customized
Condition: Used

Product Description

Product Description
Quick lead time PCBA wih high quality
RoHS complaint PCB
Lead free technology
UL approved

Welcome to Keep Moving Circuits Co., Ltd

1. Who we are

PCB ManufacturerFlexibilityQuality
   Keep Moving Circuits, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 30 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us.   Keep Moving Circuits is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service.   Keep Moving Circuits fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment.

2. Support
Keep Moving Circuits aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.

Layers1-30
layers
Min Board Thickness(2-layer)0.2mm
Max Board Size635 × 1100mmMin Board Thickness(4-layer)0.6mm
Min Board Size20 × 30mmMin Inner-layer Thickness0.1mm
Min Trace0.1mmMin Annular Ring0.1mm
Min Space0.1mmMin Hole Location Tolerance±0.075mm
Min Hole Size0.2mmMin Hole Size Tolerance±0.05mm
Board Warp≤ 1°Min Outer Dimension Tolerance±0.1mm
Solder MaskGreen, Yellow, Red, Black, Blue, White
Surface FinishHAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP
Board MaterialFR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic
Acceptable fileGerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD
CAM softwareGenesis, CAM350

3. PCB + Assembly
More and more of our existing PCB customers are now asking us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' requirements, Sunthone develops from a PCB manufacturer to a one-stop PCBA service provider, including PCB assembly, components sourcing, stencils, cable assembly and final product assembly and testing.
Available Services

  PCB Manufacturing

  PCB Assembly

  Components Sourcing

  SMT Stencils

  Cable Assembly

  PCBA Testing

  Final Product Assembly
Assembly Technologces

  SMT

  THT

  Reflow Soldering

  Wave Soldering

  Hand Soldering

  Repair/Rework

  Mixed Assembly Technologies

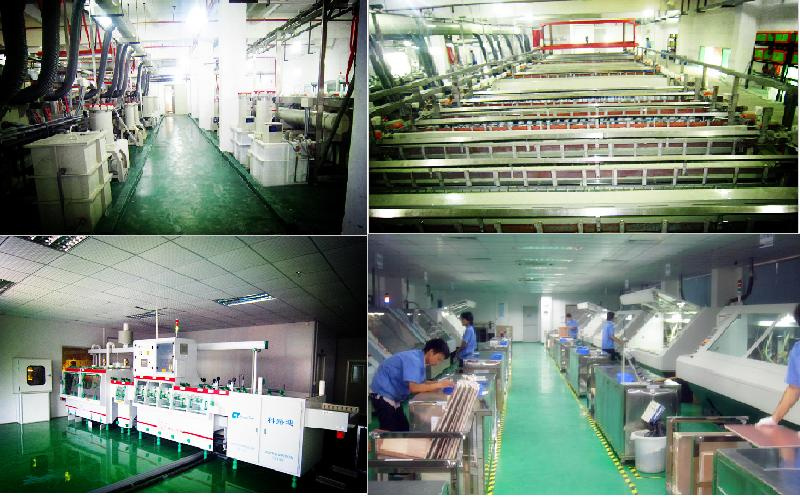

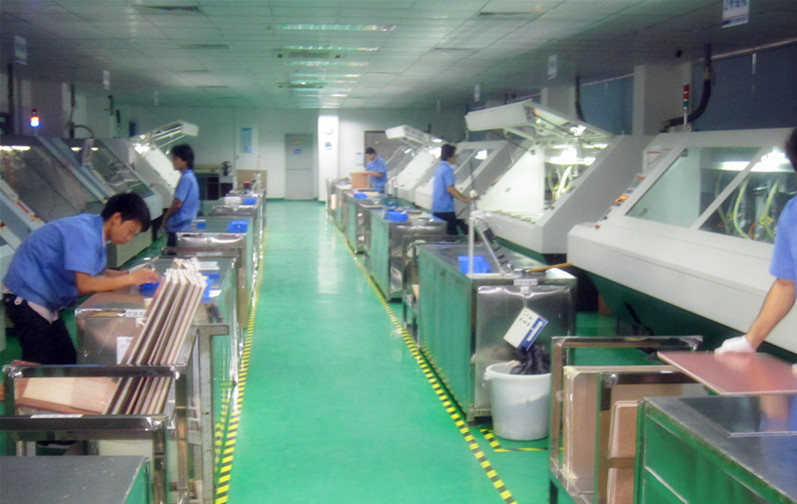

4. Equipment


KEEP MOVING CIRCUITS Co., Ltd was founded in August, 2000 a hi-tech enterprise, specializes in manufacture, supply and export of high precision FR4 1 layer, 2layer and multilayer PCB. Since. 2014, company core business are FR4 double sided and Multilayer, middle up to high volume PCB orders. For offering all customers better service, now also can offer flexible PCB and rigid-flexible PCB, High Frenquency and Metal Core PCB. Through the hard work and dedication of all employees during the past years, we are already one excellent PCB manufacturer in China. Our company covers over 15000 square meters modernized workshop area and a complete set of advanced production equipment, with about 500 fixed employees and more than 100 of senior management, craftsmen and engineers., a group of quality talents with over ten years of experience in PCB industry. Since 2017, our company is capable of producing more than 20000 square meters PCB and delivering over 8000 varieties monthly.

Our products are widely used in LED lights products, communication, network, digital products, industrial control, medical care, aeronautics & astronautics, defence & military fields, etc. With the scientific management, stable product quality, exquisite technique and professional service, we has won favor and recognition throughout the world, including China mainland, Taiwan and Hongkong, USA, Canada, Germany, Italy, Switzerland, UK, France, Holland, Poland, Czech etc. With market as orientation, quality and efficiency as guarantee, we strives to constantly improve customers' satisfaction by providing them with best quality PCB and services. We expects to make its contribution to the constant development of the electronics industry under the support of customers. We warmly welcome your visit and cooperation.
