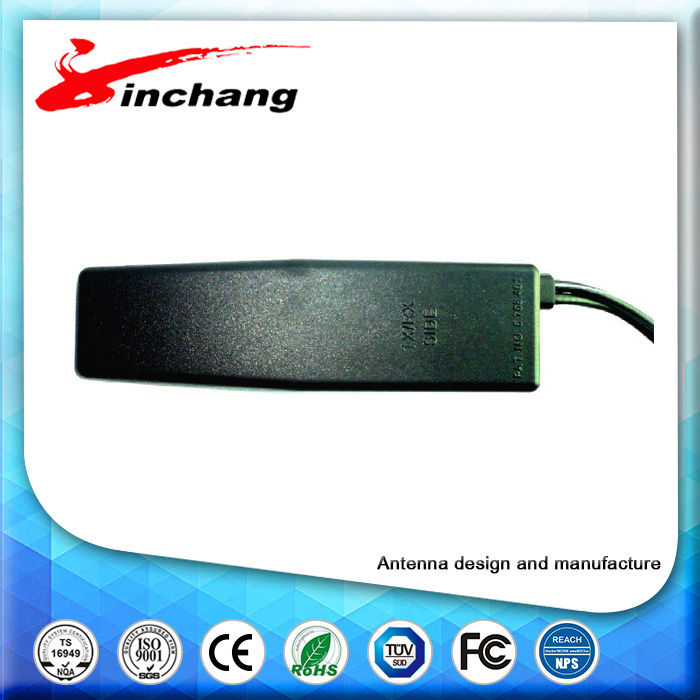

Free Sample High Quality GPS GSM/GPRS Combo Antenna

Name: Free Sample High Quality GPS GSM/GPRS Combo Antenna
Brand: all-electronics-online.com
SKU: 711645655
Availability: InStock
Rating: 5 (82 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Item Specifications
GPS Antenna Dielectric
Antenna
Center Frequency 1575.42±1MHz
Band Width CF±5MHz
Polarization RHCP
Gain 2dBic(Zenith)
V.S.W.R <1.5
Impendance 50Ω
Axial Ratio 3dB(max)
LNA Gain 28±2dB
Noise Figure <1.5
Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R <2.0
Supply Voltage 2.2~5V DC
Current Consumption 5~15mA
GSM Antenna Frequency Range 824~960MHz/1710~2170MHz
V.S.W.R <2.0
Polarization Linear
Gain 2.5dBi
Impendance 50Ω
Mechanical Cable RG174
Connector SMA/MCX/FAKRA or others
Radome Material ABS
Mounting Method Adhesive
Environmental Operating Temperature -40ºC~+85ºC
Relative Humidity Up to 95%
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant

Prod Model:	JCB303
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	97x36x16mm
Cable:	Rg174 3m/5m or Others
Connector:	Sma/Smb/Mcx or Others
Mounting:	Magnet/Adhesive/Screw
Usage:	Car Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5
Material:	ABS

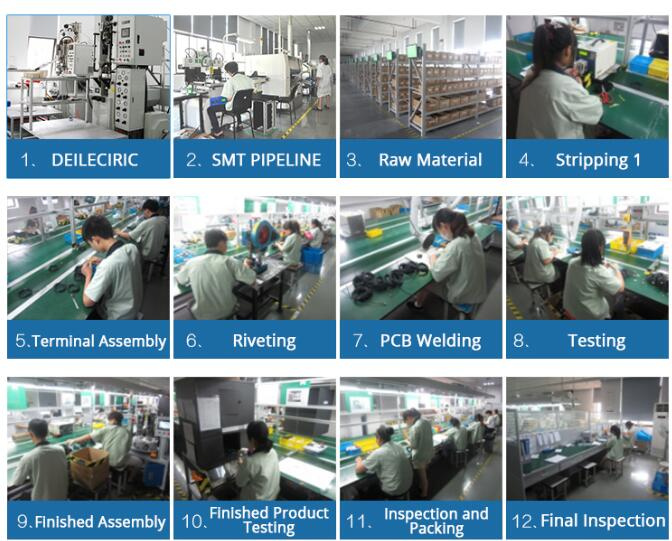

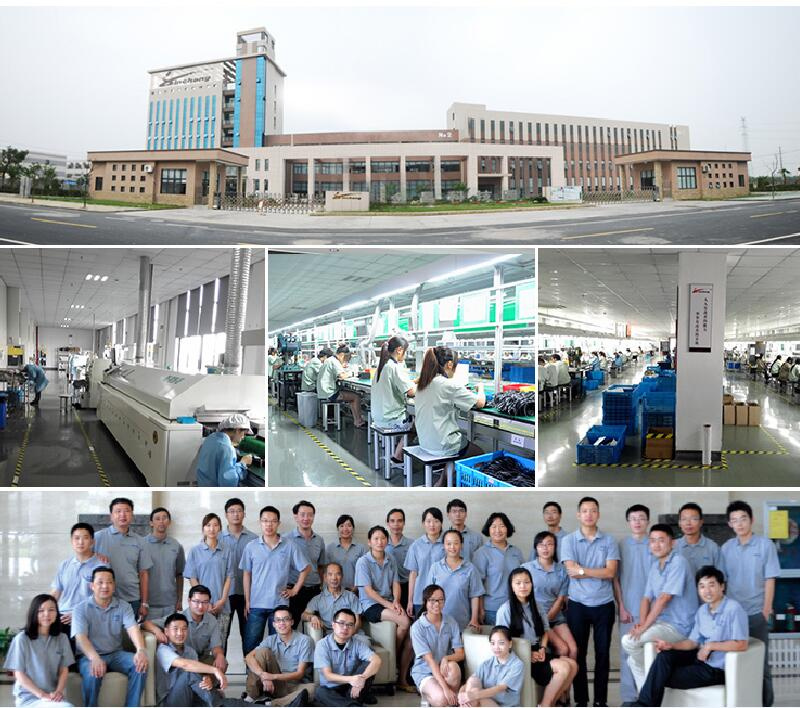

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
