| Prod Model: |
PV1800 |
| Color: |
Red |
| Rated Power: |
2000va |
| Max Soalr Charge Current: |
50A |
| AC Power: |
230VAC |
| Max Charge Current: |
80A |
| Remote Monitor: |
WiFi/GPRS Optional |
| MPPT Efficiency: |
98% |
| Display: |
LED +LCD |
| Working Mode: |
Sub |
Product Description

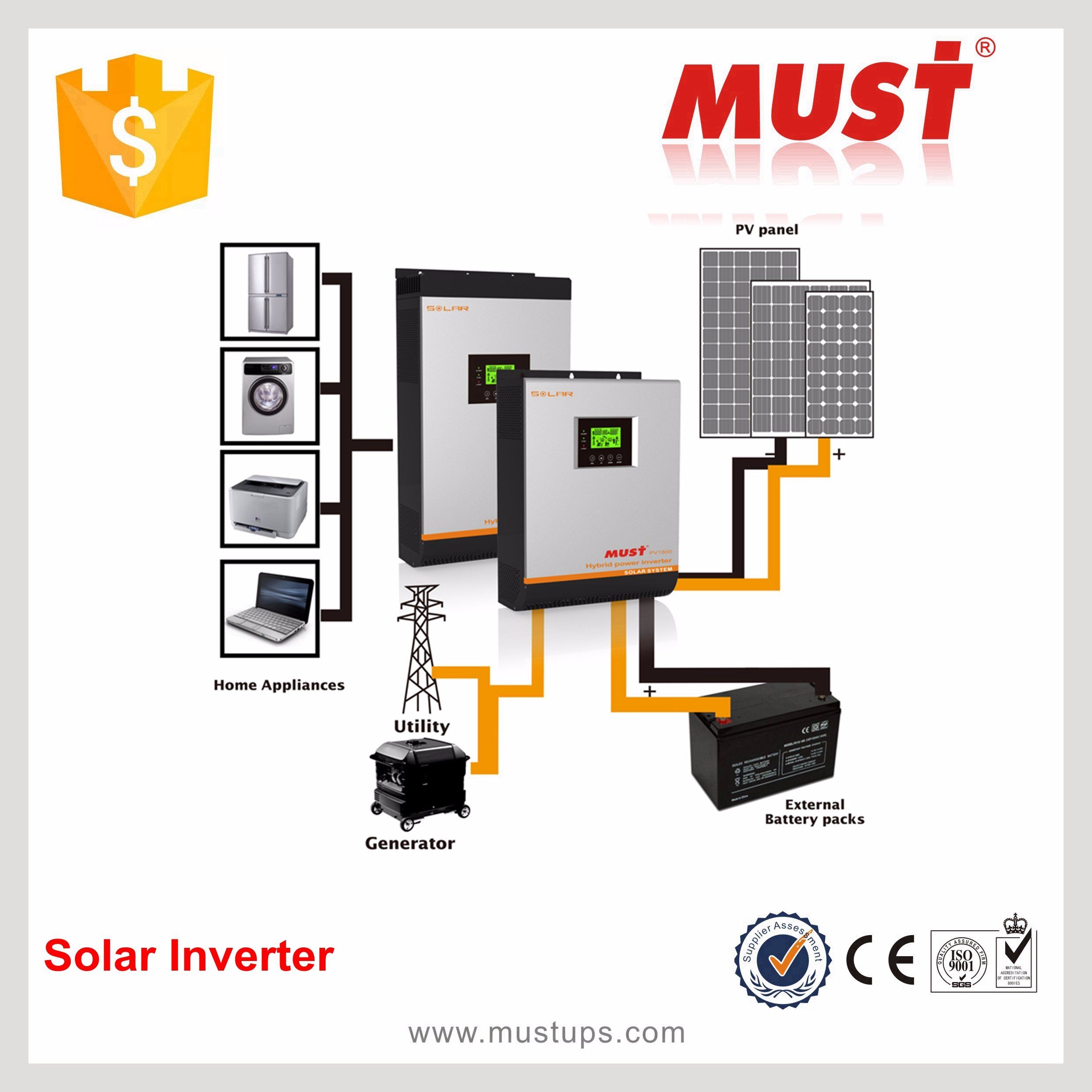

frequency power inverter hybrid grid tie inverter
Features
1.Multi -function inverter charger ,combing function of inverter,solar charger controller
2.Pure sine wave inverter with charger
3. Selectable charging current based on applications
4.Selectable input voltage range for home appliances and personal computers
5.Configurable AC/solar input priority via LCD setting
6.Compatable to mains voltage or generator power
7.Parallel operation with up to 4 units only available for MUST PV18-4K/5K
8. Auto restart while AC is recovering
9. Cold start function
10.Overload and short circuit protection
11.Smart battery charging design for optimizing battery
Specifications
| MODEL | PV18-1K | PV18-2K | PV18-3K | PV18-4K | PV18-5K |
| Default Battery System Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC |
INVERTER
OUTPUT | Reted Power | 1000VA/
800W | 2000VA/
1600W | 3000VA/
2400W | 4000VA/
3200W | 5000VA/
4000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Waveform | Pure sine wave |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% |
| Inverter Efficiency (Peak) | 90% | 93% |
| Transfer Time | 10ms(For Personal Computers)
20ms(For Home Appliances) |
AC
INPUT | Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| BATTERY | Nominal voltage | 12VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC |
| Overcharge Protection | 15VDC | 30VDC | 60VDC |
SOLAR
CHARGER
&
AC CHARGER | Maximum PV Array Open Circuit Voltage | 30VDC | 60VDC | 105VDC |
| Standby Power Consumption | 1W | 2W | 2W |
| Maximum Solar Charge Current | 50A | 50A | 50A |
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A |
| Maximum Charge Current | 50A | 110A |
MECHANICAL
SPECIFICATIONS | Dimension,WxHxD(mm) | 240×316×95 | 272×355×100 | 297.5×468×125 |
| Net Weight(kg) | 5 | 6.4 | 6.9 | 9.8 |
| OTHER | Humidity | 5% to 95% Relativ Humidity (Non-condensing) |
| Operating Temperature | 0ºC-55ºC |
| Storage Temperature | -15ºC-60ºC |
Parallel Function
Why Choose MUST ?
a.4 years gold credit supplier on Alibaba
b.11years UPS and Power Inverter export experiences
c.6 years UPS and Power Inverter manufacturer experiences
Customers Service:
(1)Warranty :
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
(2)Lead time:
a.sample orders (1-2pcs)will be delivered from our factory within 7working days .
b.Bulk orders will be delivered from our factory within 25 working days.
(3)shippment :
By sea ,airway , EMS, DHL, FedEx, TNT, UPS or other express.
(4)Payment: T/T (Telegraphic transfer), and Western Union
Contact us:
Must power produce green stable high quality ups,inverter ,solar system,we
light your life,light up the world,we grow up everyday,join us !!
Hedy
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
