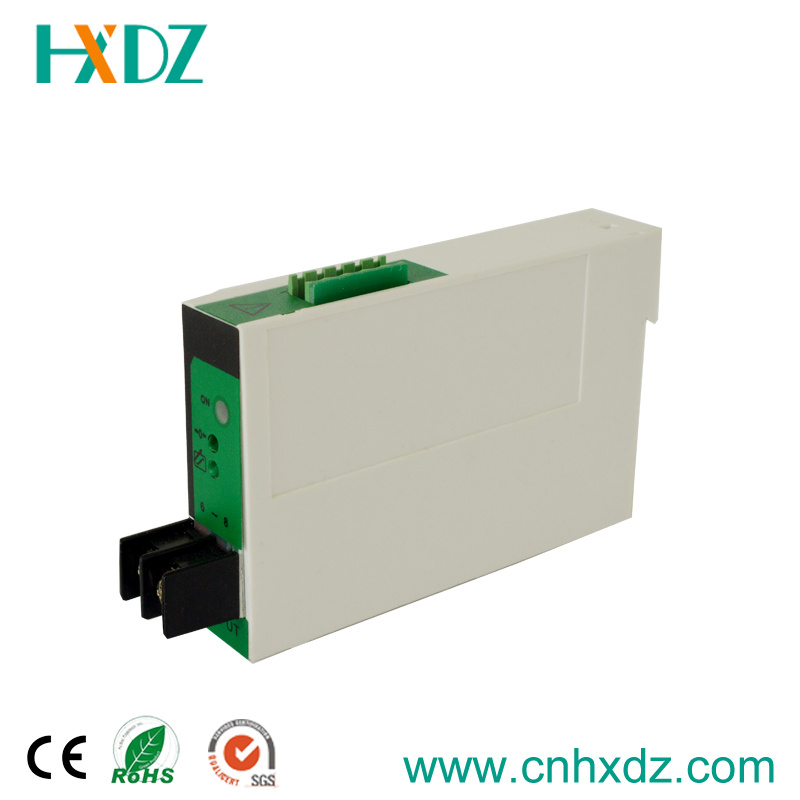

Frequency Signal to Voltage or Current Signal Transmitter

Name: Frequency Signal to Voltage or Current Signal Transmitter
Brand: all-electronics-online.com
SKU: 757841645
Availability: InStock
Rating: 4.9 (39 reviews)

Price:	US $ 12.59/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HXDZ-29
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
AC Input:	45-55Hz,etc.

Product Description

1. Product overview:
It is a meter which can transmit electrical parameters in the power grid into DC analog signal or digital signal, the product can be applied to electricity collection of various control systems, building automation, distribution network automation, community electricity control, industrial automation, intelligent distribution board, switch cabinet.
2. Product feature:
1. Usage: It is a meter which can transmit three-phase power factor parameters in the grid into linear DC analog signal through isolation.
2. Measurement: three-phase power factor transmission output
3. Precision: 0.2%,0.5% (according to the use of precision)
4.Output:0~20mAdc ,4~20mAdc,0~10Vdc, 0~5Vdc,etc. Analog signal.
3. Technical indicators

AC input	45-55Hz,etc.
Input load	Voltage transformer CT:≤0.1VA
Allowable overload	Continuous: 2 times Instant: voltage 2 times/s
precision	0.5%
Response time	≤500ms
Output voltage	0~10Vdc, 0~5Vdc(load resistance=input voltage/10mAdc)
Output current	0~20mAdc ,4~20mAdc(load resistance≤510Ω)
Output wave	≤0.5% RO peak to peak value
Working environment temperature and humidity	0~50ºC/<80% relative humidity(no condensation state)
Storage environment temperature and humidity	-20~70ºC/<70% relative humidity(no condensation state)
Use of power	AC/DC 85V ~ 265V, 50Hz
Isolation	input/output/power supply /case
Power consumption	DC about 3W,AC about 4VA
Sheathing material	ABS fireproof material
Weight	About 300g
Compression strength	AC2kVrms/min
Isolation resistance	>100MΩ when DC500V
dimension	135(L)× 23(W)× 92(H)mm
Installation mode	35mm standard lead rail
