Front Right Left Rabs Wheel Speed Sensor Brakes for 2003 2005 Ford Lincoln

1.Product Description

FRONT RIGHT LEFT RABS WHEEL SPEED SENSOR BRAKES for 2003 2005 F ORD

L INCOLN

This is Brand New & High Quality Aftermarket Product. Meet the professtional specification as OEM parts, for stable performance & durable service.

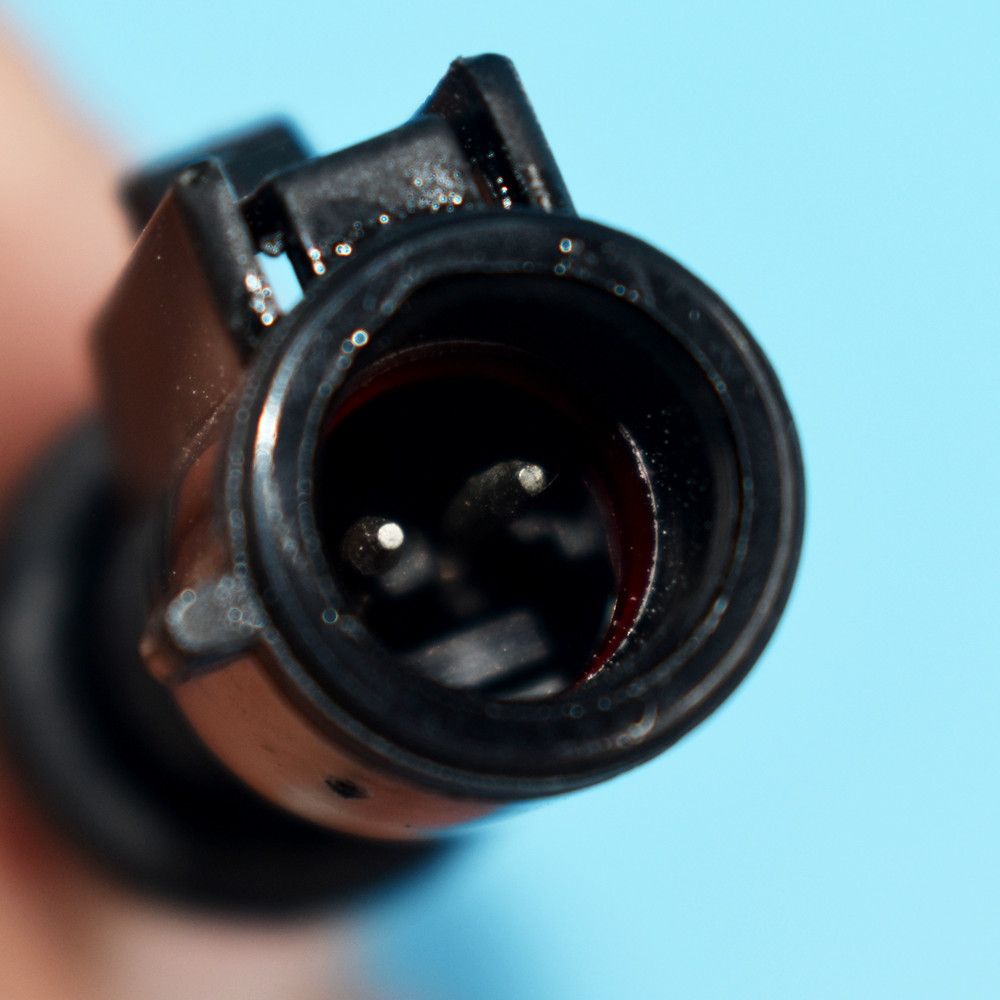

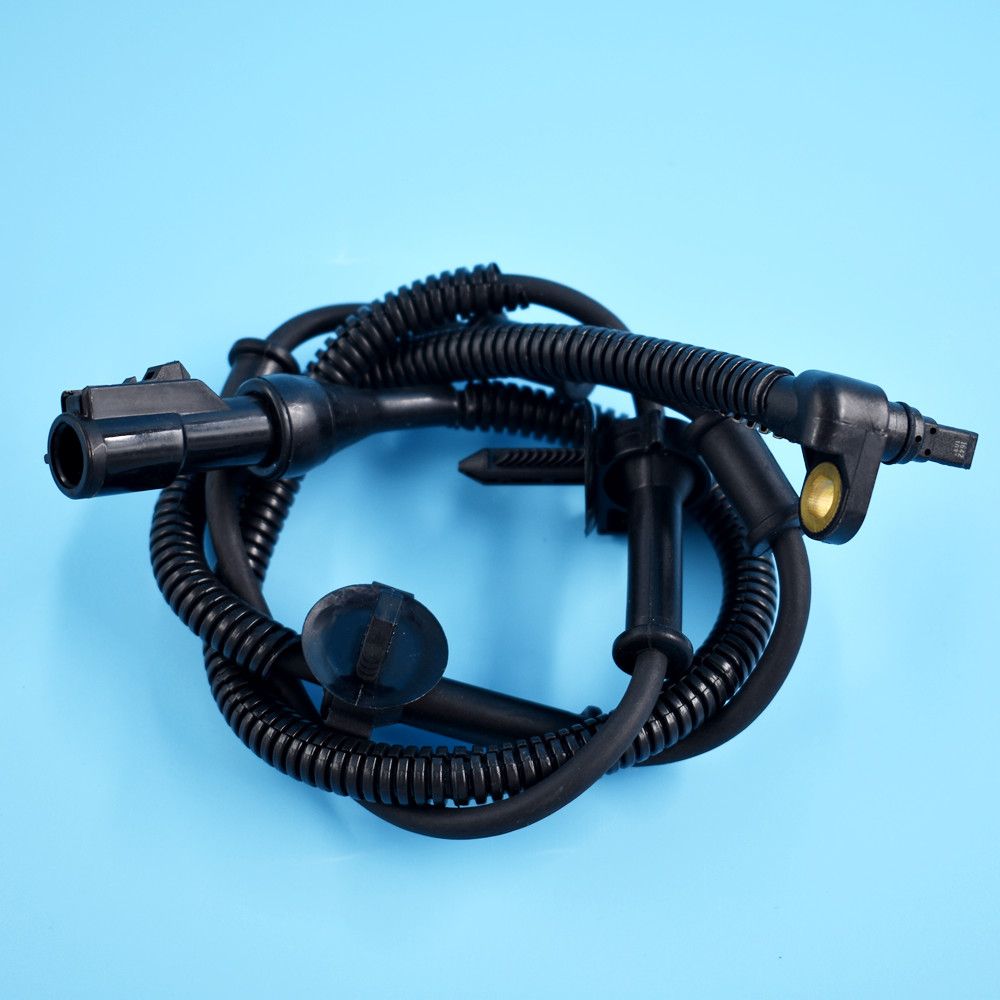

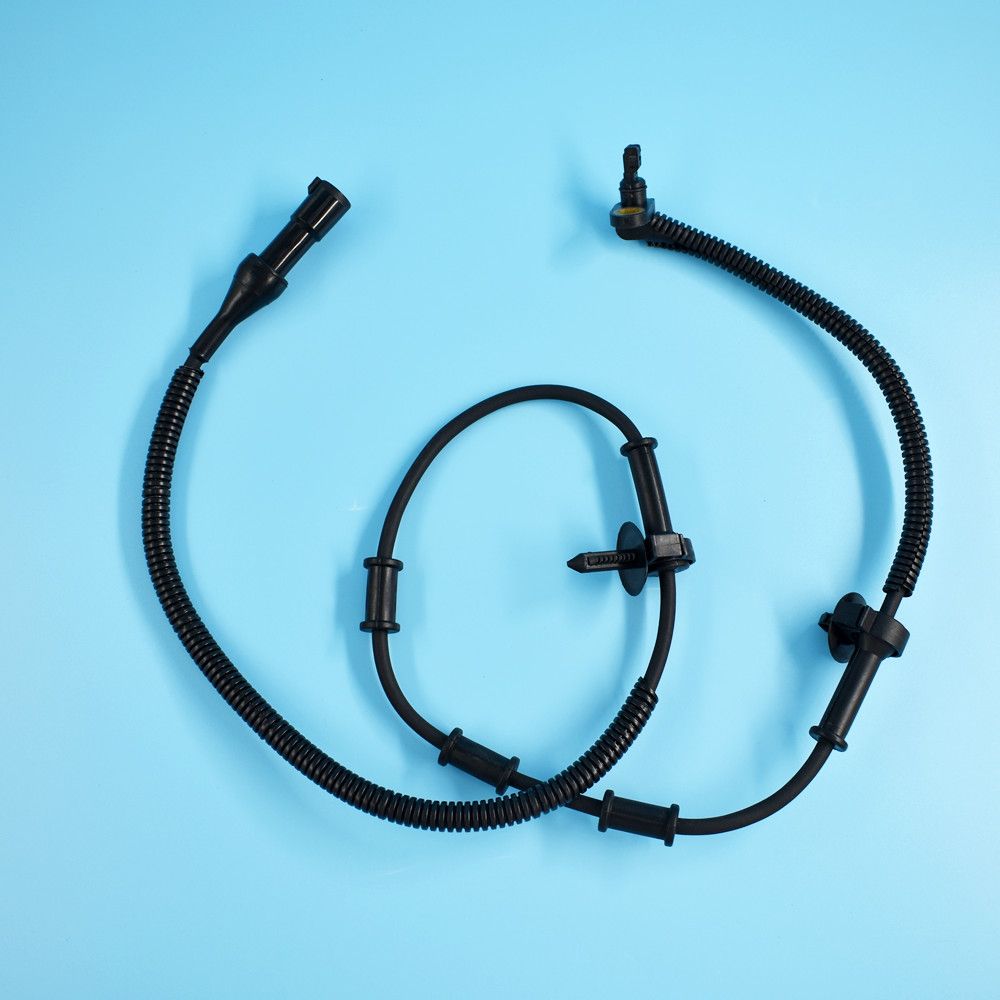

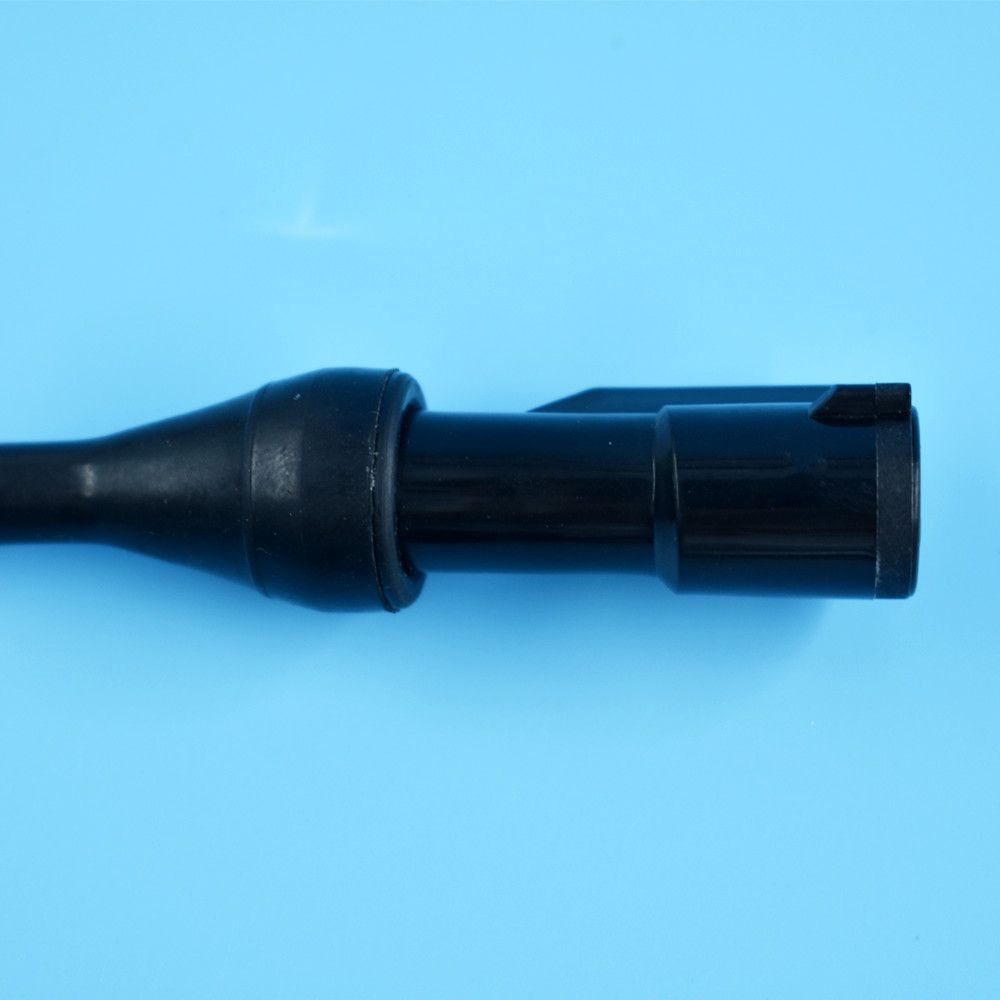

ABS Wheel Speed Sensor;the one is front left or right.
OEM: 3C5Z2C204AA 3L2Z2C204AA

Installation method:

1) wheel speed sensor wiring bracket is mounted to the control arm and the bottom plate of the vehicle.
2) wheel speed sensor is mounted to the steering knuckle. After the wheel speed sensor wiring bolts to 10lbf ft stent (16N - M), the festival will turn to tighten the fixing bolt to 16 LBF - FT (22N·m).
3) wheel speed sensor wiring connector pass through the hole in the floor, and the joint wiring connector connect again after receiving the suspension, tighten the plastic clip.
4) check the wheel speed sensor gap: (1) Check whether there is damage to the wheel pulse signal generator with the teeth. (2) Rotating drive shaft with
hand, measuring gap between wheel speed sensor and a pulse generator wheel. the drive shaft is to rotated a circle, check the gap. The standard clearance is 0.02-0.04in (0.5-1.0mm). (3) If the gap exceeds the standard value, check the steering knuckle and pulse generator wheel have been out of shape.
5) Install the rear wheel and fall under the vehicle.
6) To tight the wheel nuts to 80 LBF - FT (110N - M).
7) picking up the battery negative connection.
8) Turn the ignition switch to "on" (open) position, but do not start the engine. Open the anti lock braking system indicator. Start the engine and check whether the indicator closed. If the engine rotates, flashing lights, is not bright or not, it must be diagnosised about fault of system.
9) To install the trunk lid once again.

2.Compatible

3.Packing&Shipping

Standard Carton packing, PP bag - Box packing-skin packing-Blister packing-Neutral packing...etc,
Or as customer`s special request.

Standard Carton packing, PP bag - Box packing-skin packing-Blister packing-Neutral packing...etc,
Or as customer`s special request.

Air Shipping(DHL FEDEX UPS EMS) will be take 5-7 work days.
If it is our stock parts, we can ship out winthin 24 hours after we received the payment.
If it is customized goods ,then we need about 7-10 work days to prepare and produce.
Normally ,It will take 15-20 work days and shipped  Pallet & Container by Sea .
When you need a large quantity for each item, we usullaly need ship by sea to save your shipping cost .usually,we use pallet LCL,and container FCL.
