| Prod Model: |
HG8310M |
| User Network Interface: |
1ge |
| Product Name: |
Hg8310m Gpon Ont |
| Sevice: |
Internet |
| ONU Type: |
Gpon Ont |
| Transfer Rate: |
10/100/1000Mbps |
| Network: |
Wireless |
| Wavelength: |
Tx 1310nm, Rx 1490nm |
| Fiber Interface: |
SC/PC |
| DC Power: |
12V 1A, External AC-DC Power Adapter |
| Certification: |
GS |
| Condition: |
New |
| Type: |
Optical Network Terminal |
Product Description
FTTH HG8310M GPON ONU ONT WITH 1GE port Same as HG8010H
Product Attributes
Technical items | Descriptions |
Fiber port | 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/PC |
RX sensitivity | <-28dBm (1490nm) |
WLAN | IEEE802.11b/g/n,300Mbps, a built-in antenna |
LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
Throughput | Throughput can reach 900Mbps or more |
| | |
DC power | 12V 1A, external AC-DC power adapter |
Button | Reset, power |
Power | ≤8W |
Operation | Working temperature: -5-+55ºC working humidity:10-90%(non-condensation) |
Storage | Storage temperature: -30ºC-+60ºC storage humidity: 10-90%(non-condensation) |
Dimension | 130*105*30mm(length*width*height) |
Net weight | ≤0.2Kg |

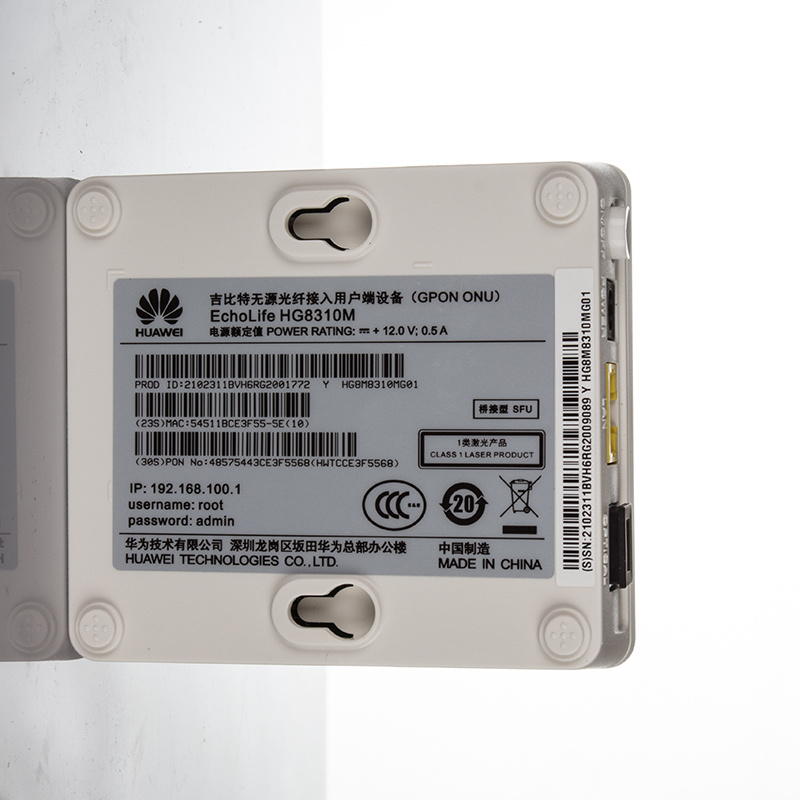

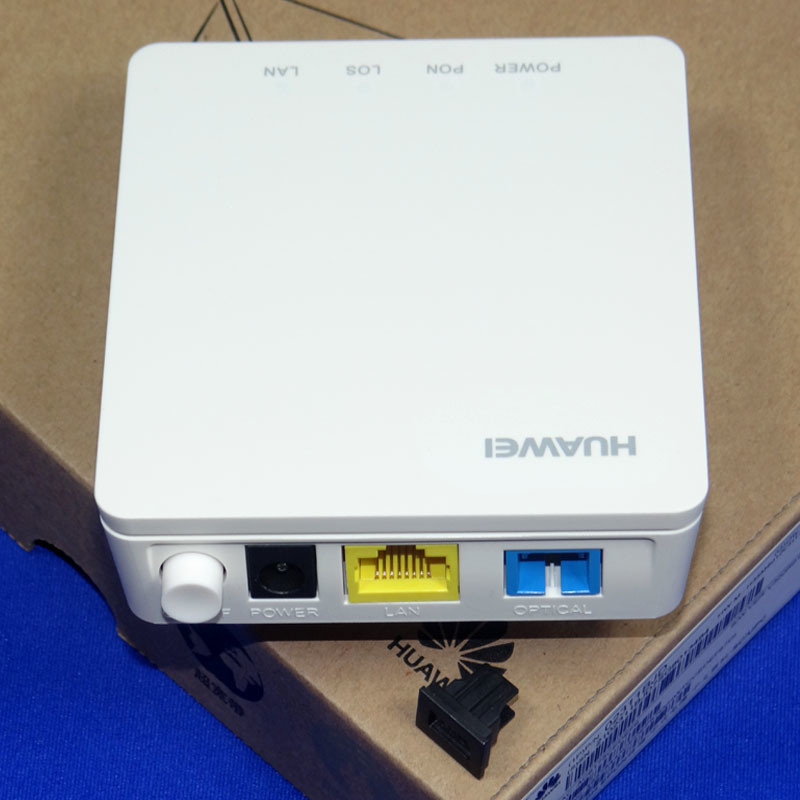

HG8310M
The Echo Life HG8310M is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8310M provides one GE Ethernet port. The HG8310M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
Features:
Port: 1GE.
Plug-and-play (PnP): Internet and IPTV services can be deployed by one click on the NMS and on-site configuration is not required.
Remote diagnosis: Remote fault locating is implemented by the precise positioning feeder and drop cables, and identifying problems of software and hardware.
High speed forwarding: GE line rate forwarding.
Applications & Benefits
High-performance forwarding capability provides an optimal terminal solution and future oriented service supporting capabilities for FTTH deployment.
Plug-and-play makes service provisioning easier and more quickly.
for Huawei GEPON ONT
HG8010 EPON ONT, 1*LAN English Firmware
HG8310 EPON ONT, 1*LAN English Firmware
HG8110 EPON ONT, 1*LAN+1*Voice English Firmware
HG8120 EPON ONT, 2*LAN+1*Voice English Firmware
HG8240 EPON ONT, 4*LAN+2*Voice English Firmware
HG8346R EPON ONT, 4*LAN+2*Voice+WIFI English Firmware
HG8245 EPON ONT, 4*LAN+2*Voice+WIFI English Firmware
for Huawei GPON ONT
HG8310M GPON ONT, 1*LAN English Firmware
HG8010/HG8010C GPON ONT, 1*LAN English Firmware
HG8311/HG8110/HG8110F GPON ONT, 1*LAN+1*VOICE English Firmware SIP
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE English Firmware SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE English Firmware SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE English Firmware SIP
HG8240/HG8240H GPON ONT, 4GE+2VOICE English Firmware SIP
HG8345R internal antenna GPON ONT, 4FE+WIFI (internal antenna)English Firmware SIP
HG8345R external antenna GPON ONT, 4FE+WIFI (external antenna)English Firmware SIP
HG8546M GPON ONT, 1GE+3FE+VOICE+WIFI, English Firmware SIP
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (internal antenna)English Firmware SIP
HG8346R external antenna GPON ONT, 4FE+2VOICE+WIFI (external antenna)English Firmware SIP
HG8245C2 GPON ONT, 2GE+2FE+2VOICE+WIFI English Firmware SIP
HG8245 external antenna GPON ONT, 4GE+2VOICE+WIFI ( external antenna)black color English SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI English Firmware SIP ONT
HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV English Firmware SIP
Packaging
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping
1. We shipping via DHL FedEx TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
After-Sales Service
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
Company Information
We are HuNan ZiKun Information Technology Co., Ltd, Our products mainly include the optical signal transmission and access, signal transmission and access, photoelectric signal conversion and photoelectric signal and so on.We are now the agent of well-known international brands such as HUAWEI, ZTE etc. The products are exported to Europe, America, Southeast Asia, the Middle East as well as Japan, Korea and other neighboring countries
We will constantly improve our service and quality to create a win-win situation. If you have any question ,please contact me.
We supply different kinds of products with high quality and favorable price. We're pleased to get your inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Hunan zikun information technology Co., Ltd. is a provider of information and communication solutions for optical communication technology and video processing technology. The company can provide users with leading optical communications products and IPTV, system solutions and professional services at home and abroad who dedicates to create the greatest value for customers. Currently the company's main business scope includes DWDM, gpon, epon, switches, IPTV, eoc, passive devices and other products, those are widely used in radio and television cable network, triple play and safe urban security, road facilities, airports, ports, securities industry, tourism scenic area, school education industry, public security law and politics, medical and health, intelligent community and large and mediumsized enterprises ect...We will make our all efforts to make you succeed and gain benefit from the cooperation with us, as the customers'success is our success. And through our joint efforts, continue to contribute to the development of human science and technology.
