Fuel Level Sensor capacitive high resolution for Fuel Consumption Monitoring

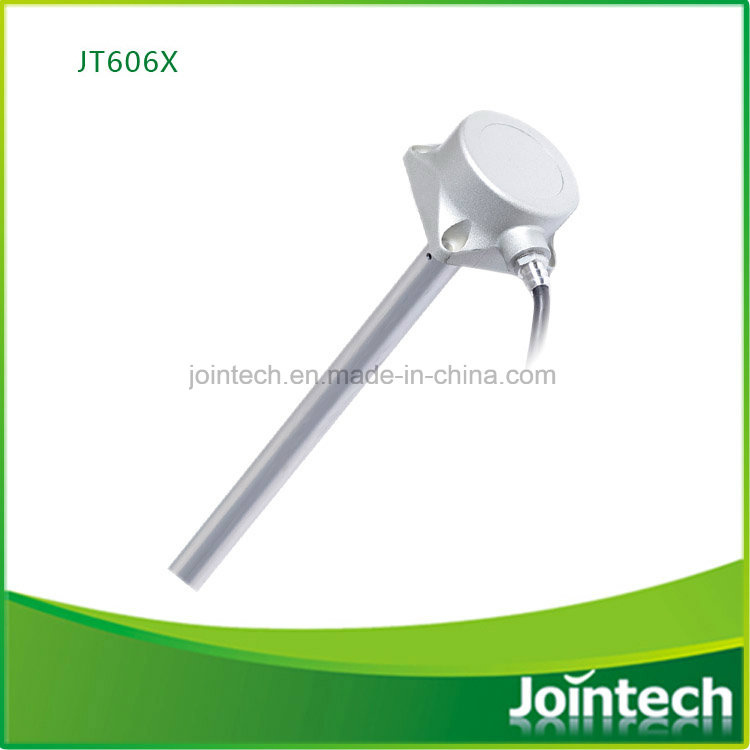

Model : JT606X

This fuel monitoring system supported by fuel level sensor JT606X, which is a capacitance type of high precision.
During the fuel consumption monitoring system, the accuracy is 0.5% and the resolution is 1mm, Voltage type, Current type and Digital type are available.

Our whole Fuel consumption Monitoring system, includes 3 parts:

1. Fuel level sensor: Our capacitance fuel sensor with high accuracy 0.5%, in addition, it can be cut according to the depth of fuel tank, we can provide different types of fuel sensor: Digital, analog, voltage, the resolution is 1mm.

2. Hardware: Our GP series can monitor fuel sensors for detecting fuel consumption.

3. Fuel consumption system Software: Data will be displayed as curve real time. The manager can download the history data from the server as analysis report and curve with speed and mileage also supporting the report of analysis output by PDF. Excel format, from which you can clearly know where the fuel expended, under what conditions, if there is someone steel the fuel or not, all of the information will be displayed in a simple way.

Features of fuel level sensor JT606X:

NO.	Item	Performance parameters
1	Collection principle	Capacitance
2	Size	100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) There have 3mm blind area of bottom fuel sensor can't be detected.
3	Electrical parameters	DC: 4-70V, better DC: 4-36V (Over voltage protection, reverse Voltage protection)
4	Power Consumption	0.200W/5V,0.286W/12V,0.571W/24V
5	Signal output	RS232,RS485, 0-5V
6	Communication baud	2400,4800,9600,57600,115200
7	Resistance ouput	10~500Ω
8	Detection of liquid type	Diesel, biodiesel, kerosene, etc.
9	Resolution	Less than 1mm
10	Accuracy	±0.5%
11	Use of the environment	Work temperature:-40ºC~+75ºC
11	Use of the environment	Save temperature:-40ºC~+85ºC
12	Humidity	0~99%
13	Detector material	Aluminium alloy
14	Protection class	IP67

Prod Model:	JT606X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fuel Tank Hegith:	100~2500mm
Accurancy:	0.5%
Remote Monitor:	Fuel Level, Fuel Percentage
Control Fuel:	Analysis Fuel Consumption by Report
Patent Design:	Flange for Easy Installation
Anti-Explosion:	Yes, Passed Anti-Explosion Certification
Output:	Digital RS232, RS485
Analog:	0-5V
Input Voltage:	4-70V
Type:	Capacitive
