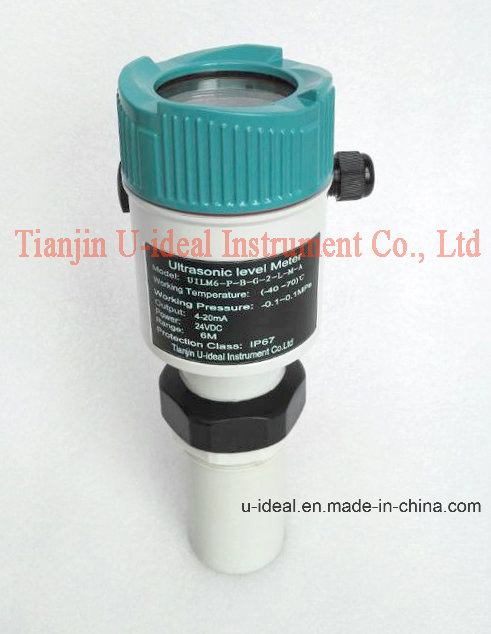

Fuel Ultrasonic Level Sensor for Water, Oil, Solid
| Price: |
US $ 378-459/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UILM |
| Measuring Range: |
0-70m |
| Signal Output: |
4-20mA, Hart, RS232, RS485 |
| Process Pressure: |
-0.1 - 4.0MPa |
| Explosion Proof Grade: |
Exia LLC T6 GB |
| Output Signal Type: |
4-20mA, Hart, RS232, RS485 |
| Sensitivity: |
0.1-0.2% |
| Measuring Medium: |
Liquid, Solid |
Product Description
Application
Liquid level or material level measurement

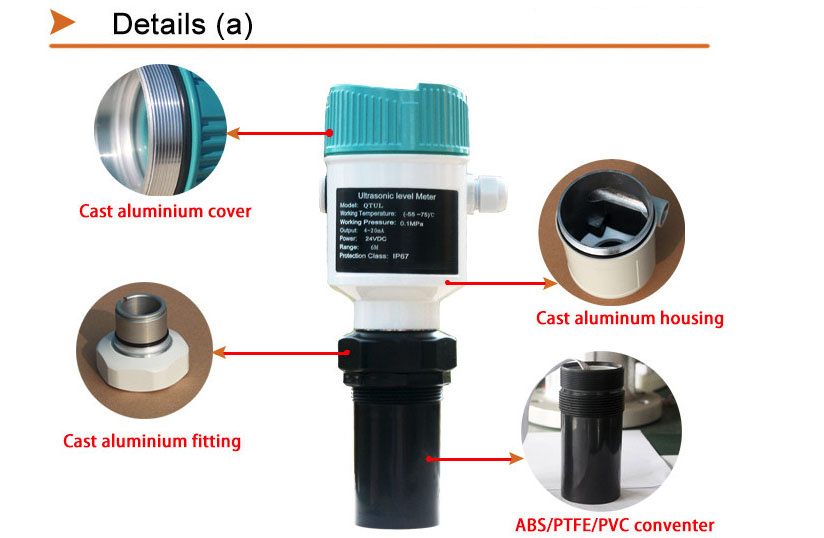

Features1. Integrated design, installed conveniently;
2. Protected in the excessive voltage and current;
3. Protected in the thunder and lightning;

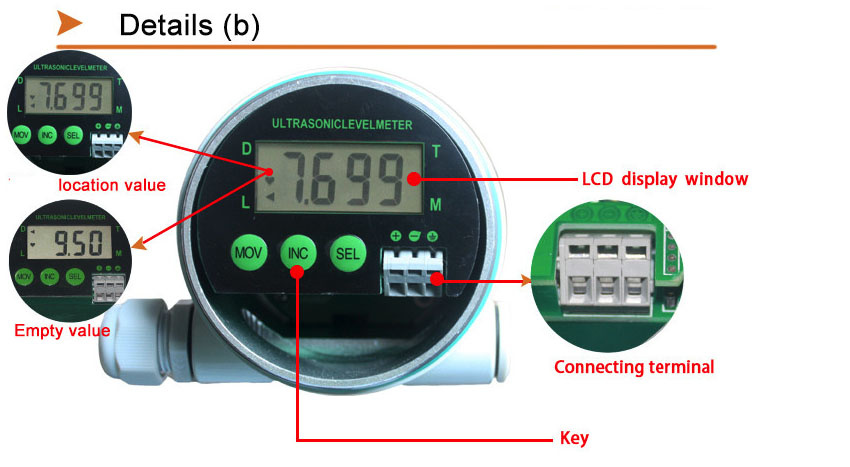

4. The big show window of LCD is easy to debug and observe;
5. Over-voltage over-current protection, lightning protection;
6. Advanced since the clamp type terminal, to ensure that wiring never loose;
7. Intellectual signal treatment technology, guarantee that the instrument meets various kinds of operating occasion;
8. All plastic probe, acid and alkali resistant, adapt to bad environment;
Product Instruction Model
Parameters |
UILM4 |
UILM6 |
UILM8 |
UILM12 |
UILM20 |
UILM30 |
| Application | Industrial Level Measurement |
| Measuring Range | liquid:0.2-4 m | liquid:0.25-6 m | liquid:0.3-8 m | liquid:0.5-12 m | liquid:0.8-20 m | liquid:1.2-30 m |
| Blank distance | 0.20m | 0.25m | 0.30m | 0.50m | 0.80m | 1.2m |
| Process Connection | G2 Thread | M95X2.0Thread |
| Energy Transducer Material |
ABS,PVC,PTFE |
| Temperature | -40~ 75 Deg C (LCD:-20ºC~ +70ºC) |
| Temperature compensation |
The whole range with automatic compensation |
| Process Pressure | ±0.1MPa |
| Precision | 0.2% of actual range |
| Signal output | 4-20mA(Option: RS485/HART/Alarm) |
| Power Supply | DC20V~32 ≥30mA |
| Display Resolution Ratio |
1mm |
| Mode of Indication | 4 Digit LCD |
| Cable Diameter | Ø 6-12mm |
Single Wire Diameter |
Ø 0.5-1.78mm |
| Cable Entry/Seal | M20/PG13.5 |
| Beam Angle | 8º(3db) |
| Measurement Cycle | 1.5 second |
Model Selection | License |
P Standard Type(Non ex-proof)
I Intrinsically safe (Exia IIB T6 Ga) |
| Energy Transducer Material/Process Temperature/Protection Grade |
A ABS/(-40-75)ºC/IP67
B PVC/(-40-75)ºC/IP67 C PTFE/(-40-75)ºC/IP67 |
| Process Connection/Material |
G Thread
D Flange /PP |
| Electronic Unit |
- 4~20mA/24V DC Two Wire
- 4 20mA/24V DC /HART Two Wire
- 4-20mA/24VDC/RS485 Modbus Four Wire
- 4-20mA/24VDC/Alarm Output Four Wire
|
| Shell / Protection Grade |
| L Aluminum / IP67 |
| Cable Entry |
M M20*1.5
1/2 NPT |
| Programmer/Display |
| A With Display |
