Chemical Composition
Composition |
SiO2 |
Al2O3 |
CaO+MgO |
Na2O |
K2O |
Others |
wt% |
71 |
2 |
8 |
16 |
2 |
1 |
Physical Characteristics
Coefficient of mean linear thermal expansion |
Softening point
0C |
Annealing point
0C |
Density(g/cm3) |
Light transmiting |
98.0X10-7/0C |
695 |
514 |
2.47 |
(546nm)92% |
Chemical resistance:
Class of chemical stability: water 3
Class of chemical stability: Acid 1
Class of chemical stability: alkaline solution: 2

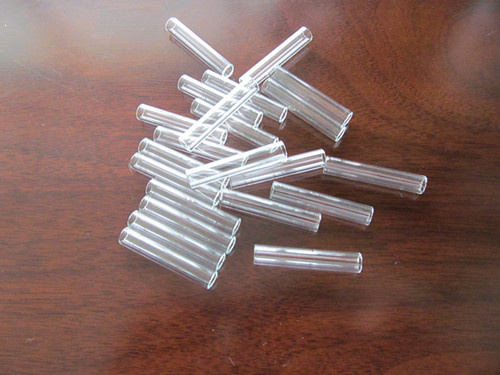

Soda lime glass tube size:
It is available in long lengths or cut pieces:
Outer dia.: 2mm- 35mm
Wall thickness: 0.4mm- 1.7mm
Length: 0.85m, 1.25m, 1.40m, 1.60m and 1.70m
OEM is acceptable
Applications:
Soda lime glass is a low softening point glass which is widely used for blown ware applications:
Engineering: heat exchanger, glass apparatus, instruments/barometers/aerometers/sightglasses, other engineering
Renewable energies: Photovoltaics, solar collectors
Signal intensifier, detectors& (fibre-) optics: transmitter and x-ray tubes, other fibre optics, other electrotechnology/electronics
Home: glass fibre applications, aquarium heating tubes, furniture, sprinkler fuses, food packaging/cosmetics, architecture, Christmas ornaments, giftware, other home decoration
Lighting: explosion proof lighting, neon tubing, lamp bulbs, exhaust and plate tubing, other lamps, other luminary
ShanDong HonHai Industrial Group Company Limited who produces and supplies borosilicate glass tube, rod and its related glassblowing articles, glass ceramic, borosilicate glass sheets, borosilicate moulded glassware, pharmaceutical glass packaging, lamp lighting glass shell and daily consumer glassware. Jinan HonHai Glass Company Limited, as a member of ShanDong HonHai Industrial Group Company Limited, is handling international business of the whole group.
Ø Division for borosilicate glass tube, rod and its related glassblowing articles
We started to manufacture borosilicate 3.3 colored and clear glass tubing, rod (Vello & Danner) and its related glassblowing articles since 1994 through importing Japanese NEG's and Germany equipment & technology. Now we have annual capability to draw glass tube over 150, 000 metric tons, which makes us the leading Chinese manufacture in this field. Thanks to our continous process improvements, we have been drawing glass tube with highly precise dimensions in China.
We also redraw (secondary processing on tubing) high precision bore glass & quartz tube for optoelectronic, fibre optics telecommunication, medical and other special applications.
Besides, we make scientific laboratory glassware, heat resistant glass tea & coffee sets, glass bong water pipes, glass baby feeding bottles, lamp glass shell and others glassblowing products.
Ø Division for borosilicate moulded glassware
Due to our expertise in electrically melted glass furnaces control technology, we set up a new factory in the year 2001 to make heat resistant baking dishes, Casseroles, food storage glass jars and others that are oven, microwave, freezer (refrigerator), dishwasher free.
Now we have annual capability around 5, 000 metric tons.
Ø Division for pharmaceutical glass packaging
From the year 1996 we enter into pharmaceutical glass packaging industry, produce neutral borosilicate pharmaceutical glass tube USP TYPE I, tubular glass vial & ampoule, glass cartridge, glass prefillable syringes.
Now we have annual turnover around US dollar thirty million.
Ø Division for lamp lighting glass
In the year 1999 we set up factory for making lamp lighting glass including soda lime glass tube, lead glass tube, lead free glass tube, lamp & lantern glass cover/shade/shell/globe/chimney
Ø Division for daily consumer glassware
In the year 2005 we expanded our production to make glass cosmetic containers, glass kitchenware and Tableware.
Particularly, we've successfully developed flat borosilicate 3.3 floated glass sheet and glass ceramic which enjoys a good reputation in the United States and Europe.
Our factories are equipped with advanced machinery with production know-how, strict and complete quality management and supervision system as well as friendly customer service. Holding a business principle of "Honesty, Cooperation, Win-Win", we concentrate on continuous quality improvement and upgrade. We take it as our responsibility to satisfy customers' requirements, and innovate market demand.
We well know about glass and respect customers' requests. We will improve, upgrade and innovate products all the time.
Let us rethink, rediscover and reinvent glass!
