Fuse Link High Voltage Cut Link Thermal Fuse 15A 250V

Name: Fuse Link High Voltage Cut Link Thermal Fuse 15A 250V
Brand: all-electronics-online.com
SKU: 817753155
Availability: InStock
Rating: 4.9 (87 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications:

1.Rated voltage:250V,AC and 125V
2.Rated current:10A and 16A
3.Frequency:50 or 60Hz
4.Max. quantity of electricity allowed:250V,AC16A

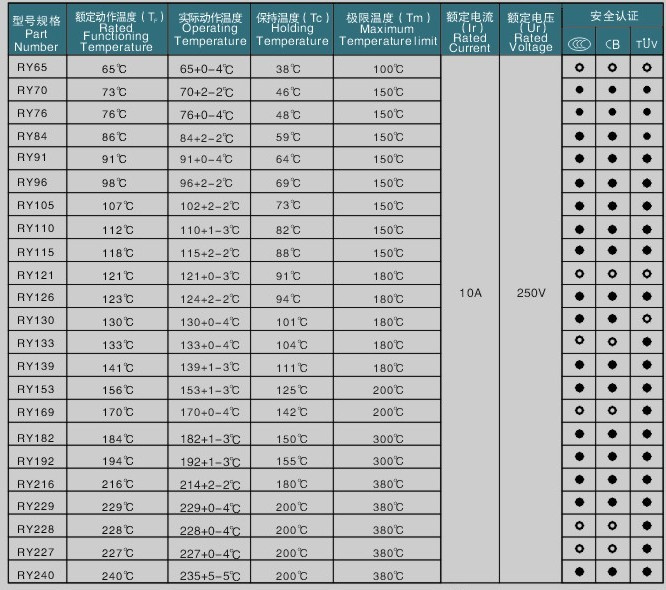

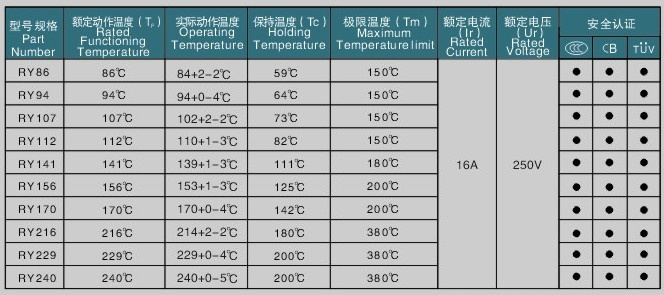

SCOPE OF RATED TEMPERATURE

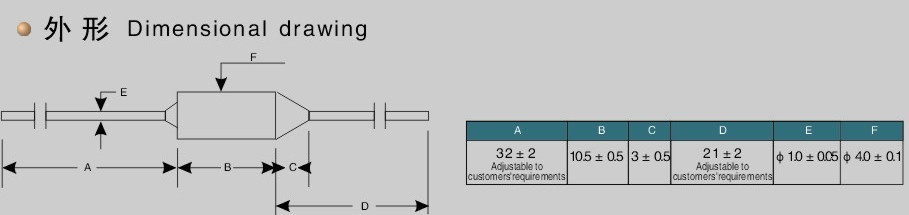

Demensional drawing

Trait

The products have the ablility to cut circuit immediately for high current,with non-resttable.

The thermal fuse has low internal resistance itself,small size that easy to install.

The products are sensitive to external temperature and the operating temperature has high accuracy and stability.

Application:

The products are widely used in refrigerator,electric iron,electro thermal oven,microwave oven,rice cooker,coffee maker,hair drier,sandwich oven,electric tools and all kinds of household appliances.

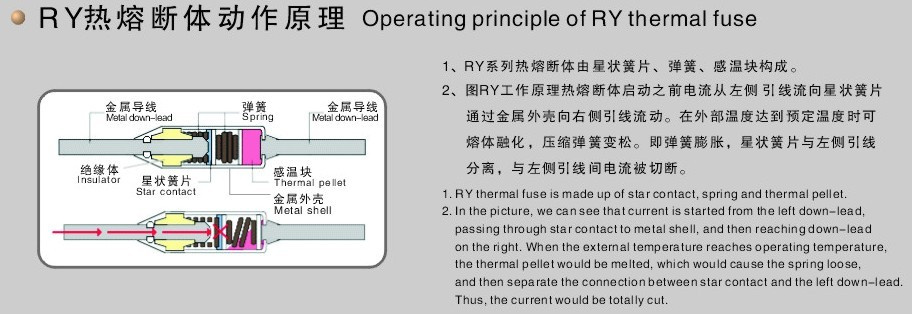

Operating principe of RY Thermal fuse

Please check below thermal protector/thermal switch we provide:

Prod Model:	RY
Breaking Capacity:	High
Type:	Temperature Fuse
Usaga:	Low Voltage

We are Ningbo Meiyang Electronics Co., Ltd. Located on the South Coast of Hangzhou Bay in Yangtze Delta, where is very close to Shanghai. We are professional in manufacturing terminal block and connector that are widely used in appliance, anti-theft devices, electric power industry automation, instrument and other equipment. We have our own research and development team, and our fine manufacturing system is subdivided into plastic molding, punching molding, hardware manufacturing, injection molding and assembling. We consistently develop in improving quality at same time to reducing cost by lean-production, standardization and increasing production, which make us more competitive and obtain more support and confidence from our customers.

Sincerely we hope our products could be suitable to you and we could provide you with better quality, cheaper price and best service in our cooperation.
