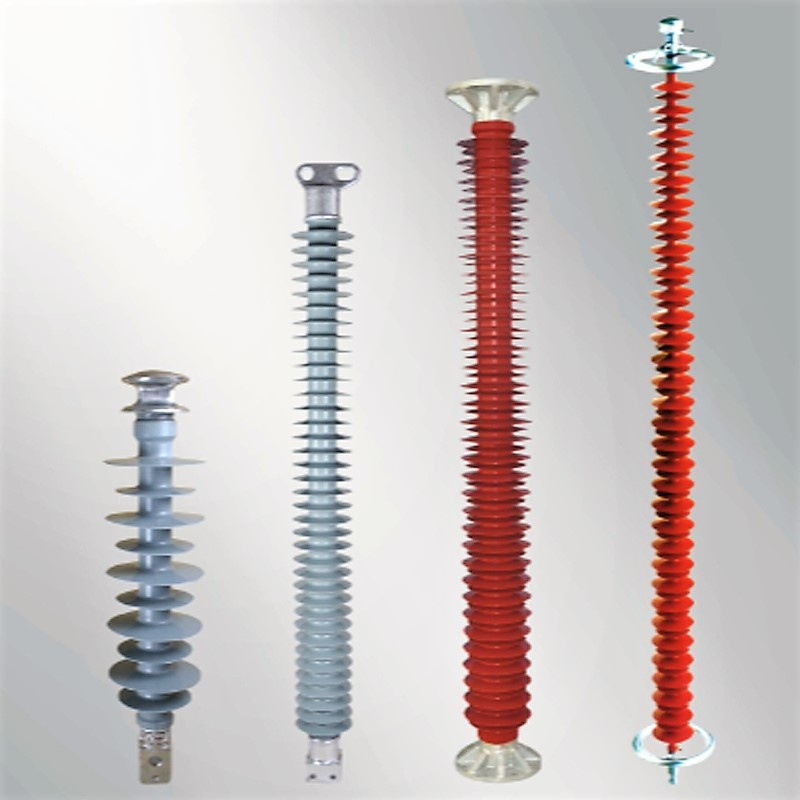

FXBW4 24KV Rod Composite Suspension Insulator
| Price: |
US $ 10-10000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FXBW4-24/70 |
| Application: |
High-voltage |
| Material: |
Composite Polymer |
| Structure: |
Suspension Insulator |
| Type: |
B Type Insulator |
| Connection Method: |
Pressure welding |
| Brand: |
RIGHT |
Product Description
Product Description
This product is special for badly polluted areas, high mechanical tension load, long span and compact power line. And havle features of light weight, small volume, unbreakable, anti-bend, high strength for anti-twist and strong explosion protection.
Precautions in installation:1.The insulator should be handled with care in carrying or installing, to avoid It colliding and fracti.factioning with parts like the cond uctor. wiring board, tool as well as sharp material.
2.When the composte insulator Is hung, the rope should be tied at the end accessory (fitting), rather than the shed or sheath, If the rope has totouch the shed and sheath, the contact part should be covered with the soft cloth.
3.Even if the material of the this insulator shed has the rat- repelling property. some rat-proof measures should be still taken in the storing place just in case. The damaged shed should be rejected.

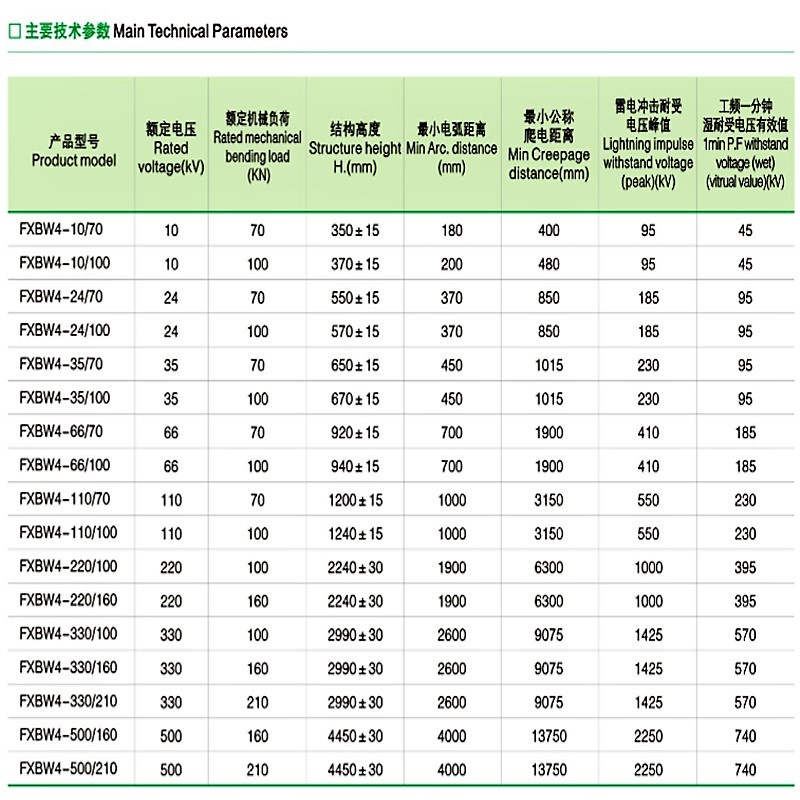

Main Technical Paramenters

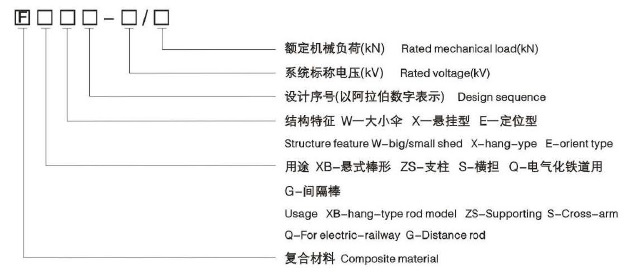

Model and Meaning
Company Information
Certificate
Performance Guarantee
Once u buy the product manufactured by Haibian Power Equipment (CHHP) can get 24 months performance guranantee after delivery date, or if there is any special reques, pls do not hesitate to contact us...
Haibian Power Equipment Co., Ltd. is founded in 2009, specialized in the development, manufacturing, and sales of high voltage power distribution equipment and transformers. With outstanding advantages, the leading SF6 load switches, High and Low Voltage Switchgear, Ring Main Unit, Transformer, Distribution Box, Compact Substation, Load Break Switch, Circuit Breaker and centrally installed switchgears are accredited as domestic leading products by the Zhejiang Science and Technology Department. The company owns independent import and export license and also takes part in the overseas EPC projects, with a subsidiary US-Sino joint-ventured Shanghai Haibian Electric Power Equipment Co., Ltd.

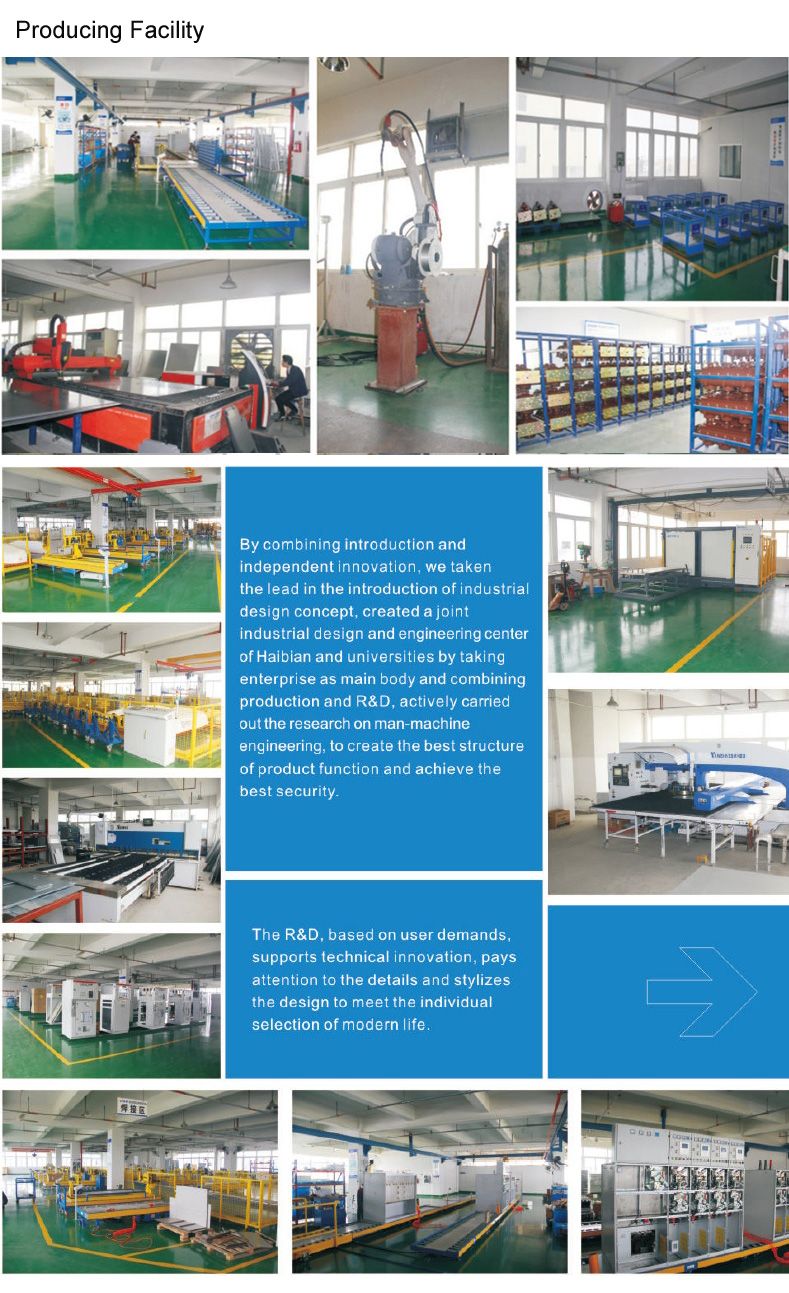

The company owns advanced equipment and strong technologic strength. The special clean production workshop owns 2 latest automated production lines, 2 imported Panasonic welding robots, and first-class high-precision CNC sheet metal shearing, bending, and stamping centers both home and abroad. In terms of inspection, the company sets up Yueqing corporate technology R&D center, owns "partial discharge" lab, and adopts the Wayeal intelligent leak testing equipment. With the comprehensive utilization of computer-aided equipment system, the company sets up multiple design control centers and supplies professional management information system for the enterprise resource management, human resource management, and finance management.
"Speciality-based, winning with quality, human-oriented" is the company's long-term development thinking. The company adopts the way of independent R&D and the introduction of foreign advanced technology and established and improved an enterprise product system. The products manufactured passed the type test of Northwest Institute of Plateau Biology, CAS and are used widely by the power grid systems and subsidiary switch companies in Shanxi, Zhejiang, Hubei, Anhui, Henan, and Heilongjiang, winning the wide applause. The company boasts rich humanistic culture to gain high acceptance from employees. The company is honored the titles of Zhejiang High-Growth Technology-Based Small and Medium-Sized Enterprise, Zhejiang Technology-Based Enterprise, Wenzhou Credit Management Model Enterprise, Yueqing Famous Trademark, and Yueqing Famous Product.
"Innovation, development, cooperation, harmony" are the business concepts of Haibian people. Faced with the vigorous development of the electric power industry in the world, Haibian people will always continue to devote rigorous, high quality, efficient products and services to the extensive electric power users and create the history of Haibian people in the glorious development of humankind electric power industry.
We warmly welcome your visits and guidance.
