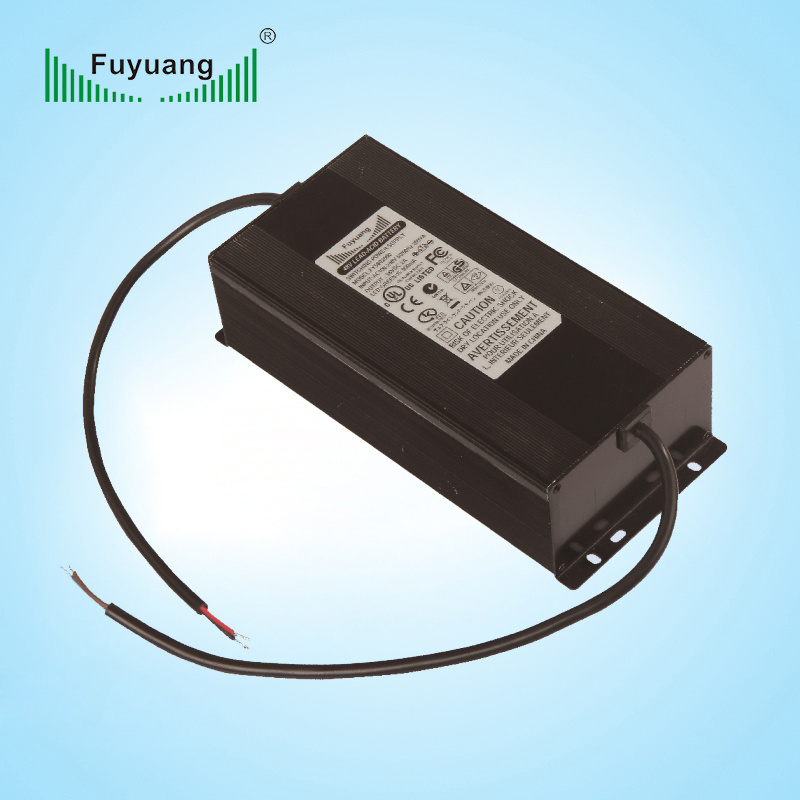

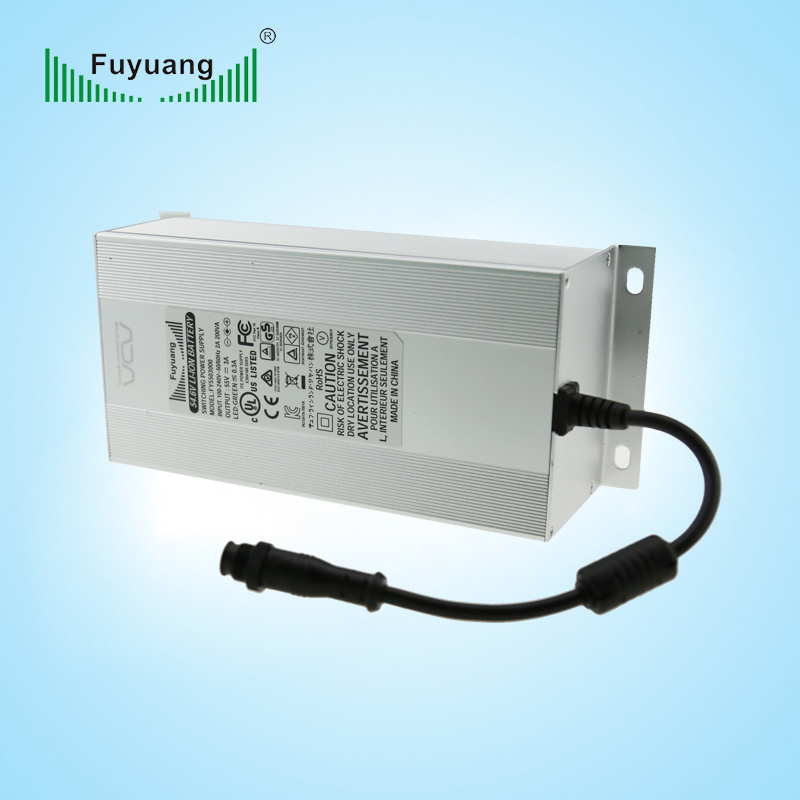

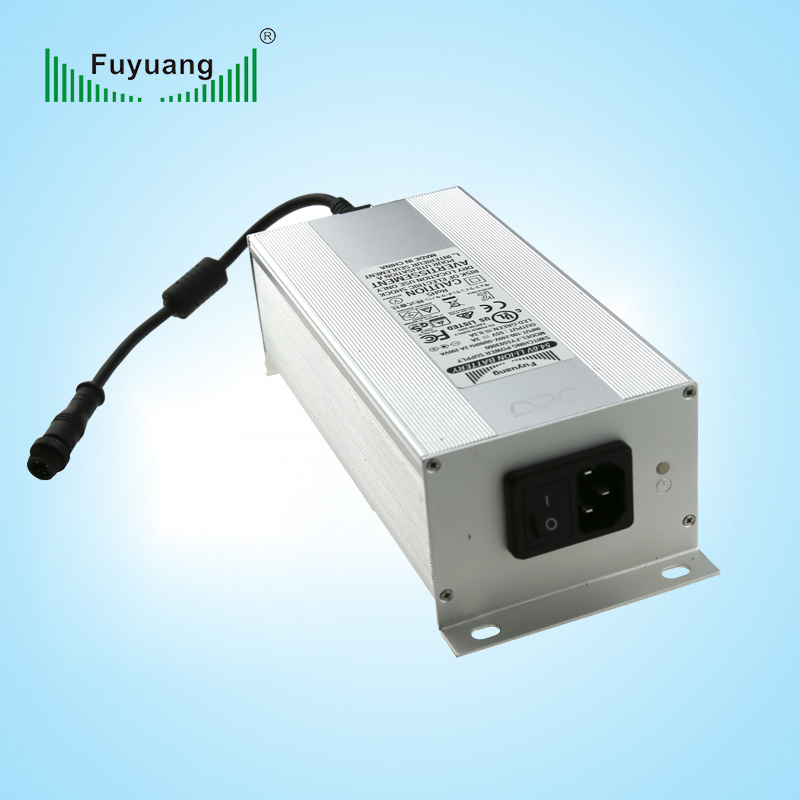

Fy3605000 36V 5A Waterproof LED Driver IP67
| Price: |
US $ 1-58/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
FY3605000 36V 5A waterproof led driver ip67
Advantage:
*Global certificates: CE,GS,CB,UL,CUL,FCC,PSE,SAA,C-TICK,RCM,KC,CCC,ROSH,REACH,ERP,MEPS,NRcan.
*All power supply,battery chargers and power adapters are 100% burn-in tested and inspected with automatic test equipmrnt(ATE).
*100% inspection: no load voltage, load voltage,short circuit, OCP,OVP, Ripple Voltage, Primary, HIPOT test and general appearance.
*Safety standard: UL60950,EN55022,EN55015,EN61547,EN61000,EN60335,EN61558,EN61347-1,EN61347-2 -13,EN62233,EN60529,GB4943.1,GB9254,GB17625,J60950,J55022,J3000,J61347-1,J61347-2-13,J55015,J55014,J61558,K00022,K00024.
*We back our items with three-year guarantees.
*Key components made by ourselves, such as Transformer, case, and DC cord.
*Lead by general engineer of 25 years experience.
*Both OEM and ODM are vailable
Specification :
| Item | Parameter |
| Part name: | FY3605000 36V 5A waterproof led driver ip67 |
| Model No. | FY3605000 |
| AC Input: | 100-240V,50/60HZ |
| Max charging voltage: | 36V |
| Max charging current: | 5A |
| Inrush current: | Limited 30A when cold starting |
| Protection: | short circuit, over current and over voltage protection. |
| Efficiency: | 88% |
| Power factor: | 0.89 |
| HIPOT testing: | 3000-3700V |
| Drop testing: | meet UL standard. |
| Temperature: | Case 65 ºC Max. |
| Operating temperature | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| MTBF: | 30000 hours full rated load at 25ºC |
| Energy Efficiency: | Level VI( DOE or COC) |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |
More Pictures:
Our Company:

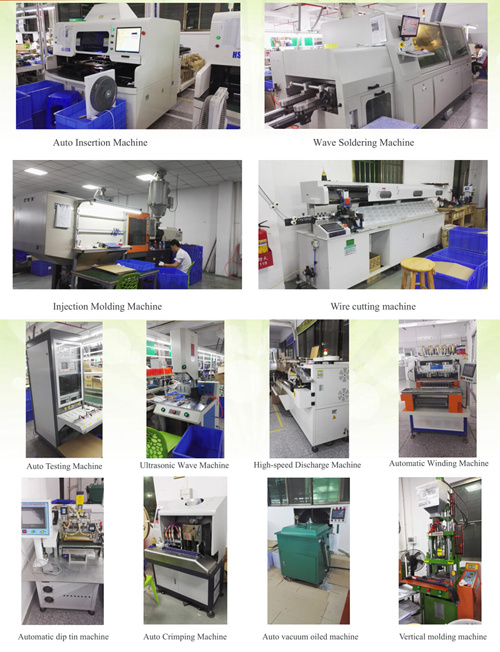

Our Equipments:
Our Certifications:
Certificate File No:- UL file No.:Power Supply: E304160 ; Waterproof LED driver -E343215 Check here:www.ul.com
- TUV/GS file No.:S1 50224721& S150205925 & S150203696 & S1 50272098& S1 50278124& S1 50270517 Check here:www.tuv.com
- SAA file No.:ESO110651(replace of Q061232)& SAA131909EA & SAA130561 & EAE1308371 Check here https://equipment.erac.gov.au/Public/
- C-tick file No.:N17653 & N136, Check here: http://www.cotek.sg/approval.html
- PSE file No.:JD50195547 & JD50248227 & JD 50287481 Check here: http://www.certipedia.com
- EK file No.:HU10419-7001A Check here: www.ktc.re.kr,
- KC file No.:HU10419-9002A Check here: www.ktc.re.kr
- CE file No.:E0604412-01&S1403017 Check here:www.usai.cn
- RoHS file No.:CANEC1313005401 Check here: http://rsts.cn.sgs.com/zh-cn/cheres_cn.asp
- CCC file No.:2014010907681379 Check here: http://www.cnca.gov.cn
- CB Certification No.:JPTUV-042130&JPTUV-037849&DE 2-014922&DE 2-017489 Check here:www.tuv.com
Contact us:Telephone No.: + 86 0769 8101 1311
Mobile Phone:+86 188 1856 6861
Web:http://www.fuyuanpower.com
http://fuyang.en.alibaba.com
Add:No. 23, Sanjiang Industrial Zone, Hengli Town, Dongguan, Guangdong, China
| Prod Model: |
FY3605000 |
| Item Name: |
Waterproof LED Driver IP67 |
| Inrush Current: |
Limited 30A for a Cold Start |
| Protections: |
Short Circuit Overload Overvolt |
| Energy Level: |
Level VI |
| Application: |
LED Lighting |
| Weight: |
1.7kgs |
| Efficiency: |
>88% |
| Payment: |
30% Deposit in Advance, 70% Before Shipment |
| Leadtime: |
2-3weeks |
| Description: |
Fy3605000 36V 5A Waterproof LED Driver IP67 |
| Usage: |
Vehicle |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Brand: |
Fuyuang |
Fuyuang is the Chinese famous switching power supply brand. Located in Dongguan of China, the company is integrated with product design, R&D and production as a whole. Established in 2005, Fuyuang has 8, 000m2 self-built garden-like factory buildings and 200 staff members. With 28-year senior engineer team personally LED by the founder Mr. Huang Shaocheng, the company has mastered core technologies, adhered to the enterprise's concept of "seeking greater perfection and giving top priority to quality", upheld the pioneering and progressive spirits that "we have what others don't have and ours are better than others", built the leading brand in the battery charger and adapter manufacture industry, and enjoyed good reputation at home and abroad.
Since its foundation, Fuyuang has always advocated the independent innovation development route, constantly absorbed global wisdom essence, and built the international top R&D team LED by dozens of domestic and foreign industrial senior engineers. We have gained the design patents and international brand certificates for various products from China and other countries worldwide. It only takes 10 days to design and develop a brand-new product.
Up to now, Fuyuang has accumulatively offered samples to over 5, 000 global customers for over 20, 000 times, and kept over 1, 000 stable quality customers worldwide. Its monthly production capacity reaches 500, 000 units and the annual production value amounts to over 20 million U. S. Dollars.
Fuyuang products range 0.9W~500W and cover over 1, 200 models. All products have passed various quality certifications worldwide. Currently, its 60W~400W large-capacity products take the leading position in the power supply industry. Fuyuang is the preferred supplier for such industries as electric motor car, battery, electric tool, LED lamp, security, acoustic equipment, massaging machine, beauty apparatus and robot.
Currently, Fuyuang has already passed ISO9001 Quality Management System, ISO14000 Environmental Management System, and QCO80000 Hazardous Substance Management System. In 2015, it successfully introduced ERP management system. On the basis of advanced inspection equipments, professional QC team and rigorous incoming material management control, coupled with our regular machinery equipment correction two times a year, persistent pursuit for perfect quality and constant improvement on services, Fuyuang has received good praises from global customers. In future, Fuyuang plans to build its own quality testing laboratory within two years, to better promote the product testing efficiency, and maintain the good cooperative relationships with TUV, UL, SGS, and many other certification authorities.
