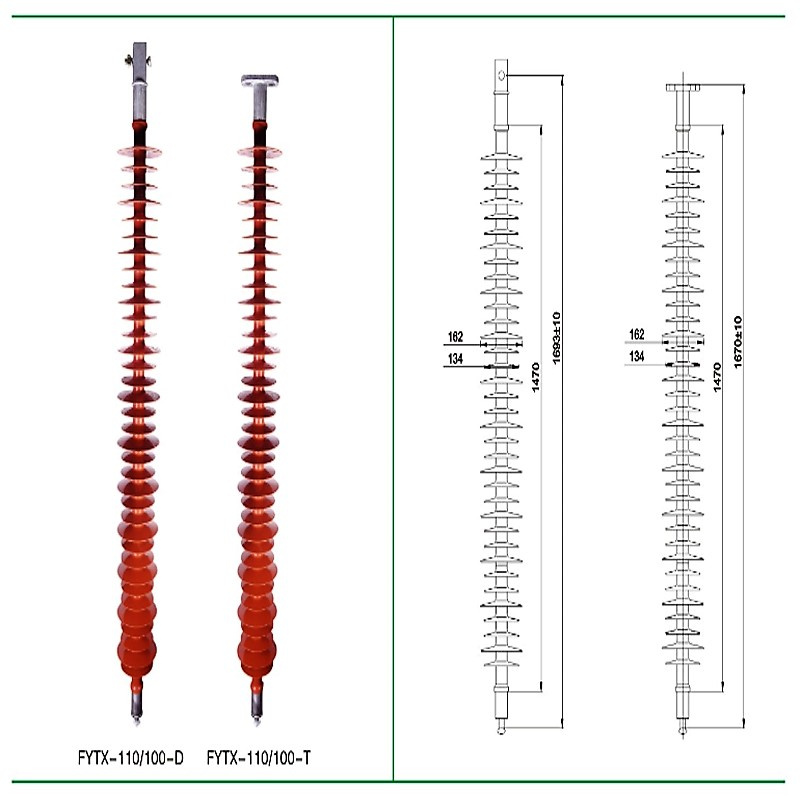

FYTX 35KV windproof bias insulators
| Price: |
US $ 10-10000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FYTX-35/100-T |
| Insulation Distance: |
532 |
| Application: |
High-voltage |
| Material: |
Composite Polymer |
| Structure: |
Suspension Insulator |
| Type: |
B Type Insulator |
| Connection Method: |
Pressure welding |
| Brand: |
RIGHT |
Product Description
Product Description
110kV, 220kV high voltage overhead transmission line on drainage jumper in the wind,. Prone to flashover phenomenon under the storm harsh weather conditions, especially like (outer) angle strain tower jumper can not guarantee the safety of the tower jumper from the distance in strong winds and other inclement weather conditions, easy to cause partial wind jump flash failure, seriously affect the operation of the system. Before the power department also adopted such measures as loading heavy hammer and changing string type, the effect was not very good.
Windproof partial jumper insulators are also called wind resistant jumper line composite insulators. The mechanical support selection of epoxy glass fiber coarse drawing rod, steel fixed on the tower, using epoxy glass fiber drawing is the unique characteristics of rigid flexible holding, reduce the torque generated by the partial instantaneous wind, damping and suppression of wind deflection ability. Under wind swing, the anti wind composite jumper insulator bear tensile and bending load, so as to avoid the wind jumper flashover phenomenon.
The operation experience shows that the insulator of windbreak jumper line has excellent anti flashover and windproof bias performance, and it can effectively solve the windage flashover problem caused by typhoon and storm.
The connection of the windproof bias insulator and the tower of the tower adopts the T type connection (vertical T type double hole connection) or the D type connection (side single hole connection) for the user to choose.

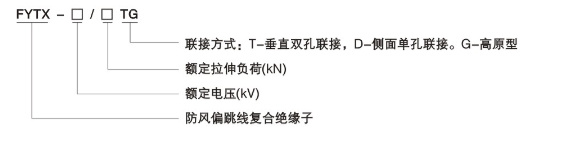

The windbreak insulators can easily replace the jumper insulators (porcelain insulators or glass insulators) in the current operation. In addition, the size of the windproof jumper insulator and the way to connect the fittings can also be processed according to the requirements of the customer. Product model description

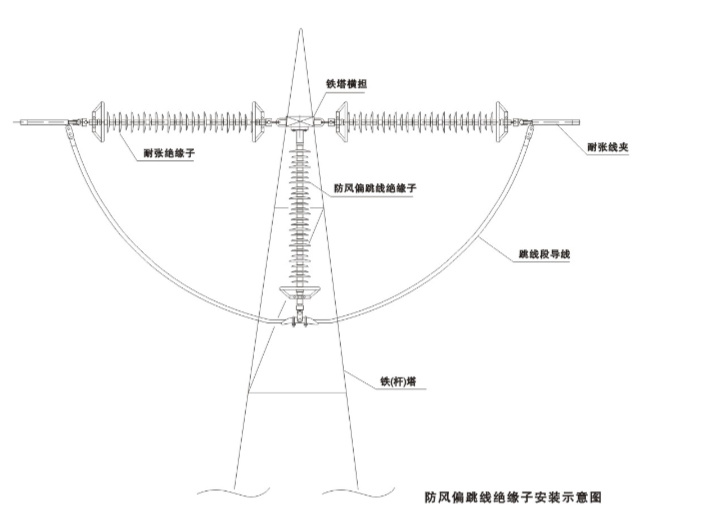

Installation diagram
Company Information
Certificate
Performance Guarantee
Once u buy the product manufactured by Haibian Power Equipment (CHHP) can get 24 months performance guranantee after delivery date, or if there is any special reques, pls do not hesitate to contact us...
Haibian Power Equipment Co., Ltd. is founded in 2009, specialized in the development, manufacturing, and sales of high voltage power distribution equipment and transformers. With outstanding advantages, the leading SF6 load switches, High and Low Voltage Switchgear, Ring Main Unit, Transformer, Distribution Box, Compact Substation, Load Break Switch, Circuit Breaker and centrally installed switchgears are accredited as domestic leading products by the Zhejiang Science and Technology Department. The company owns independent import and export license and also takes part in the overseas EPC projects, with a subsidiary US-Sino joint-ventured Shanghai Haibian Electric Power Equipment Co., Ltd.

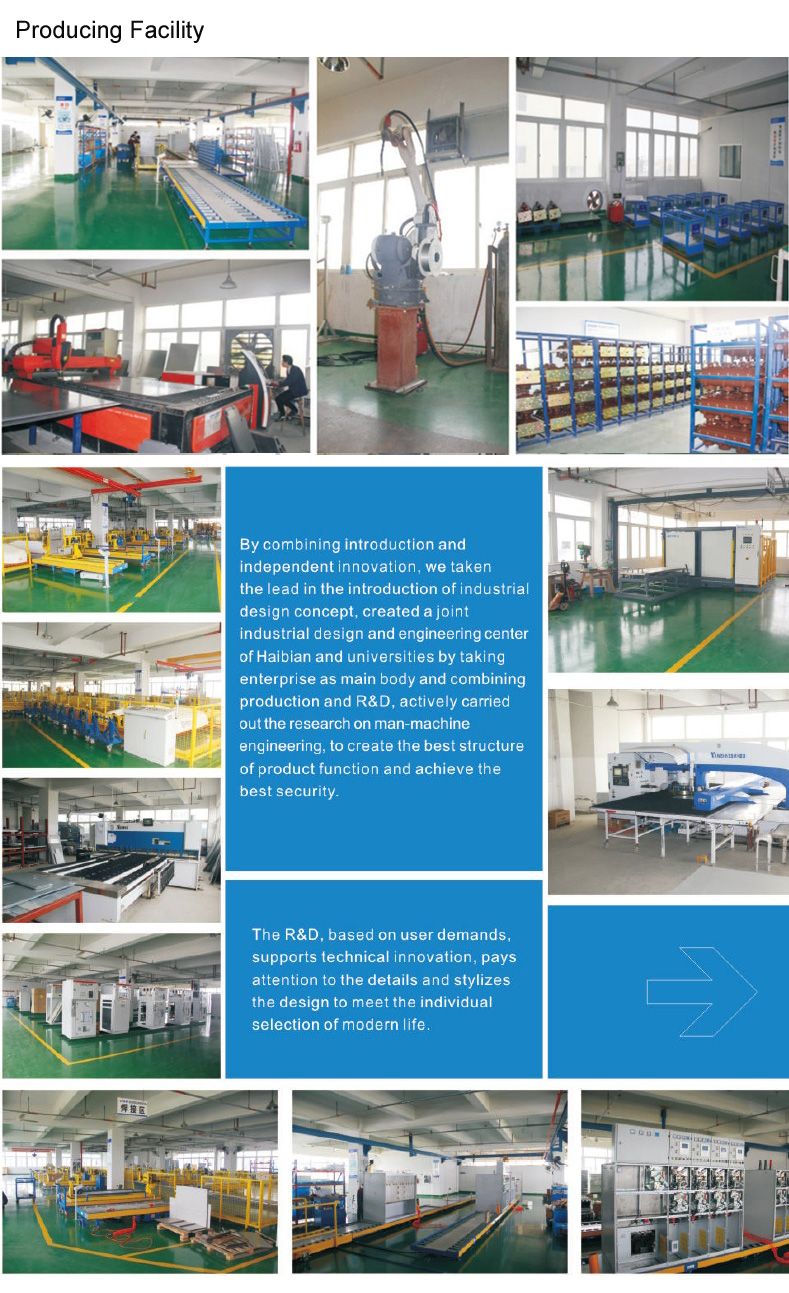

The company owns advanced equipment and strong technologic strength. The special clean production workshop owns 2 latest automated production lines, 2 imported Panasonic welding robots, and first-class high-precision CNC sheet metal shearing, bending, and stamping centers both home and abroad. In terms of inspection, the company sets up Yueqing corporate technology R&D center, owns "partial discharge" lab, and adopts the Wayeal intelligent leak testing equipment. With the comprehensive utilization of computer-aided equipment system, the company sets up multiple design control centers and supplies professional management information system for the enterprise resource management, human resource management, and finance management.
