Gcyfty Air Blown Fiber Optic Cable

Gcyfty Air Blown Fiber Optic Cable
Price: US $ 100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Roll
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: GCYFTY
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber: Single Mode
Loose Tube: PBT
Material: G652D or 657A
Jacket: PE
Package: Drum
Type: Single-mode Fiber
Certification: CCC
Connection Structure: SC
Brand: Surelink
Sheath Material: PE

Product Description

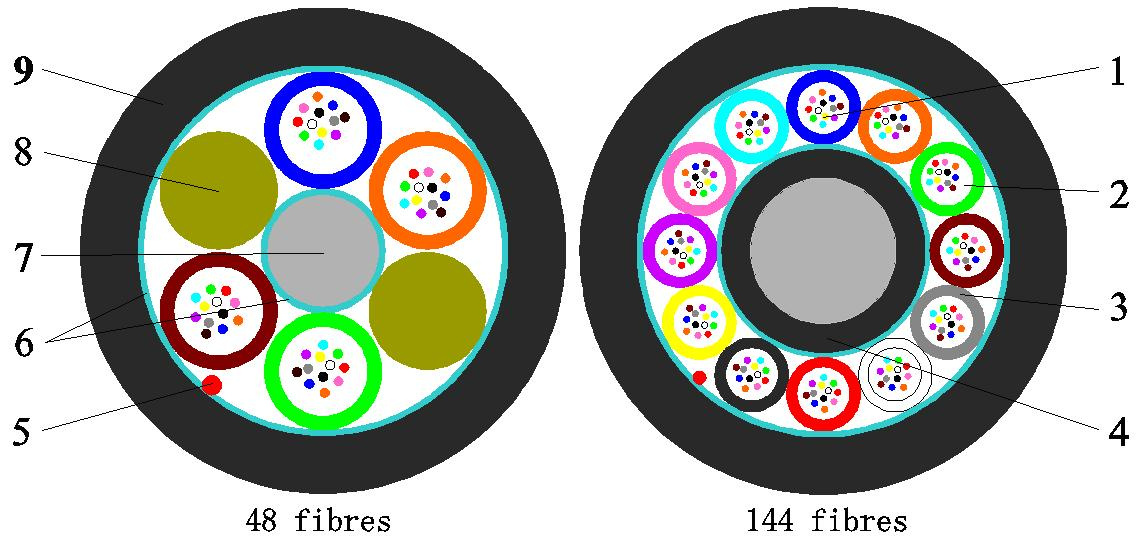

Air blown cable
1. Optical Fibre
2. Jelly
3. Loose Tube
4. Lining
5. Ripcord
6. Water Blocking Yarn

7. FRP
8. Filled String
9. HDPE Sheath



Cable Type
Layer Cable
Fibre Count243648607296144 (A)144 (B)
Number of loose tube234568126
Number of filled string43210000
Number of fiber/tube1224
Water blocking methodFRP or PE LiningWater Blocking yarn
Cable CoreWater Blocking Kevlar
Thickness of HDPE sheathNominal: 0.45mm,  Average: 0.40mm,  Minimum: 0.35mm
Overall Diameter5.6±0.1 mm6.4±0.1 mm8.2±0.1 mm8.0±0.1 mm
Weight27 kg/km40 kg/km65 kg/km55 kg/km
Max. Tensile Strength500N1000N1200N1000N
Max. Crushing Resistance800N/100mm
Min. Bending radius    -Static12 outer Φ
Min. Bending radius    -Dynamic20 outer Φ
Cable Fiber Attenuation G.652D0.35dB/km max @1310nm    0.22dB/km max @1550nm
