Gear Motor Stepper Motor with NEMA17 Size 28mm Length Servo Motor with Sewing Machine

Name: Gear Motor Stepper Motor with NEMA17 Size 28mm Length Servo Motor with Sewing Machine
Brand: all-electronics-online.com
SKU: 837726925
Availability: InStock
Rating: 4.6 (81 reviews)

Price:	US $ 4-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	42HS1006
Current:	0.6A
Holding Torque:	1.2kg.Cm
Step Angle:	1.8 Degree
Rated Volage:	4.8V
Resistance/Phase:	8Ω
Inductance/Phase:	10mh
No Of Leads:	4
Rotor Inertia:	34G.Cm2
Weight:	0.15kg
Motor Length:	28mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	2 Phase
Type:	Stepper Motor
Certification:	Ce
Brand:	Sjie

Product Description

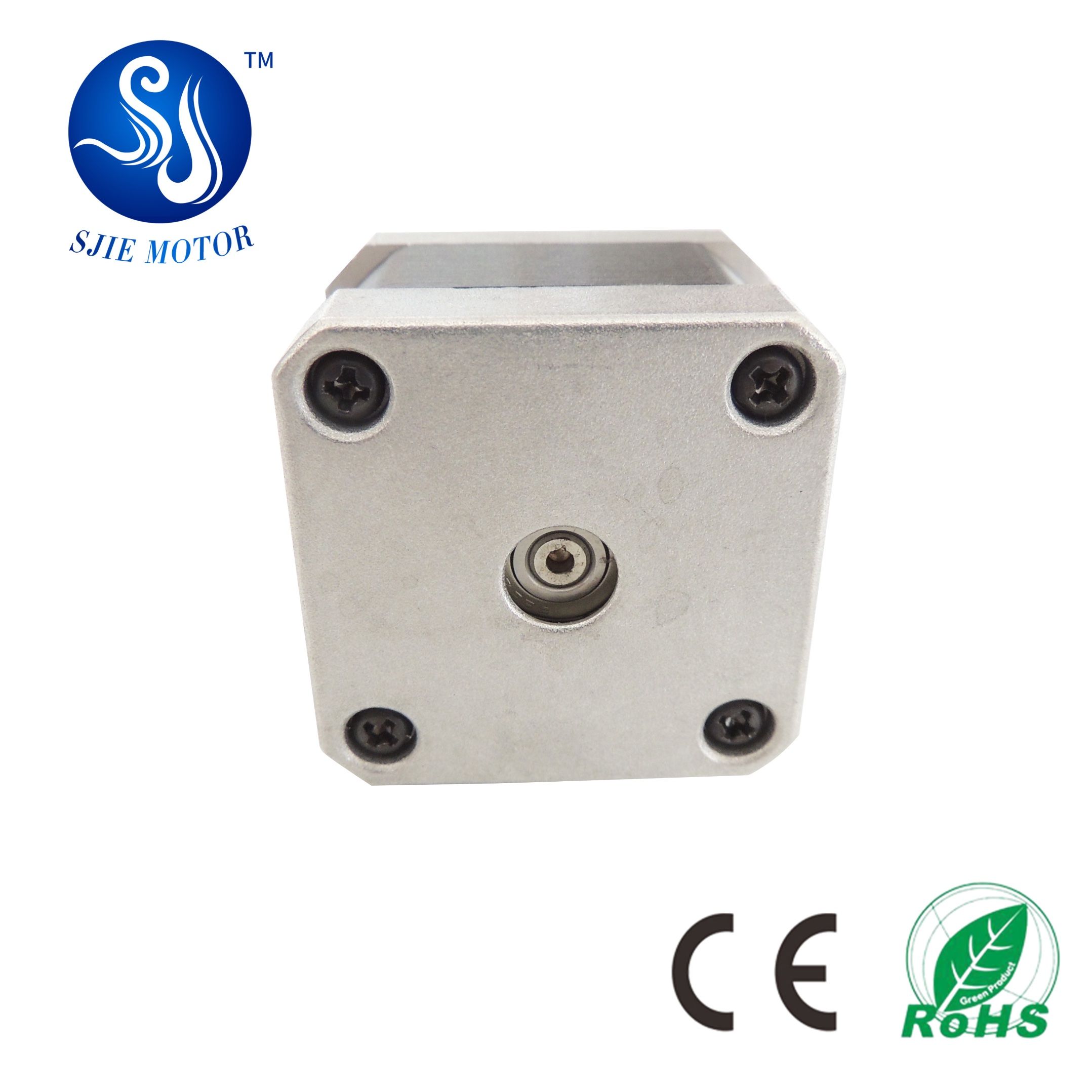

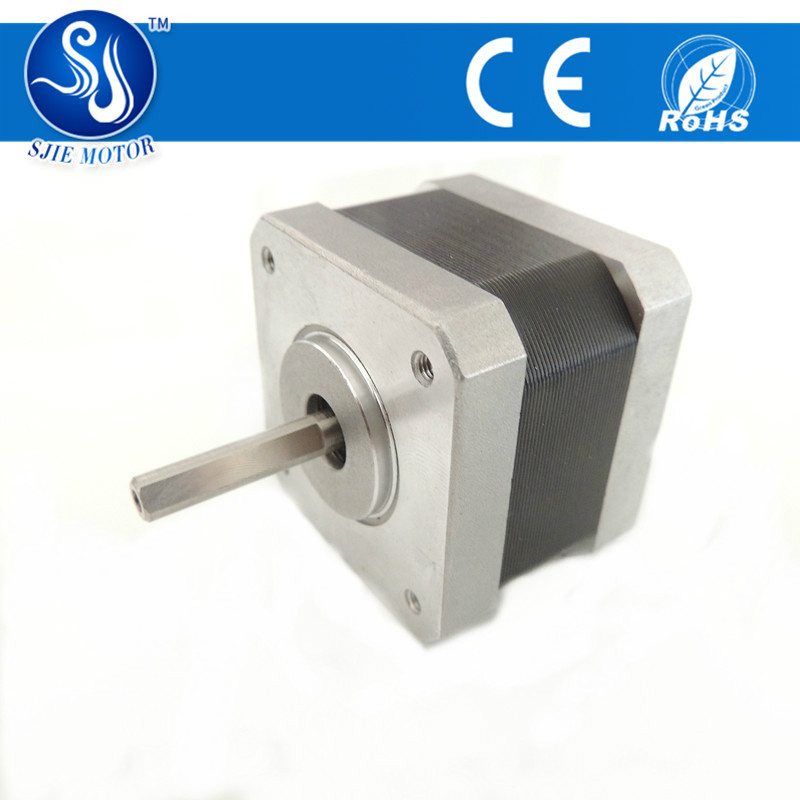

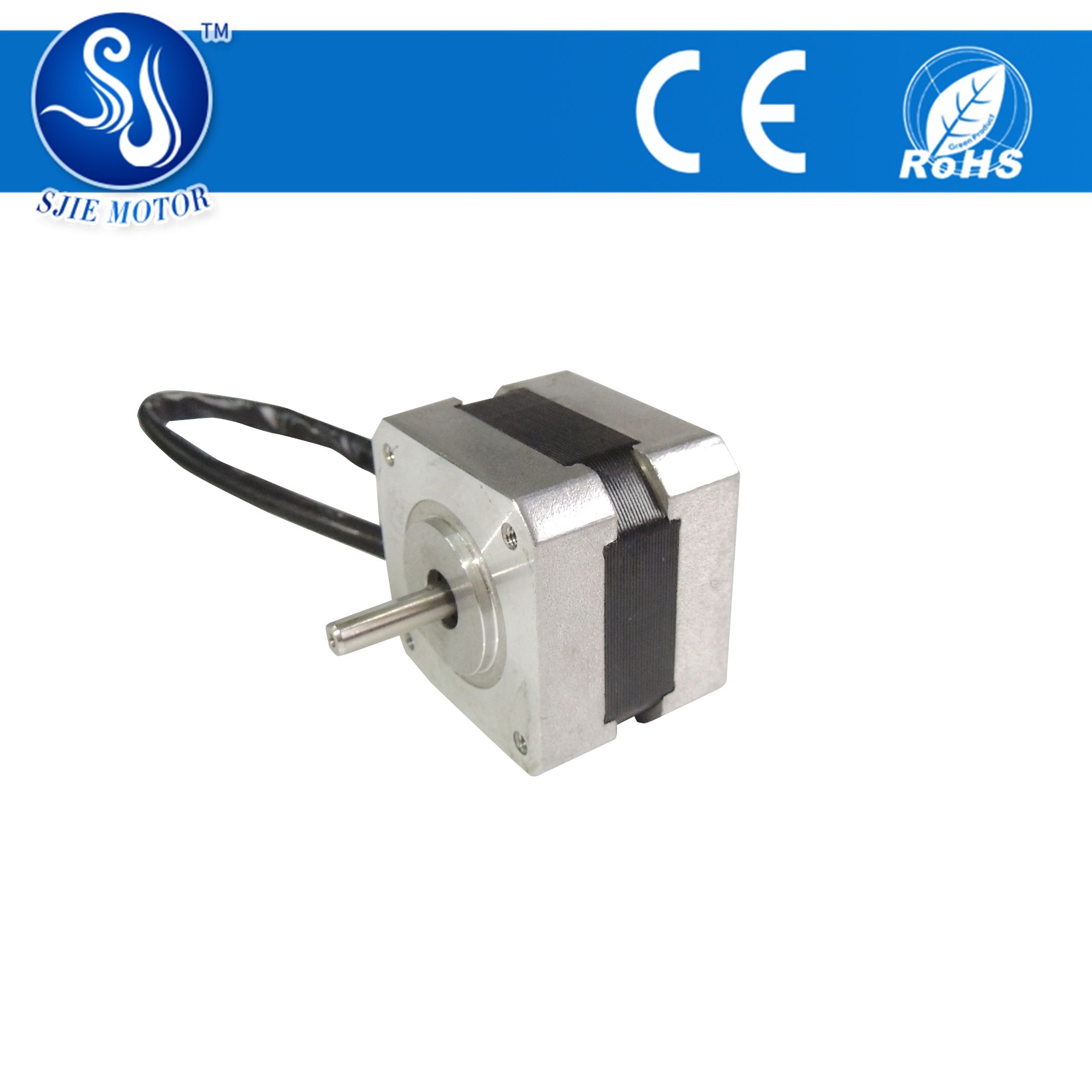

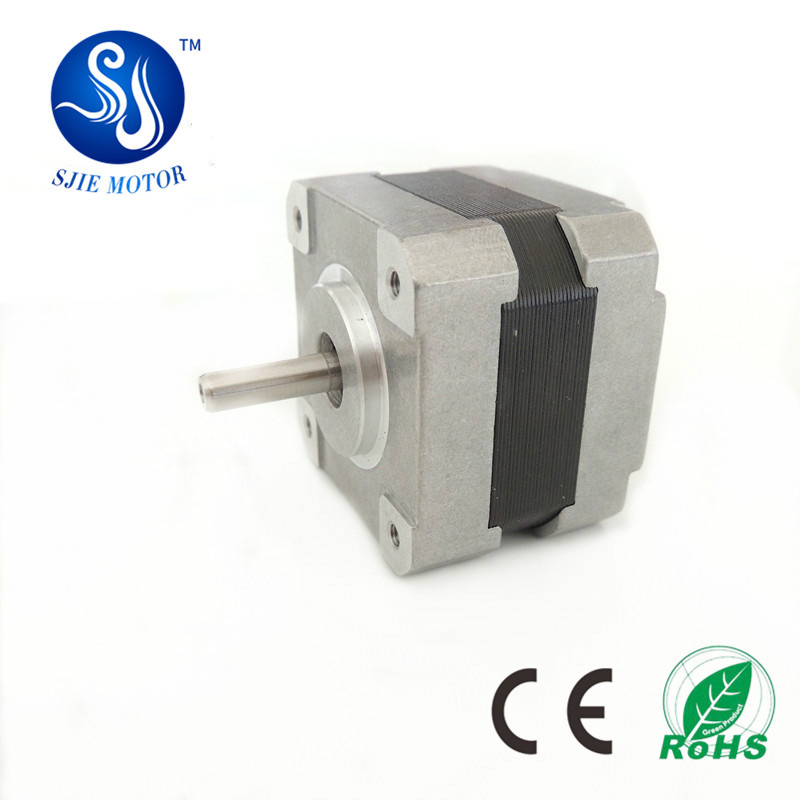

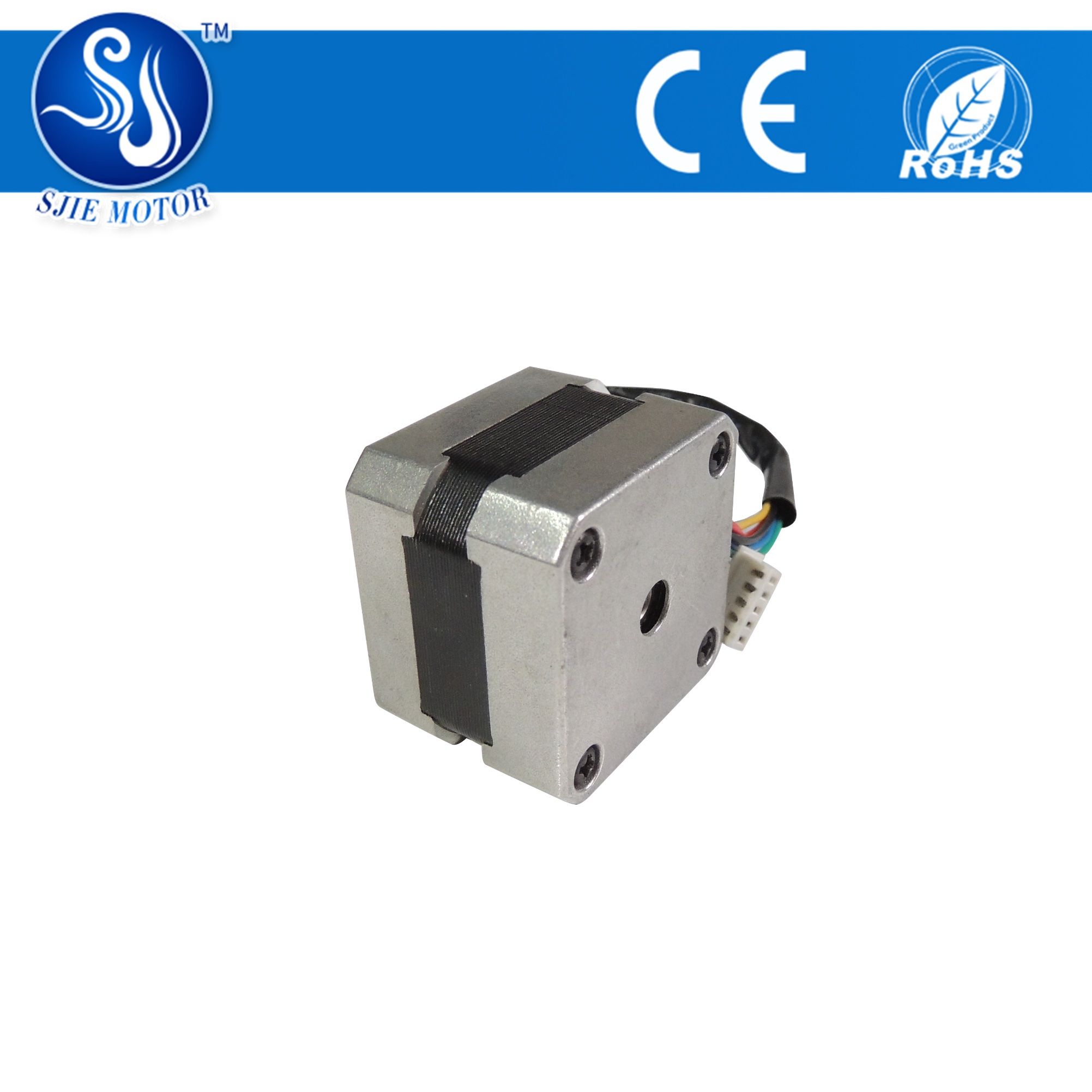

Products photos:

one type

two type

three type

Product Description:

1.8degree Size 28mm High Torque Hybrid stepper motor.

28mm size stepper motor,

NEMA42stepping motor,

2 phase 28mm stepper motor

Stepper motor 28mm size

Hybrid Stepper Motors

1) We can develop customer design version

Specifications:

item	Specification
Temperature Rise	80°C Max
Insulation Resistance	100MΩ Min., 500VDC
Step Angle Accuracy	±5%(full step,no load)
Resistance Accuracy	±10%
Amibent Temperature	-20°C~+50°C
Inductance Accuracy	±20%
Dielectric Strength	500VAC for one minute

Electrical Specific
Electrical Specific
Series	Step	Motor	Rated	Phase	Phase	Holding	Detent	Rotor	Lead	Motor
Model	Angle Length	Current	Current	Resistance	Inductance	Torque	Torque	Inertia	Wire	Weight
	(° )	(mm)	(A)	(Ω)	(mH)	(kg.cm Min)	(g.cm Max)	(g.cm²)	(No.)	(g)
42HS2806	1.8	28	0.6	8	10	1.2	160	34	4	150
42HS3313	1.8	33	1.2	2.0	0.6	2.5	160	34	4	220
42HS3305	1.8	33	0.5	24.0	19.0	2.1	160	34	4	220
42HS3405	1.8	34	0.5	30	35	2.1	160	34	4	220
42HS3405-6	1.8	34	0.5	20	16	2.0	160	34	6	220
42HS3417	1.8	34	1.7	1.9	2.5	2.8	160	34	4	220
42HS3412	1.8	34	1.2	2.3	3.8	2.8	220	54	4	280
42HS4005	1.8	40	0.5	30.0	44.0	2.8	220	54	4	280
42HS4008	1.8	40	0.8	7.2	4	3.0	220	54	4	280
42HS4015	1.8	40	1.5	2.0	40.0	3.0	220	54	4	280
42HS4010	1.8	40	1.0	7.2	7.3	3.0	220	54	6	350
42HS4805	1.8	48	0.5	30.0	20.0	4.0	260	68	4	350
42HS4823	1.8	48	2.3	1.0	1.8	5.0	260	68	4	350
42HS4818	1.8	48	1.8	1.7	3.2	5.0	260	68	4	350
42HS6018	1.8	60	1.8	2.2	5	6.5	280	102	4	350
*Note:We can manufacture products according to customer's requirements.

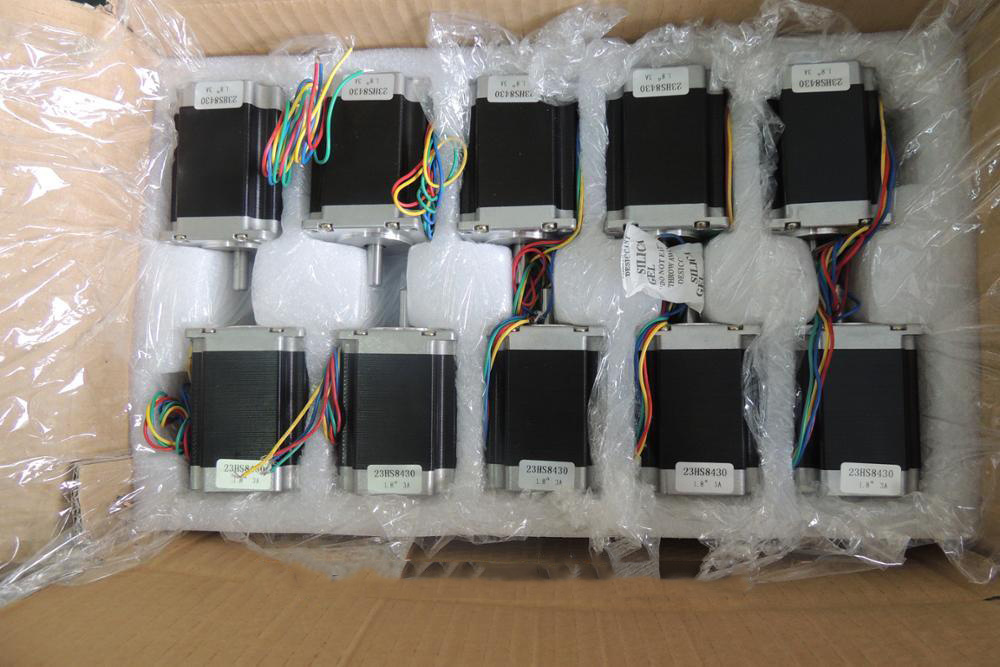

About our Packing:

Except 2 phase and 3 phase stepper motor , we also supply close loop stepper motor , planetary gear stepper motor , hybrid stepper motor driver , power supply and so on .

if you need more information , please contact with us , our contact information is as follows.

Changzhou Sujie Motor Co.,Ltd

Contact Person : Ms Sue (Sales manager)

Tel: 0086 519 88779021

If you need instant massaging and real-time conversation, please note information when adding friends. Welcome to consult!

We can develop customer design version .More Quantity . more discount !!!

Established in 2001, Changzhou Sujie Motor Co., Ltd is a manufacturer and trader specialized in the research, development and production of stepper motor. Company is located in No. 101, Qinxin Industrial Park, Wujin District, Changzhou, Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the word.

Half of our production is currently exporting worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
