| Prod Model: |
JTS |
| Rated Voltage: |
DC6V~24V |
| Temperature Response Time: |
Minimum 3 Minutes After Power Supply Electrified |
| Ratad Power For Alarm Switch: |
1.2W~3W |
| Type Of Alarm Touch: |
The Switch Turns off When The Temperature Rises |
| Protection: |
IP67 |
| Sizes: |
Different Sizes, Can Customized |
| Material: |
Brass, Double Metal |
| Certification: |
Ce, CCC |
Product Description

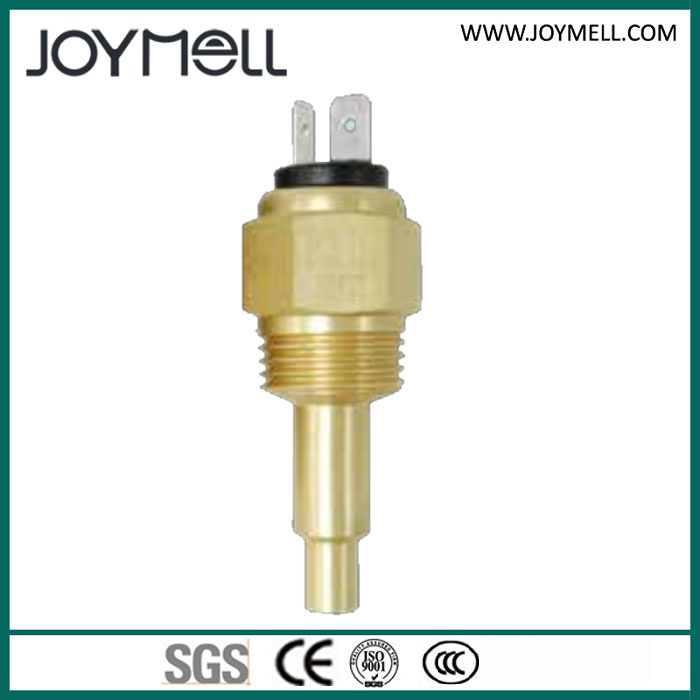

Generator Engine DC Alarm Temperature sensor
Application:
*The main body is made of brass
*Pleasure refer to appendix 1 for product types(temperature sensor series)
*Sensor with alarm features has double metal plate connectors
*Eg:Type II and Type III
*Protection rank: IP67
Description:
| Rated voltage: DC6V~24V |
| Temperature response time: Minimum 3 minutes after power supply electrified |
| Ratad Power for alarm Switch: 1.2W~3W |
| The temperature alarm tolerance:±3ºC |
| Type of alarm touch: The switch turns off when the temperature rises |
Sizes: for Water temperature sensor
Temperature
Max(ºC) | Thread Spec | θmm | L1(mm) | L2(mm) |
| 120 | M14X1.5 | 7.5 | 28.5 | 51 |
| 120 | M16X1.5 | 7.5 | 28.5 | 51 |
| 120 | 1/4"-18NPT | 7.5 | 28.5 | 51 |
| 120 | 1/8"-27NPT | 7.5 | 28.5 | 51 |
| 120 | 3/8"-18NPT | 7.5 | 28.5 | 51 |
| 120 | 5/8"-18UNF | 7.5 | 28.5 | 51 |
| 120 | 1/2"-14UNF | 7.5 | 28.5 | 51 |
| | | | | |
| 120 | M16X1.5 | 13 | 28.5 | 58.7 |
| 120 | 3/8"-18NPT | 13 | 28.5 | 58.7 |
| 120 | M18x1.5 | 13 | 28.5 | 58.7 |
| 120 | 5/8"-18UNF | 13 | 28.5 | 58.7 |
| 120 | M14X1.5 | 13 | 28.5 | 58.7 |
| 120 | 1/2"-14UNF | 13 | 28.5 | 58.7 |
| 120 | M20X1.5 | 13 | 28.5 | 58.7 |
| | | | | |
| 120 | M14X1.0 | 10.7 | 41 | 71.5 |
| 120 | M14X1.5 | 10.7 | 41 | 71.5 |
| 120 | 1/2"-14NPT | 10.7 | 41 | 71.5 |
| 120 | M16X1.5 | 10.7 | 41 | 71.5 |
| 120 | M18X1.5 | 10.7 | 41 | 71.5 |
| 120 | 3/8"-18NPT | 10.7 | 41 | 71.5 |
| 120 | 5/8"-18UNF | 10.7 | 41 | 71.5 |
| 120 | M14X1.25 | 10.7 | 41 | 71.5 |
| 120 | 1/2"-14NPT | 10.7 | 30 | 68.5 |
| | | | | |
| 120 | 1/2"-14NPT | 8 | 30 | 54 |
| 120 | 1/8"-27NPT | 8 | 27 | 51.5 |
| 120 | M10X0.75 | 8 | 27 | 51.5 |
| 120 | 1/4"-18NPT | 8 | 27 | 51.5 |
| 120 | 3/8"-18NPT | 8 | 22 | 46.5 |
| 120 | M10X1.0 | 8 | 27 | 51.5 |
| 120 | M16X1.5 | 8 | 22 | 46.5 |
Sizes: for Oil temperature sensor
Temperature
Max(ºC) | Thread Spec | L1(mm) | L2(mm) |
| 150 | M14X1.0 | 28.5 | 51 |
| 150 | M14X1.25 | 28.5 | 51 |
| 150 | M14X1.5 | 28.5 | 51 |
| 150 | M16X1.5 | 28.5 | 51 |
| 150 | M18X1.5 | 28.5 | 51 |
| 150 | 1/4"-18NPT | 28.5 | 51 |
| 150 | 1/8"-27NPT | 28.5 | 51 |
| 150 | 3/8"-18NPT | 28.5 | 51 |
| 150 | 1/2"-14NPT | 28.5 | 51 |
| 150 | 5/8"-18UNF | 28.5 | 51 |
| | | | |
| 150 | M16X1.5 | 28.5 | 58.7 |
| 150 | 3/8"-18NPT | 28.5 | 58.7 |
| 150 | M18x1.5 | 28.5 | 58.7 |
| 150 | 5/8"-18UNF | 28.5 | 58.7 |
| 150 | M14X1.5 | 28.5 | 58.7 |
| 150 | 1/2"-14UNF | 28.5 | 58.7 |
| 150 | R3/8"-19 | 28.5 | 58.7 |
| 150 | M22X1.5 | 28.5 | 58.7 |
| | | | |
| 150 | M14X1.0 | 41 | 71.5 |
| 150 | M14X1.25 | 41 | 71.5 |
| 150 | M14X1.5 | 41 | 71.5 |
| 150 | M16X1.5 | 41 | 71.5 |
| 150 | M18X1.5 | 41 | 71.5 |
| 150 | 1/2"-14NPT | 41 | 71.5 |
| 150 | 3/8"-18NPT | 41 | 71.5 |
| 150 | 5/8"-18UNF | 41 | 71.5 |
| 150 | M20X1.5 | 41 | 71.5 |
| 150 | 1/2"-14NPT | 41 | 71.5 |
| 150 | M12X1.25 | 41 | 71.5 |
| 150 | 1/4"-18NPT | 41 | 71.5 |
| 150 | M22X1.5 | 30 | 68.5 |
| 150 | M16X1.5 | 41 | 71.5 |
| 150 | M14X1.0 | 41 | 71.5 |
