Gl Load Break Switch Disconnector Switch DC Isolator Switches

Name: Gl Load Break Switch Disconnector Switch DC Isolator Switches
Brand: all-electronics-online.com
SKU: 823373445
Availability: InStock
Rating: 4.4 (56 reviews)

Price:	US $ 10-35/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

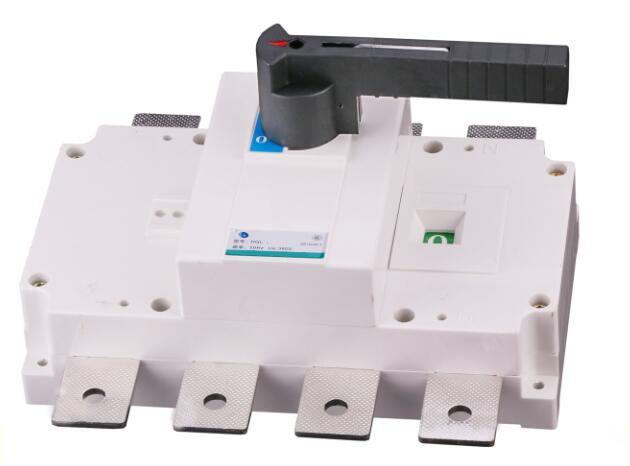

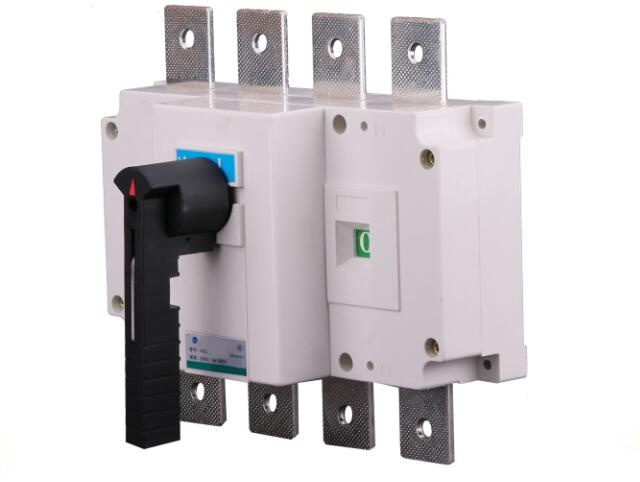

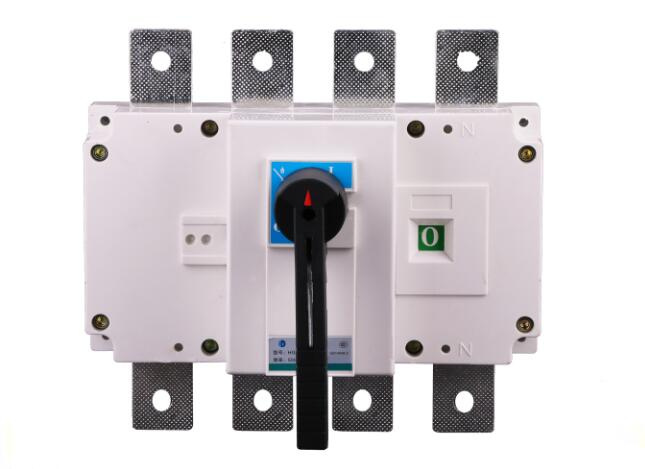

DC load Isolator Switch with IEC standard
Available from 160A-250A-630A(DC20) in 4P version, acting as a load break switches for DC current.

Especially indicated for installations for photovoltaic energy generators, which require a safe disconnection. Standard handle is supplied pad lockable in position "OFF" for maintenance. Bridging links available for series connections.

Also available under request.

Rated operational category

DC21/DC22 following IEC 60947-3

DC21: Resistive loads(moderate overloads included)

DC22:Resistive and reactive loads(inductive or capacitive)

Relevant characteristics for photovoltaic installations

Ui(V) rated insulation voltage (off load) I = 0A (equivalent to category of utilization DC20).

Uoc(V) Open circuit voltage of the photovoltaic system.

Uef(V) photovoltaic installation functioning voltage on load

Ief(A)Installation working current under load.

Icf(A) Short-circuit current of the photovoltaic installation.

In certain places of Pv Systems, reative component must be considered(cables, inverter, etc.).

The sizing of the switch must be done considering open circuit voltage as maximum operation voltage.

It necessary to comply with UI>Uoc. We recommend to set UI between 10 and 15% over Uoc. Ue≥Uef Ie≥Ief Ie≥Icf

Amps	Interruptor O-I 4P On-Off switch type	Direct handle	Shaft Extensions
160A	SGL-DC-160/4P	Black	handle same the direct one
250A	SGL-DC-250/4P	Black	handle same the direct one
630A	SGL-DC-630/4P	Black	handle same the direct one

ACCORDING WITH STANDARD IEC-EN-UNE 60947-1 & 60947-3
DC load switch datas					A		160		250		630
Rated thermalcurrent	Ith	In ambient at	40C		A		160		250		630
			50C		A		160		250		600
Rated insulation voltage AC20/DC20	Ui	50Hz,1min			V		1000		1000		1000
Rated dielectric strength					V		4000		5000		5000
Rated impulse withstand voltage	Uimp				KV		8		8		12
DC rated operational current	Ie	48V			A		DC23A 160		DC23A 250		DC23A 630
		110V			A		DC23A 160		DC23A 250		DC23A 630
		230V			A		DC23A 125		DC23A 250		DC23A 630
		400V			A		DC22A 50		DC23A 200		DC23A 500
		250V			A		DC21B 85		DC23A 200		DC23A 500
		600V			A		DC21B 65		DC22A 190		DC23A 300
		750V			A		DC21B 55		DC22A 185		DC22A 285
		800V			A		DC21B 50		DC22A 175		DC22A 270
		850V			A		DC21B 45		DC22A 175		DC22A 270
		900V			A		DC21B 40		DC22A 125		DC22A 200
Rated making and breaking capacity					A		DC21 900V 55		DC22 900V 125		DC22 900V 200
Short-circuit behavior
Short-circuit making capacity(peak value)			Icm	KA(pico)		10		14		26
Short0time withstand current(1 sec.)			Icw	KA rms		6		10		16
Conditions short-circuit current(ms value)				KA rms		100		100		100
Maximum cut-off current(peak value)				KA(pico)		20		33		39
Maximum power dissipation			A2s(*103)			198		1000		1600
Min.number of mechanical operations				Ciclos		30000		20000		10000
Min.number of electrical operations				Ciclos		DC21B 750V 300		DC22A 900V 1000		DC22A 900V 1000

Other our product series:

Manual transfer switch	1A~1600A, 3P/4P.
Automatic Transfer switch	1A~3200A, 2P/3P/4P.
Metal power distribution box	Metal box, size can color can be customized.
Plstic box	Different ways, competitive price, welcome to contact
Surge protector	B,C,D Class, AC, DC type you can choose. Different types and discharge current you choose.
Power supply	Hot used in Gepenerator system, 120W 12/24V. And other types
Current transformer	Different size you can choose, quality guarantee, hot used in Generator cabinets.
Push button	Metal or plastic, different types for power cabinet.

Q&A:
1) Q:Your company ? And products?
     A:   Golden electric is factory for Isolator switch, ATS,Inverter,surger protector device Enclosure, Cable glands, Power supply,etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
2)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3)   Q:   Your address ?
      A:    Locates in Guangzhou province, China.
4)   What's the standards?
       A:   Following IEC60947 standards, high quality stable working.
5)    What's about MOQ? Delivery time ?
       A: Without stock, as some customized per customer's special requirement. Normally takes 5-10days.
6)    What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7)    What's your contact information ?

Welcome your inquiry ^!^

Prod Model:	GL
Enclosure IP Rating:	IP65
Max Rated Operating Voltage:	DC1000V
Rated Short-Time Withstand Current:	8ka
Maximum Cable Cross Sections Solid:	4-16mm2
Enclosure Knockouts Size:	M20/25
Maximum Ambient Temperature:	-5~+65
Rated Current:	1A-3150A
Normal Speicifition:	600V 16A and 1000V 32A
Name Of The Product:	Gl Series DC/AC Isolator Switch
Advantage:	IP65 Rated Enclosure
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Run:	Plug-In
Switching Mode:	Single Throw-in
Certification:	CE
Series:	Two Three Four
Number Of Poles:	2p 3p 4p
Brand:	Golden Electric/OEM
Common Model:	Gn4
