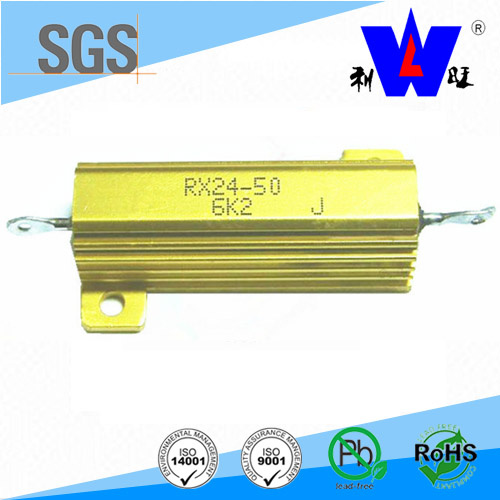

Gold Aluminum Housed Wirewound Power Resistor

Name: Gold Aluminum Housed Wirewound Power Resistor
Brand: all-electronics-online.com
SKU: 827309895
Availability: InStock
Rating: 4.5 (133 reviews)

Price:	US $ 0.7-10/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Aluminum Shell Underpan Installation Wire Wound Resistor (RX600)

RX24(RX600) type alluminum shell underpan installating wire wound resistor scools the surface of a trench, large volume low-power high temperature, easy to heat, etc.
Material

Encapsulant	silicone,cement
Core	ceramic steatite or alumina
Housing	aluminum with hard anodic coating
Element	copper alloys,nickel chromium alloys,iron chromium alloys,iron chromium aluminum alloys

Features

1.	high power rating,small size,ultra precison,high stability,strong constrcution
2.	the colors ( golden yellow,red,silver) are available
3.	standard winding & non-inductive winding are available
4.	conforms to the RoHS standard and the LEAD-FREE non lead standard
5.	for non-standard technical requirements and custom special applications,please contact us to discuss the details

. Features:
. Aluminum crust surface with good performance in heat radiation, suitable for cooling plate installation, can be used in the atrocious environment
. Small size and high power load
. High insulating capacity, encapsulation by non-flame inorganic material, good performance in vibration
. Multiple connection form will be easily to fix
. Widely used in power supply, transducer, elevator, arena audio, and high requirement equipment industry
. Resistance tolerance: ± 1%, ± 2% ± 5%, and ± 10%
. Power: 5, 10, 25, 30, 50, 75, 100, 150, 200, 250, 300, and 500W
. Tolerance: ± 1%, ± 2% ± 5%, and ± 10%
. Range: 1R to 100K.

If you find any interst in us, please feel free to contact us !

Prod Model:	RX24/RX600
Rated Power:	5W-250W
Color:	Golden Yellow
Quality Certification:	ISO9001 Ts16949
Environmental Certification:	ISO14000
Safety Certification:	CQC 03003095~3097
Other Certification:	RoHS
Product:	Golden Aluminum Shell Underpan Installation Wire W
Resistance:	Fixed Resistor
Function For Resistance:	Shunt Resistor
Material:	Wire-wound Resistor
Type:	Photoresistor
Brand:	Liwang

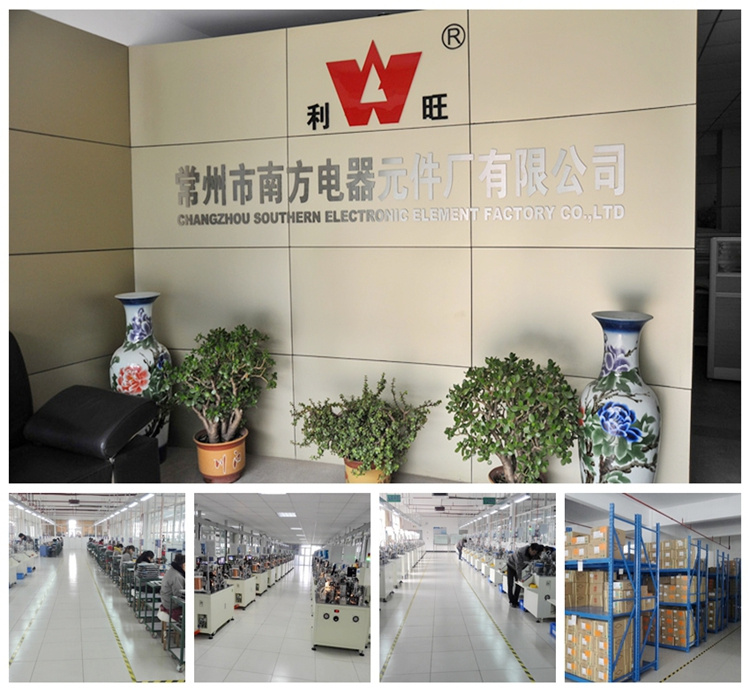

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
