| Prod Model: |
HPM10KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Type: |
by Air |
| Waterproof: |
Yes |
| Peakwattage: |
20kw |
| Rate Wattage: |
10kw |
| Application: |
Outboart,Motorcycle |
| Structure And Working Principle: |
Brushless |
| Operating Speed: |
2000-6000rmp |
| Excitation Mode: |
Permanet Magnet |
| Type: |
BLDC |
| Certification: |
CE |
| Brand: |
Golden Motor |
Product Description
We are leading manufacturer of general-purpose brushless dc (bldc) motors with power range from 200w to 20kw, and the voltage range from 24v to 120v dc. It has been widely used for many applications, eg., auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional dc motors.

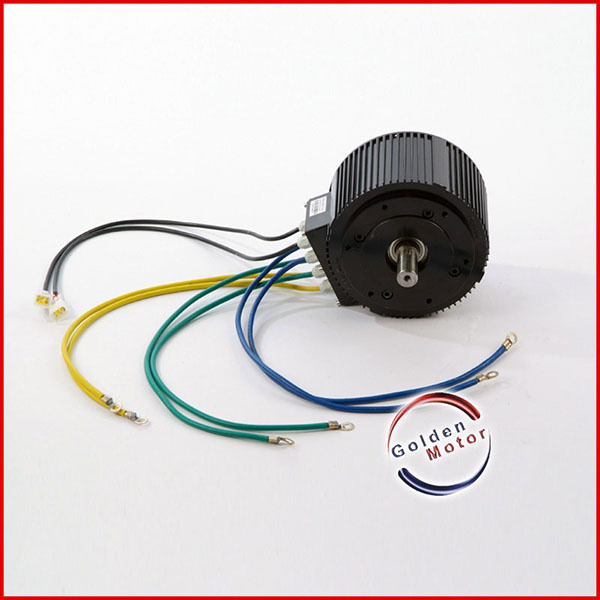

10KW motor product features:
Long working life (>20, 000 hours)
Low noise, high torque
Excellent performance characteristics
High efficiency (>90%)
High reliability
Rated voltage: 48v/72v/96v/120v
Peak wattage: 20kw
Rated speed: 2000- 6000 rpm
Stepless speed control, dual-direction
| Item no. | Voltafe | wattage | Peak wattage | Phase Resistance (Milliohm) | Phase Induction(100KHZ) | Speed | Length (height) | Diamete | Net weight |
| HPM10KL | 48V/72V/96V/120V | 8KW-20KW | 20KW | 3.1/48V; 6.0/72V; 18.0/120V | 34uH/48V; 77uH/72V; 252uH/120v | 2000-6000rpm (customizable) | 170mm | 206mm | 17KGS |
