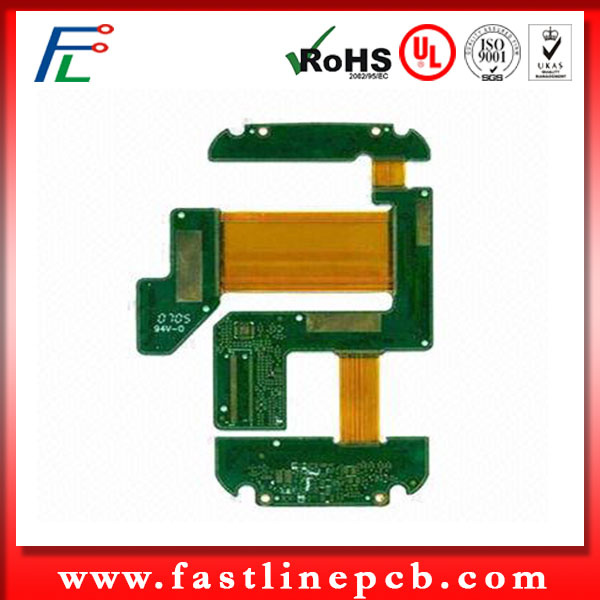

Competitive Price 4 layers Rigid Flex PCB Prototype with 1oz copper thickness
1 Layer to 26 Layer Printed Circuit Board for Electronic Products
Fastline has many years experience on Rigid flex PCB manufacturing . We could make 2-8 layer rigid flexible PCB . Welcome to send enquiry to us !
Company Information below :
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands.
PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality, competitive Price & Best Service
4.100% E-test
Rigid Flex PCB Circuit board capability :
| Technology and Capabilities - Fastline's Rigid Flex Circuit Boards Solutions |
| Material | Polyimide / Polyester |
| Counts | Flex: 1~8L; Rigid-Flex: 2~8L |
| Board Thickness | Min.0.05mm ; Max. 3.0mm |
| Copper Thickness | 1/3 oz --- 2 oz |
| CNC Drill Size (Max) | 6.5mm |
| CNC Drill Size (Min) | Flex: 0.15mm |
| Holes Location Tolerance | ±0.05mm |
| Coverlay Drill Size (Min) | 0.6mm |
| Hole to Coverlay Opening Windows (Min) | 0.15mm |
| Min Line Width / Spacing | 0.075/0.075mm |
| Aspect Ratio | 61 |
| Copper Thickness on Hole Wall | Flex:12-22μm |
| Min Pad Size | φ0.2mm |
| Etch Tolerance | Finished line width tolerance ±20% |
| Pattern Registration Tolerance | ±0.1mm (Working Panel Size: 250*300mm) |
| Coverlay Registration Tolerance | ±0.15mm |
| Solder Mask Registration Tolerance | ±0.2mm |
| Solder Mask to PAD | Non photosensitive: 0.2mm
Photosensitive: 0.1mm |
| Min. Solder Mask Dam | 0.1mm |
| Misregistration Tolerance for Stiffener, Adhesive, Glue paper | ±0.30mm |
| Surface Finish | Plating Ni / Au ; Chemical Ni / Au ; OSP |
