| Prod Model: |
RX20/ZG11 |
| Environmental Certification: |
ISO14000 |
| Quality Certification: |
ISO9001: 2008 |
| Resistance Tolerance: |
5%,10% |
| Color: |
Green |
| Product Name: |

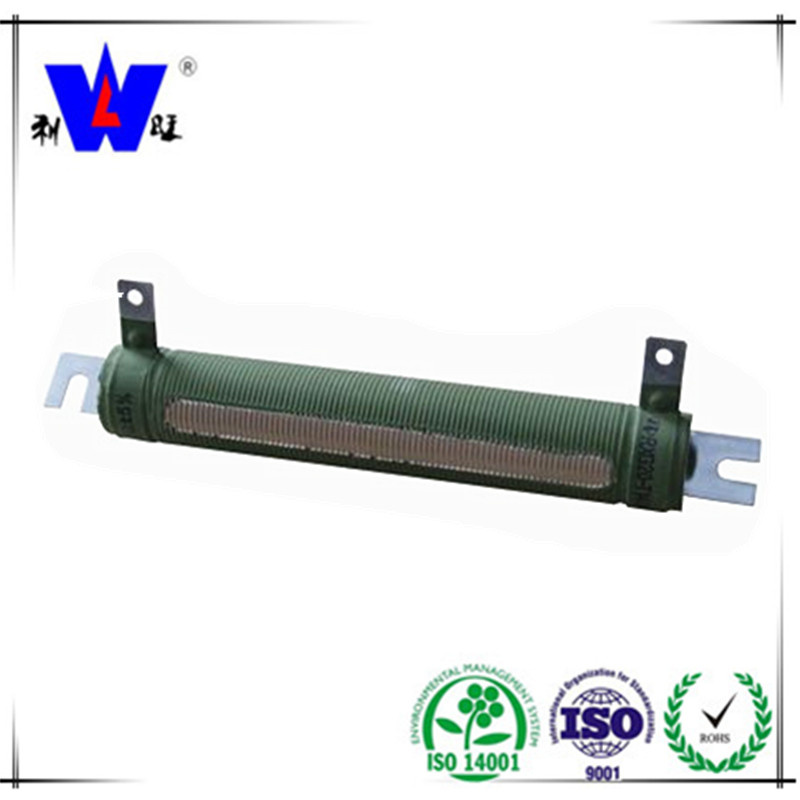

Zg11 Type Enamel Wire Wound Variable Resistor |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Shunt Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Surface Mount |
| Brand: |
Liwang |
Product Description
Product description of Zg11 Type Enamel Wire Wound Variable Resistor with RoHS
Model | Rated
power
(W) | Overall dimensions(mm) | Weight(g) |
| L | D | d | H | h | L1 | K | b | t | d1 | c | Fixed | Adjustable |
| RX20 | 8W | 35 | 14 | 5.5 | - | 28.5 | - | - | 3.5± 0.8 | 4.5 | 2 | 8± 1.5 | 23 | - |
| 10W | 41 | 14 | 5.5 | 31 | 28.5 | 20 | 6± 2 | 27 | 34 |
| 15W | 45 | 17 | 8 | 34 | 31 | 23 | 36 | 42 |
| 20W | 51 | 17 | 8 | 34 | 31 | 30 | 44 | 52 |
| 25W | 51 | 21 | 12 | 39 | 35 | 30 | 57 | 67 |
| 30W | 71 | 21 | 12 | 39 | 35 | 44 | 80 | 90 |
| 40W | 87 | 21 | 12 | 39 | 35 | 57 | 98 | 110 |
| 50W | 91 | 29 | 20 | 47 | 43 | 60 | 7± 2 | 4.5± 1 | 6 | 2.5 | 132 | 144 |
| 75W | 140 | 29 | 20 | 47 | 43 | 110 | 253 | 265 |
| 100W | 170 | 29 | 20 | 47 | 43 | 140 | 286 | 298 |
| 150W | 215 | 29 | 20 | 47 | 43 | 185 | 385 | 397 |
| 200W | 215 | 38 | 25 | 60.5 | 58 | 160 | 7± 2 | 8± 1 | 9 | 4 | 11± 1.5 | 475 | 495 |
| 200/250W | 266 | 30 | 16 | 50 | 47 | 210 | 510 | 530 |
| 300W | 266 | 36 | 20 | 58 | 58 | 210 | 8± 2 | 630 | 650 |
| 400W | 250 | 54 | 30 | 76.5 | 79 | 180 | 10± 2 | 1000 | 1020 |
| 500W | 300 | 54 | 30 | 76.5 | 79 | 230 | 16 | 8 | 17± 1.5 | 1340 | 1360 |
| Model | Rated power(W) | Resistance range(Ω ) | Admissible resistance deviation (%) | Temperature coefficient
(× 10 -6 /tm) |
| Fixed | Adjustable(T) |
| RX20 | 8W | 5.1~3.3K | - | ± 1
± 5
± 10 | ± 250 |
ZG11 type enamel wire wound resistor
type | rated power(W) | resistance range(Ω) | dimensions(mm) |
| D | d | L | L1 | B1 |
| ZG11-25 | 25 | 10-3.6K | <26 | 13±0.9 | 50±1.5 | 42±2.5 | 21±4 |
| ZG11-50 | 50 | 10-8.2K | <26 | 13±0.9 | 90±2.5 | 80±3.5 | 21±4 |
| ZG11-75 | 75 | 10-10K | <26 | 13±0.9 | 160±3 | 148±5 | 25±4 |
| ZG11-100 | 100 | 10-15K | <33 | 18±1 | 170±3 | 155±5 | 25±4 |
| ZG11-150 | 150 | 10-20K | <33 | 18±1 | 215±4 | 203±6 | 25±4 |
| ZG11-200 | 200 | 10-25K | <33 | 18±1 | 267±4 | 250±6 | 25±4 |
| ZG11-300 | 300 | 10-39K | <45 | 24±1.2 | 220±4 | 200±8 | 45±5 |
| ZG11-400 | 400 | 10-50K | <45 | 24±1.2 | 332±5 | 310±8 | 45±5 |
| ZG11-500 | 500 | 0.2-8.2K | <55 | 30±1.5 | 300±5 | 290±8 | 48±5 |
| ZG11-800 | 800 | 0.2-9K | <65 | 40±1.5 | 300±5 | 290±8 | 58±5 |
| ZG11-1000 | 1000 | 0.5-10K | <70 | 45±1.5 | 300±5 | 290±8 | 60±5 |
| ZG11-1200 | 1200 | 1-12K | <70 | 45±1.5 | 380±5 | 365±8 | 60±5 |
| ZG11-1500 | 1500 | 1-15K | <70 | 45±1.5 | 420±5 | 405±8 | 60±5 |
| ZG11-2000 | 2000 | 2-18K | <70 | 45±1.5 | 520±5 | 500±8 | 60±5 |
| ZG11-2500 | 2500 | 5-20K | <70 | 45±1.5 | 600±5 | 585±8 | 60±5 |
| ZG11-3000 | 3000 | 5-25K | <85 | 48±1.5 | 605±5 | 585±8 | 68±5 |
Headline |
Help you quickly complete the new product's whole
process within 3 days from design production to delivery. |
Basis of title |
The entire process is completed internal, in order to
ensure that you can get faster delivery service
than from any other supplier. |
We introduce the most advanced technology
continually to meet the most stringent quality standards,
every product is tested,and returning rate <0.01%,
so that we can meet the needs of buyers from more than 70 countries. |
Other advantages |
1,Complete Certification and standards: UL;
ISO 9001; ISO 14001; SGS; REACH; RoHS |
2,Factory Area: 13000 square meters |
3,Production capacity: 30,000,000 pieces of
transformers, inductors, coils,resistors |
4,Service: provide customers with the most
satisfactory service to solve the product difficult |
5,"3 fast": Replying fast; Offering fast; Delivering fast |
company profile |
Changzhou Southern Electronic Element Factory Co., Ltd.
was founded in 1989 and is a high-tech company
which integrates production, design, R&D, and sale.
We specialize in developing many
kinds of electronic components. Include electronic
transformers, SMD power, inductors coils,
fixed inductors, toroidal coils, common mode chokes, resistors and transformers.We are ISO 9001 and ISO 14001 certified and our
products come with UL, RoHS and SGS marks.
For more details, please contact us without hesitation. |
