Good Quality and Low Price Lzck322-10 Split Core Current Transformer

Name: Good Quality and Low Price Lzck322-10 Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 722229242
Availability: InStock
Rating: 4.9 (125 reviews)

Price:	Negotiable/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Descripción del producto

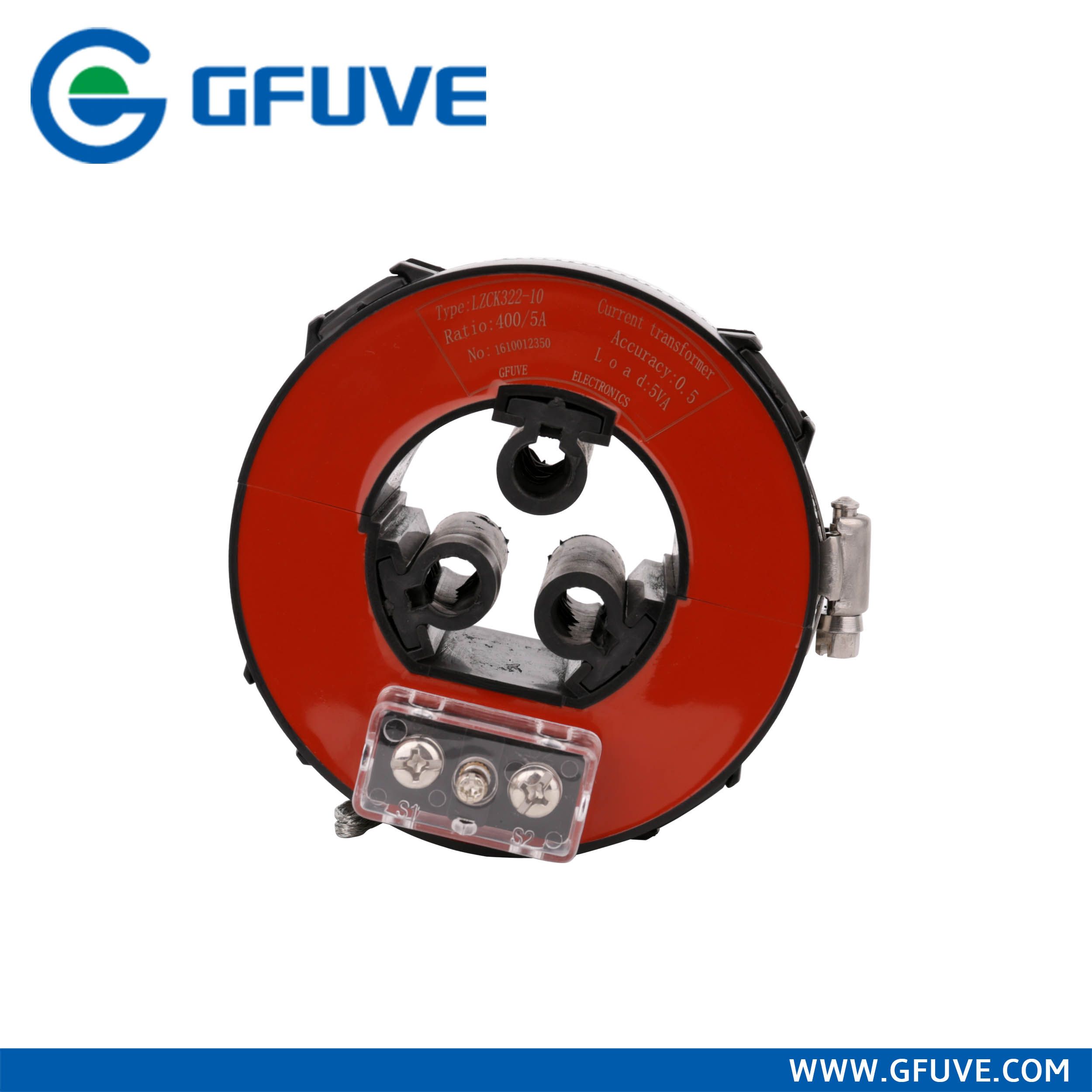

LZCK322-10 Split Core Current Transformer

LZCK series split core current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus...and cable distribution boxes. The transformer can be directly installed at the inlet and outlet cables.The slice is imported silicon material. The semicircular ring core and secondary windings are vacuum poured by insulated resin.

Selection guide

Modelo	Rango de corriente nominal primaria	Rango de carga nominal	Apertura (mm)	Descripción (mm)	Peso (kg)
LVZCK-36	100-600A	≤10VA	Φ36	128×120×84	1.2
LZCK-36	100-1000A	≤10VA	Φ36	128×120×84	1.5
LZCK-55	100-1250A	≤10VA	Φ55	180×138×52	2
LMCK185-10	300-5000A	≤25VA	Φ185	350×283×55	4.5

SERVICIO RAPIDO
Atencion rapida y eficiente todos los dias, incluso festivos. Tambien disponemos de servicio de urgencias para aquellos casos que no puedan esperar mas de media hora en ser solucionados. Atendemos todas las zonas de la pais en todo el mundo.

SERVICIO 24 HORAS

SIEMPRE ESTAMOS DISPONIBLES DE SU NECESIDAD

MAS INFORMACION POR FAVOR CLICK NUESTRA WEBSITE: http://gfuve.com/

Prod Model:	LZCK322-10
Standards:	IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006; an
Key Word:	Current Transformer
Accuracy Class:	0.5s, 0.5%, 1%, 3%
Range Of Primary Rated Current:	30-600A
Rated Frequency:	50/60Hz
Rated Secondary Current:	5A or 1A
Instrument Security Factor:	Fs≤10
Aperture (mm):	Φ55
Rated Load:	≤10va
Weight (Kg):	1.6
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
