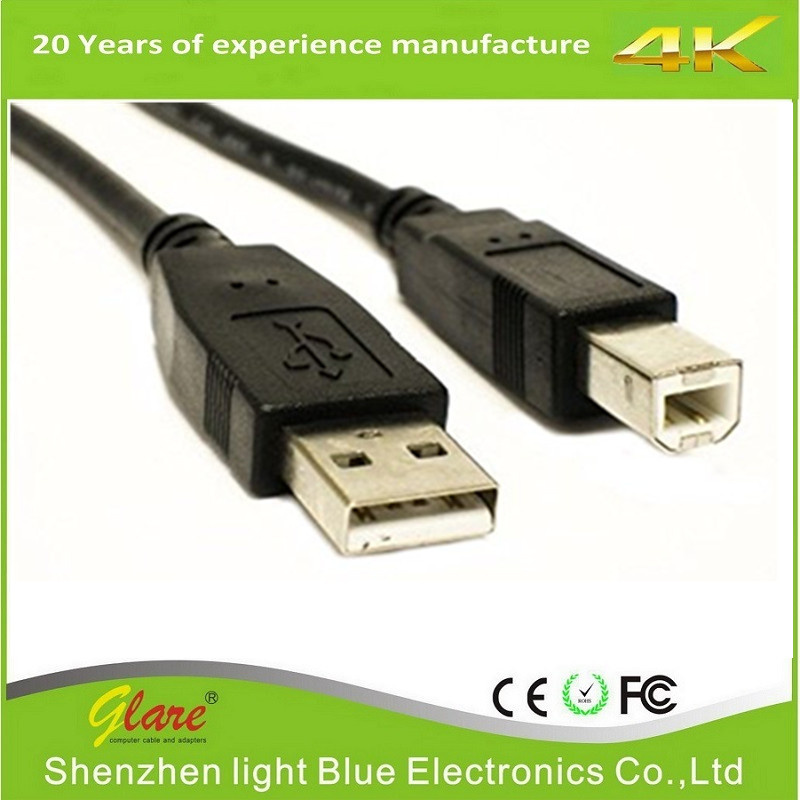

Good Quality USB Printer Cable
| Price: |
US $ 0.3-0.4pcs |
| Min Order: |
1000pcs |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Good quality USB Printer Cable| 1. USB A/M to USB B/M usb cable for printer |
| 2.Length=1M,2M,3M,5M,10,Customized |
| 3.Compatible is independent |
| 4.Low loss and low noise |
| 5.Plug & Play compatible |
| 6.Compatible with phone with a shell |
| 7.Metallic braid & Mylar foil shielding to reduce EM/RF interference |
| 8.Twisted pair wire construction for consistent data transmission |
| 9.UL Listed - UL2725 |
| 10.ROHS Compliant |
Electrical Specifications
1.100% open & short test; |
| 2.Hi-Pot: DC 300V 10ms; |
| 3.Insulation Resistance: 10M OHM /300V Min; |
| 4.Contact Resistance: 0.01 OHM Max; |
| 5.Shield upon 95% braid; |
| 6.Working Temperature: -25oC ~ +85oC. |
Mechanical
Over mold: | PVC 80Pa ,UL94V-0 Black; |
| Pre mold: | PE Low Density; |
| Contact: | Copper Alloy; |
| Insertion Force: | 35 N Max; |
| Withdraw Force: | 10 N Min. |

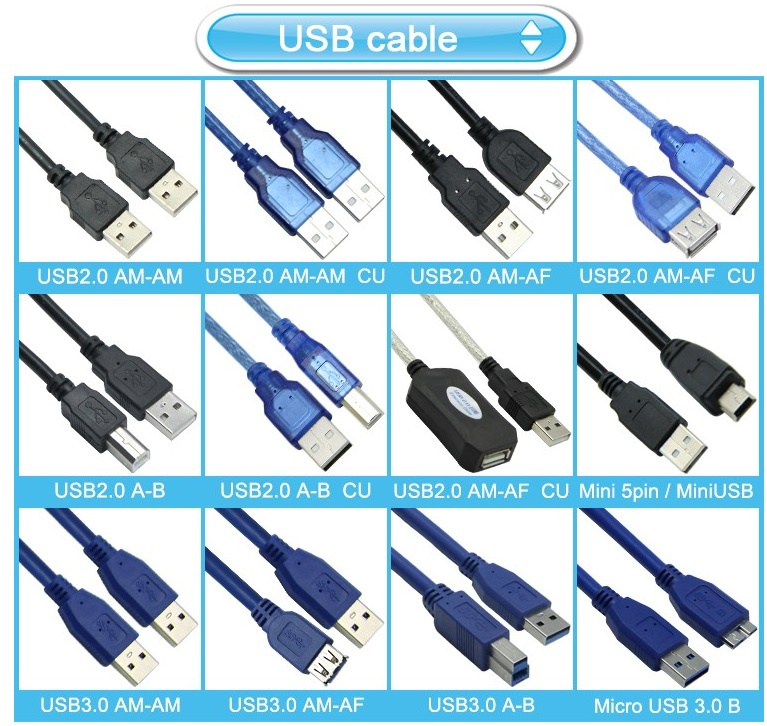

Connector Type | USB AM TO AM,USB AM TO AF,USB AM TO BM,USB AM TO Mini 5Pin,USB AM to Micro 5Pin,etc |
| USB End | USB2.0.USB3.0 under customer's request |
| Available gauge | 24/26/28/30AWG(optional) |
| Conductor | CCA, Bare Copper or Tinned Copper |
| Cable Diameter | OD:3.8/4.0/4.5/5.0mm |
| Connector Finish | Nickel or Gold Plated |
| Shielding | Aluminum Foil and Braid |
| UL Rated | Yes-UL Rating,UL2725/2835 USB 2.0/3.0 version |
| Ferrite Cores | can be optional under customer's request |
| Jacket Type | Xtra-Flex PVC |
| Available length | 1m to 10m,optional |
| RoHS Compliant | Yes |
| Bandwidth or Speed | Supports Hi-Speed, 480 Mbps/ 4.8G Mbps |
| Application | computers and peripherals such as printers, scanners, cameras, keyboards, mice and other digital devices,etc |
Product Features:
1).USB 2.0 cables are backwards compatible as they can carry a USB 1.0 and 1.1 signal. USB cables are used to connect devices such as digital cameras, digital video cameras, scanners, printers, web cams, mice, keyboards, joysticks, network connections, etc.
2).Gold-plated or Nickel-plated connector resists corrosion and ensures an optimum connection for maximum signal transfer.
3).The maximum length for a single USB cable is 15ft. To get more than 15 ft you will need to boost the signal with a repeater Cable (Part # UC-50200) or Hub.
4).Shielded under mold protects against unwanted EMI/RFI interference
Hot selling shielded cable 2.0 for usb printer cable | Product Name | USB printer cabble |
| Connector Type | AM/BM for printer |
| Conductor | Bare Copper or Tinned Copper |
| Color | White, Black, Blue, Transparent |
| Connector Finish | Gold plated or Nickel plated |
| Length | Within 10M customized |
| Data Speed | USB 3.0 super speed of up to 5Gbps supported |
| Compatibility | Backward compatible with USB 1.1&2.0 |
| Outer Diameter | 4.5mm-6.0mm |
| Lines | Standard 9 lines |
| Ferrite Filter | Optional |
product picture
Retive usb cable 2.0version
Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.
Package information 1pcs/poly bag
250pcs/carton
carton size:46*30*25cm
FAQ
With years of export experience along with excellent quality, advanced services and competitive prices, YITAILI has won numerous customers' trust and support.More detail please contact us.
Payment term?
(1)Payment:T/T only,30%deposit,the balance before delivery.
(2)Production leading time:10-15days,see qty to confirm.
(3)Shipping out:Guangzhou or Shenzhen
Certification
| Prod Model: |
usb am to bm |
| Cable Use For: |
Printer |
| Cable Conductor: |
28AWG Bare Copper |
| Cable Material: |
PVC and Copper |
| Cable Length: |
as Customer's Request |
| Cable Color: |
Black, Blue Color |
| Cable Warranty: |
12 Months |
| Cable Packing: |
Poly Bag, Blister, Gift Box |
| Cable Certification: |
Ce, RoHS |
| Application: |
Mobile Phone |
| Interface Type: |
USB |
| Material: |
Copper |
| Pin: |
4Pin |
| Feature: |
Waterproof |
| Power Cable Type: |
Two-pin |
| Shape: |
Round |
| Computer Cable Type: |
Power Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE, MHL Cable, (DP)Displayport Cable, SATA cable, Network LAN Cat cable, AV cable, Coaxial cable, DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, , which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001: 2008, ISO14001: 2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge

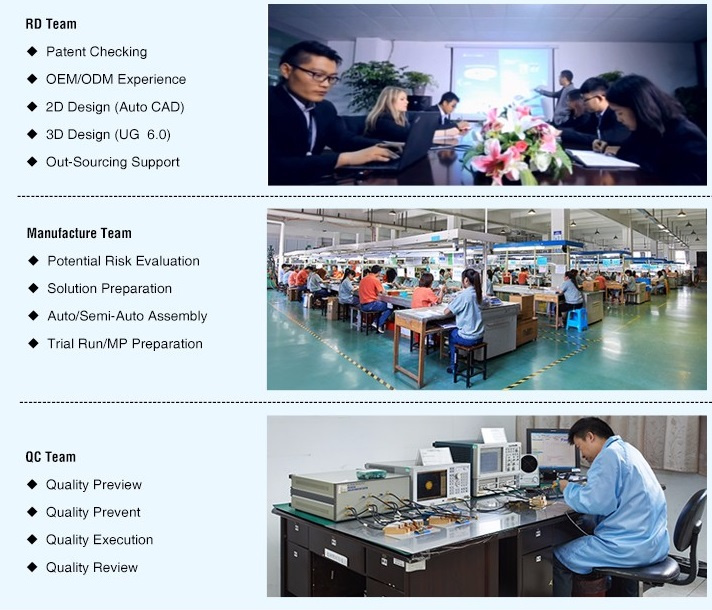

Our factory With strong technical capabilities, complete set of equipment and facilities, advanced technology and perfect testing and inspecting measures, we specialize in designing, developing, manufacturing and marketing connection cables which are applied to all kinds of computer, network, communication, car, medical resource, remote monitoring and household appliances. We can also undertake OEM orders of processing various special fiber optic cables. Our products sell well in domestic and foreign market and are widely used by many famous corporations.
We have set up a functional modern business management system and carried out ISO9001: 2000 quality management system for many years. We are authorized with independent import and export rights. Our products have obtained many product safety certificates including CCC (China) and UL (USA).
We will try our best to satisfy customers' requests. We sincerely welcome all clients to cooperate with us hand in hand for a wonderful future!
