Gphq Ms 1HP 0.75kw Asynchronous Induction Motor
| Price: |
US $ 5-100/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |

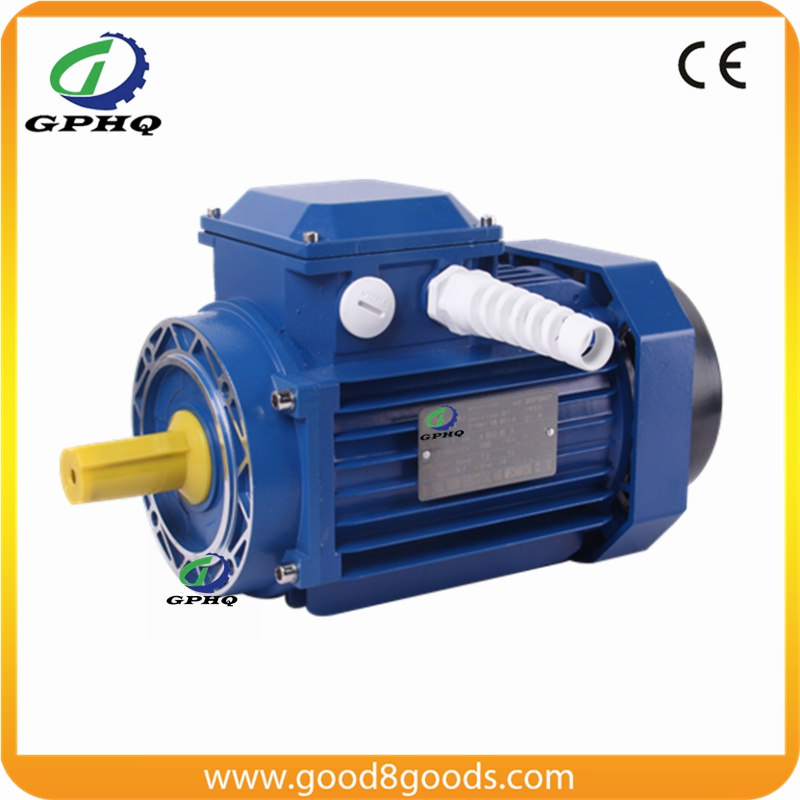

MS aluminum ac motor
MS Series Aluminum Housing Three Phase Induction Motor adopts the latest design and high quality material and are conform to the IEC standard in function, appearance, output and other requirements.
The efficiency of MS motor meets EFF2 standard in E. U., and can reach the EFF1 standard if requested. MS motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.
MS motor is died cast into mounding shape by aluminum-alloy. The base foot can be removable. Various mounting types are available for MS motor.
MS motor is suitable for common working environment and machinery without special requirement, like air-compressor, pump, fan, medical apparatus and instruments, small machines etc. | Power: | 0.55kw-15kw | Voltage: | 380/415/440V( can can done as your need) |
| Frequency: | 50/60hz | Enamelled Wire: | Copper Wire (Can Done Aluminum wire as Your Need) |
| Insulation Class: | F | Mounting Way: | B3 Foot /B5 Flange /B35 Foot and Flange/ B14 flange/B34 foot and flange |
| Protection Grade: | IP55 | motor body : | aluminum of ac motor |
Our electric motor Advantage
1. High efficiency, low noise ac motor
2. 100% copper wire & 100% output moteur electrique.
3. Nice painting after installing motor
4. Reasonable price with high quality and kind service .
5. Used for machinery without special requirements.
6.longer working life, easy construction,convenient installation and repairmen

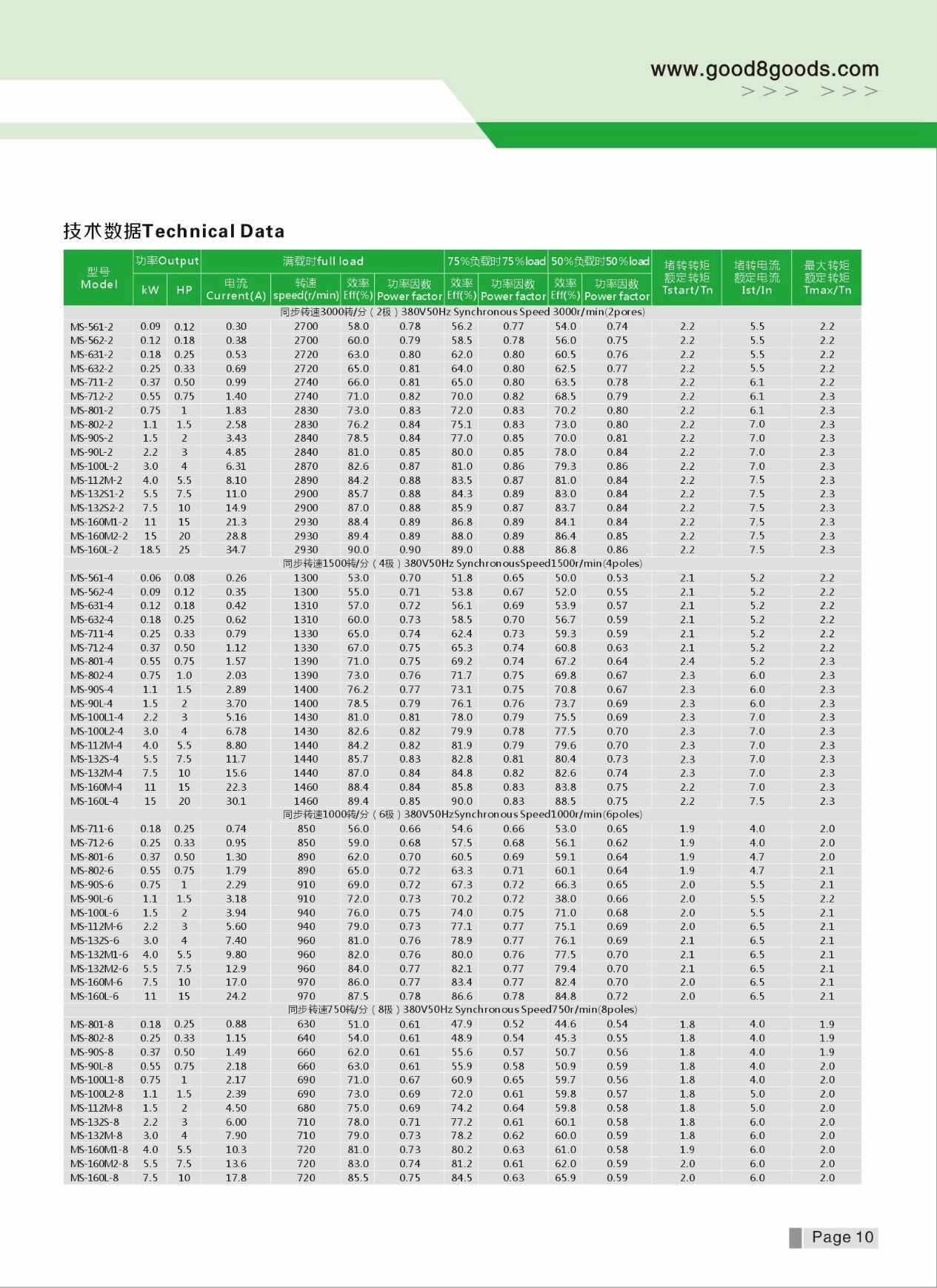

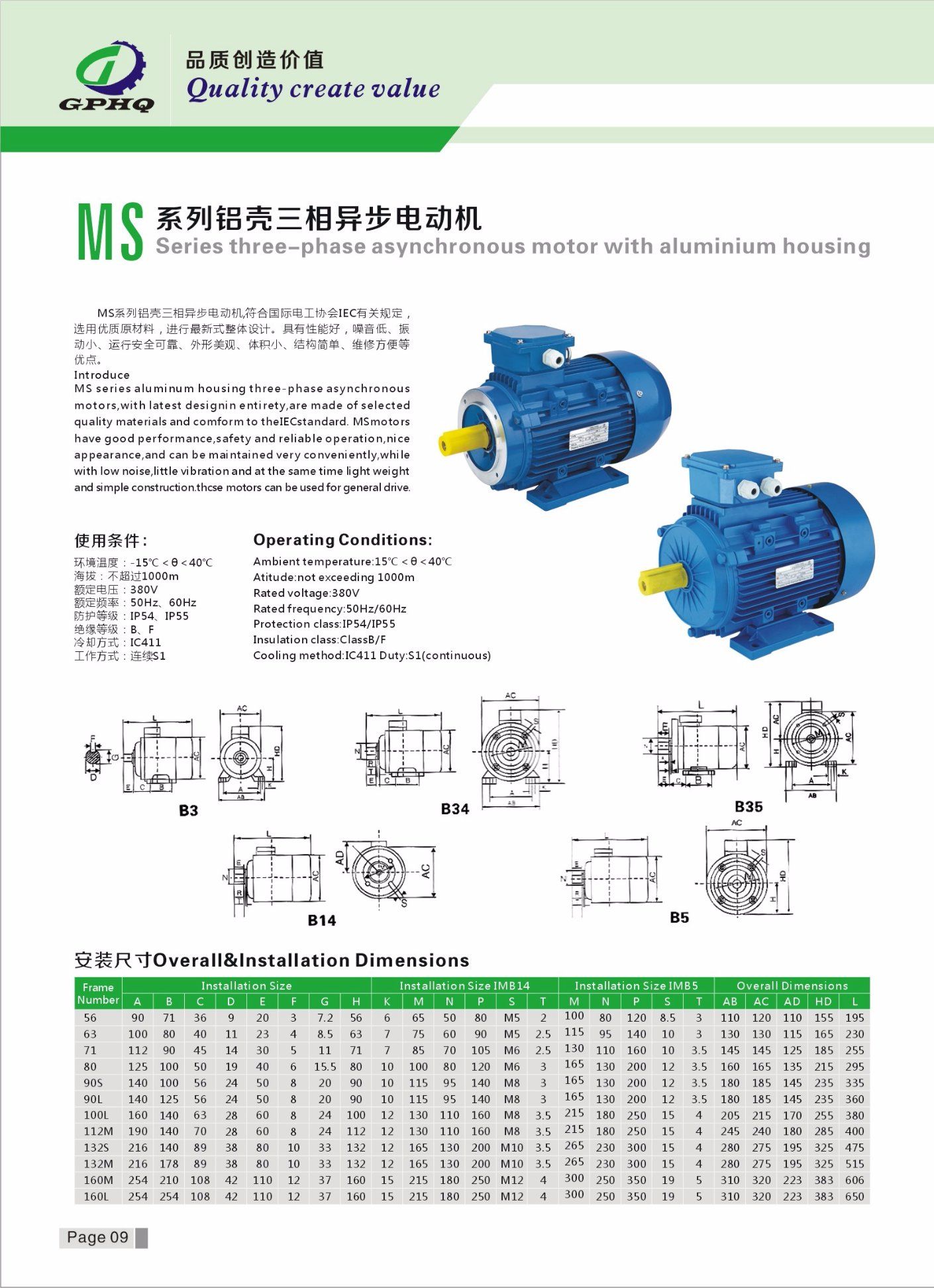

If there is any question, please don't hesitate to contact with me (EVA), U can send us your inquiry. And you will get response in 1 working day. MOTOR CATALOGUE :
PRODUCING PROCESS:

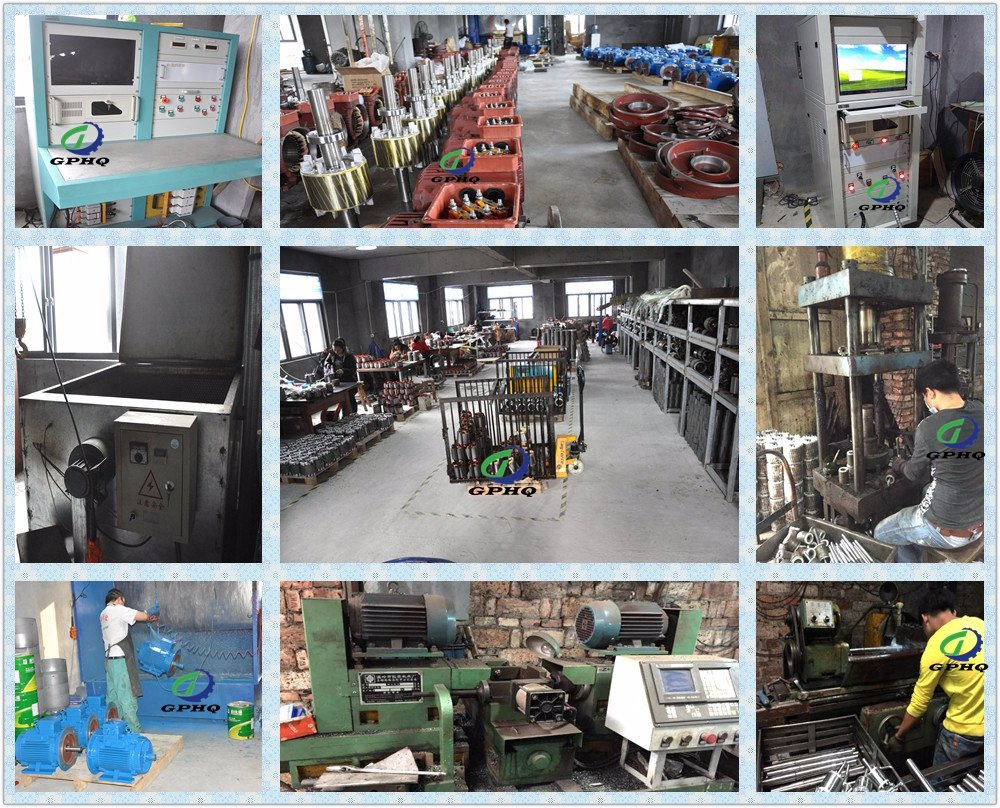

WORKSHOP EQUIPMENT:
CONTACT US :
FAQ
1, Q:what's your MOQ for ac synchronous motor ?
A: 5pc is ok for each type electric motor
2, Q: What about your warranty for your three phase motor?
A: one year ,but except man-made destroyed
3, Q: which payment way you can accept ?
A: TT, western union .
4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.
5, Q: how about your packing of induction motor ?
A: carton or plywood case ,if less one container , we can pack all goods with pallet for small size motor
6, Q: What information should be given, if I buy electric ac motor from you ?
A: rated power, speed or pole ,type ,voltage , mounting way , quantity , if more is better ,
| Prod Model: |
MS MOTOR |
| Motor Power: |
0.55kw-315kw |
| Output Power: |
100% Output Power |
| Voltage: |
Common 380V /415V/ 440V(Also Done as Your Need) |
| Enamelled Wire: |
Copper Wire ( Also Done Aluminum as Your Need) |
| Frequency: |
50/60Hz |
| Color: |
Done as Your Need (Connon Blue /Silver) |
| Mouting Way: |
B3 Foot /B5 Flange /B35 Foot and Flange |
| Insulation Class: |
F |
| Protection Grade: |
IP55 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Number Of Poles: |
2p 4p 6p 8p |
| Certification: |
Ce |
| Brand: |
Gphq |
