GPS+GSM Dual Band Combination Antenna 30m Copper Wire SMA Plug
| Price: |
US $ 3.65-4/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
Western Union,Paypal,Money Gram |

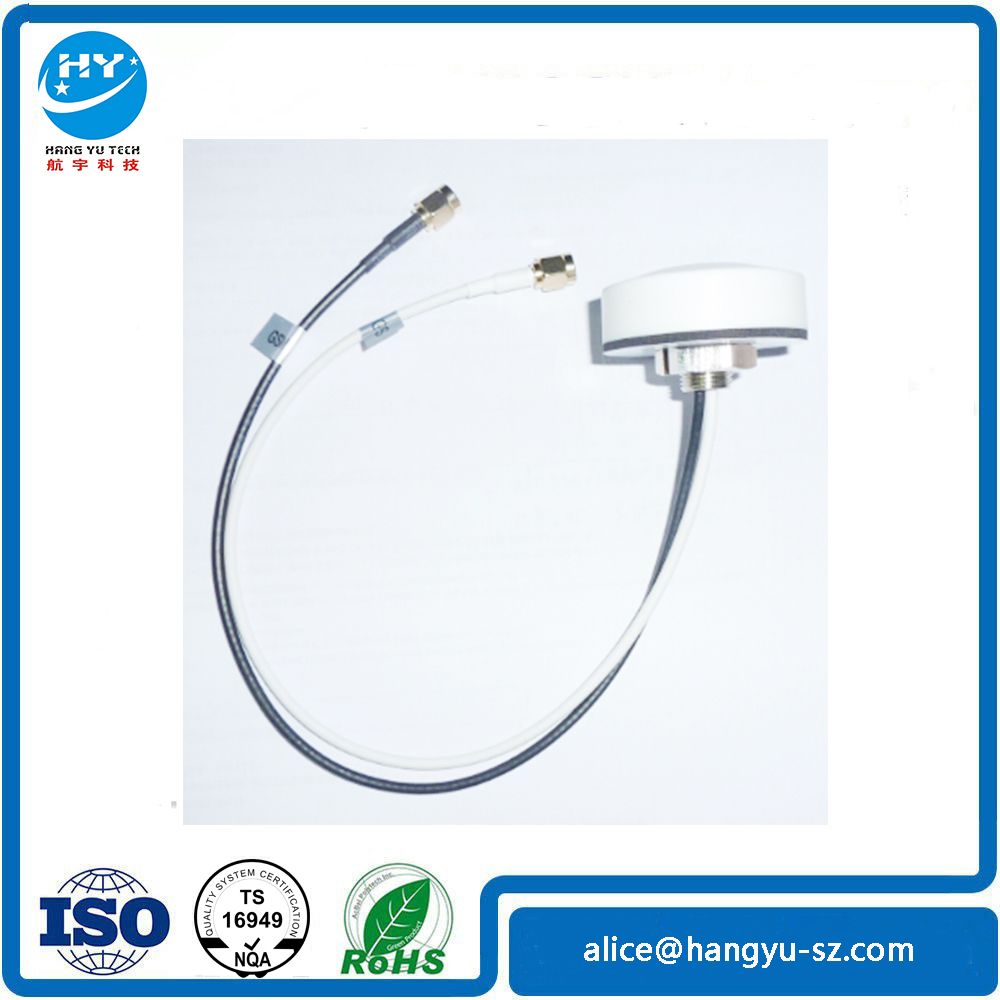

GPS+GSM Dual Band Combination Antenna 30m Copper Wire SMA Plug
| Product Name | GPS+GSM+3G Combined Antenna |
| Model | HYA21101 |
| Descriptions | It is applied to car navigation, logistics positioning and so on. |
|
| Electrical Specification |
| Frequency Range-MHz | 1575.42 | 824-960/1710-2170 |
| Bandwidth-MHz | 10 | 136/460 |
| Gain-dBi | 28 | 2 |
| VSWR | ≤1.5 | ≤2.0 |
| DC Voltage -V | 3-5V | ---- |
| Noise Figure -dBi | ≤1.5 | ---- |
| Nominal Impedance-Ω | 50 |
| Polarization | RHCP | Vertical |
| Max. Power-W | 50 |
| Mechanical Specification |
| Cable Length -cm | 30 |
| Connector | SMA Male for GPS, GSM or customized |
| Antenna Dimension-mm | Φ46×15 |
| Weight-g | 160 |
| Housing Color | White |
| Mounting | Screw |
| Temperature-ºC | -40~+60 |
| Humidity-% | 5~95 |
Please contact us if you need other type connector.like MCX,MMCX,SMA,IEC and so on.
Packaging & Shipping
48*30*27cm/ctn
42*25*14cm/ctn
29*23*23cm/ctn
20*18*10cm/ctn
After receive payment within 7-9 working days
Our Services
1. Antennas factory, fast delivery.
2. Free sample service.
3. OEM or ODM services are also acceptable.
Company Information
Factory Size (Sq.meters): 5,000-7,000 square meters
Factory Location: No.30 West Shibi Rd ,Liulian Community,Pingdi Avenue,518117,Longgang District,Shenzhen,China

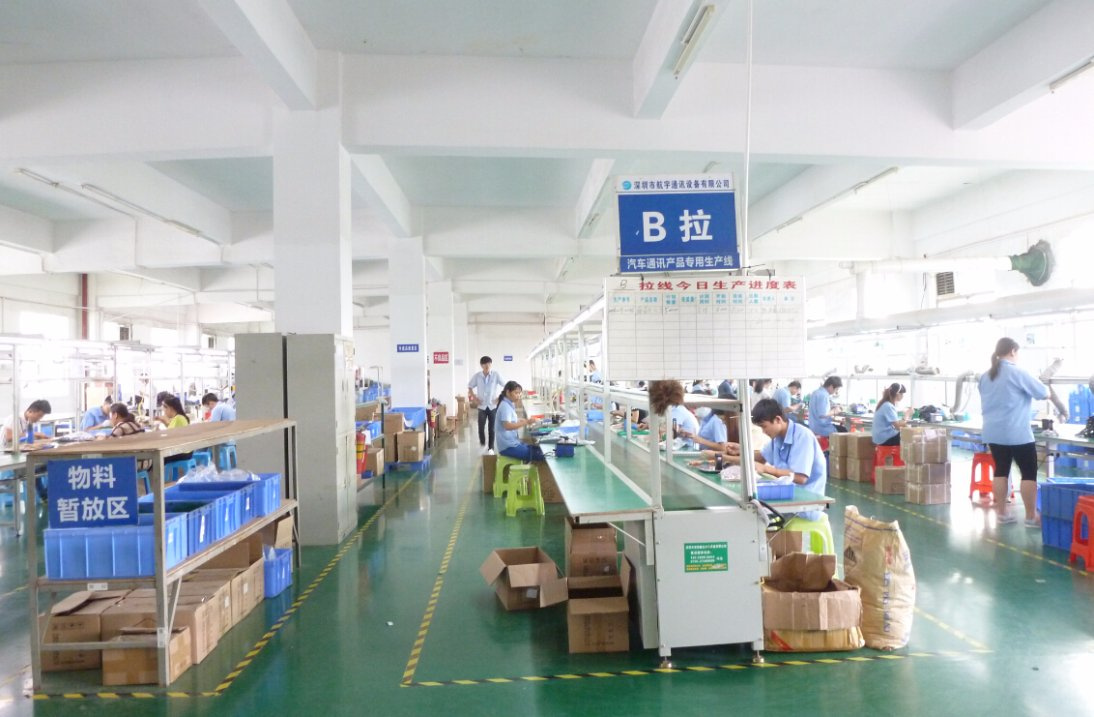

Number of Production Lines: 12
Number of R&D Staff: 11 - 20 People
Number of QC Staff: 21 - 30 People
Number of Employee: 200 People
Contract Manufacturing: OEM&ODM Service Offered
Certififate: IS09001:2008 & TS16949
| Prod Model: |
HYA21101 |
| Frequency: |
1575.42;824-960/1710-2170MHz |
| Lna Gain: |
28dBi |
| Noise Figure: |
Below 1.5 |
| Polarization: |
Rhcp |
| Impedance: |
50ohms |
| DC Voltage: |
3-5V |
| Cable Length: |
30cm White Cable for GPS, Black Cable for GSM |
| Connector: |
SMA Male for GPS, GSM |
| Dimension: |
46*15mm |
| Packing: |
100PCS/CTN,6kg/CTN |
| Usage: |
Car Antenna |
| Directionality: |
Omnidirectional Antenna |
| VSWR: |
1.5~2 |
| Material: |
Plastic |
Shenzhen Hangyu Communications Equipment Co., Ltd. is a company engaged in the communications antenna research and development, production, sales, professional services in one of the professional high-tech enterprises, Our company has the full import of the ISO9001: 2008 international quality system certification, And passed TS16949 system certification mainly products are GPS navigation antennas, GPS+GLONASS Antenna, Security Series antennas, 3G mobile communications antennas, microwave antennas, wireless antennas, car antennas, digital television antennas, TD-CDMA base station antennas, WLAN / WIMAX series 2.4G, 3.5G, 5.8G spread spectrum antennas, indoor coverage antennas, communication antenna accessories, and other series of over two hundred varieties. Since company was founded, it has been producing a variety of antenna design for dozens of companies at home and abroad.

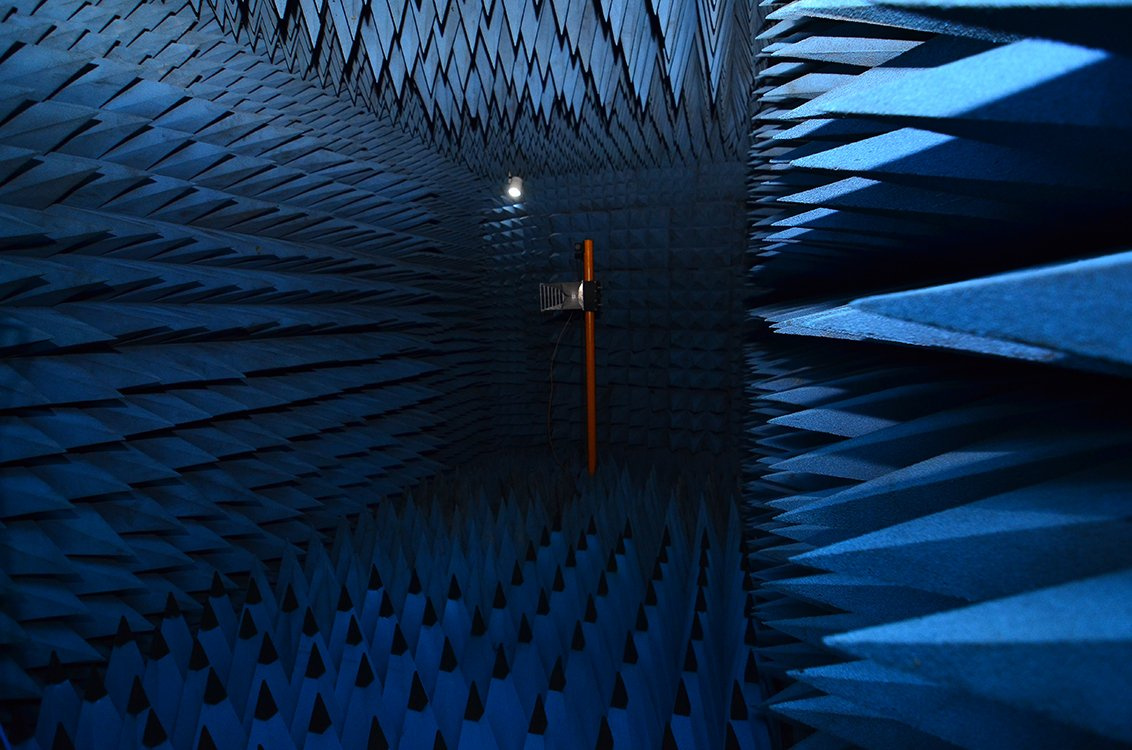

The company has more than 11 years of antenna experience in production and sales, There are more than 20 people of high-quality engineering team, till now obtained ten patents. According to market demand, company could manufacturing high quality special antenna according to customer requirements. With large production scale, with mold workshop, injection molding workshop, hardware and accessories shop, the antenna assembly plant. Equipped with automatic production lines, automatic injection molding machines, automatic lathes, automatic computer stripping machines and other advanced production equipment and an anechoic chamber HP87 series vector network analyzer, ADVANTEST scalar network analyzer, spectrum analyzer, analog signal generator, signal source tester intermodulation tester in SUMMITEK GPS simulation tests, the standard antenna test field of advanced testing equipment.
Around quality management to focus on new product development and application, focus on new product development and application, focusing on improving enterprise management, to build a standardized, efficient management model, a rigorous and detailed management processes throughout every onework, from raw material procurement to production, test the whole process of strict implementation of TS16949, thus ensuring good quality of the product. Virtue of their technical strength, reliable product quality, delicate, service, after several years of development gradually won the trust of customers, the industry unanimously recognized.
