| Prod Model: |
LYST-1000W |
| Certificate: |
Ce |
| Input Voltage: |
230V AC |
| Work Time (H): |
100000hours |
| Output Current: |
Load |
Product Description
Dear Buyer:While we are proud of shipping our orders quickly under normal circumstances, it is possible that occasionally the item may go on "back-order" due to logistics delay from manufacturer or sudden changes in order volume. For this reason please look under:
"postage and payments" (Australian AUD, UK GBP listings)
"shipping and payments" (US, CA USD listings)
"Spedizione e pagamenti" (Italian EURO listings)
"Livraison et paiements" (France EURO listings)
for a updated handling time period. If the item has an extended 10 or 15 business day handling time please expect LONGER delay in delivery. If you are unable to wait, please do not purchase. If you have any questions please do not hesitate to contact us prior to purchase, and our team will be happy to answer. Thank you very much for your understanding in advance.

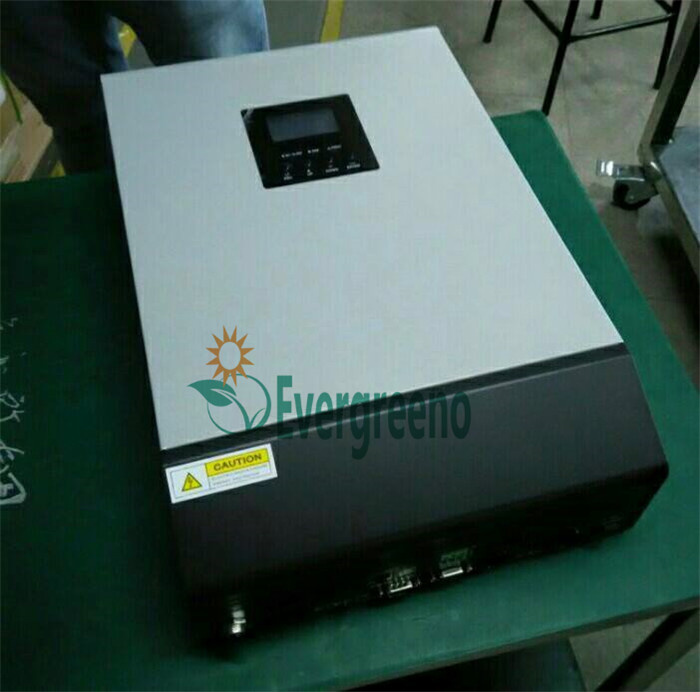

LYST-1000W 1000VA/800W off grid solar system
Specifications
Solar Inverter System :Model: LYST-1000W
1.Green Energy
2.Energy-saving products
3.Off grid
4.Certificate:CE,RoHS,TUV, ISO9001
Technical Parameters:
Power:1000VA/800W
Input Voltage:230V AC
Output:110V/220V/230V,50Hz/60Hz(Voltage can changed on the inverter)
Battery Voltage:12V DC
DC Output:110-240V
Qutantity of carton: 1pcs
Product size: 128*272*355mm
Advantages:
1.Safety and easy installation,Plug and play systems;
2.Good quality panel to ensure the high efficiency and long life needs;
3.Solar Automatic lighting controller :with adjustable run times, over-current protection;
4.Solar Batteries: Maintenance free, long life batteries
5.Lighting Source: LED lamp /Lantern (Fixed/Movable)
6.Flexible designs per client requests;
Using of scope:
It is very good for indoor use where there is shortage of electricity and for outdoor activities such as picnicking, fishing and camping. It is an ideal tool for Motor Mechanics, Farm House and small shop owners such as Hairdressers, Barbers, Cobblers, Tailors and Kiosk keepers.
Main Feature :
· NEW - now max 80A / 4kw MPPT solar charging
· NEW - total system max charging: 140A (80A solar + 60A utility)
· Supports parallel function up to 6 units max (need parallel kit, sold separately)
· supports LiFePo4 battery type (variable charging voltage)
· Built-in 3-stage high efficiency utility charger 60A
· Generator Starter Dry Contact
· Adjustable AC input voltage 90~280VAC
· Supports 50hz or 60hz via LCD program
· 4.0KW pure sine wave output with up to 2X surge max 5 seconds
· Dual priority operation selectable: AC vs. DC mode
· Free monitoring software
· Works with 48V battery system only
· transformerless, light weight design
· RJ45 comm port
· Transfer time <10ms
· Programmable LCD with menu
· 24 hour operation
· Intelligent battery charging control
· Built-in alarms and protections
· Suitable for wall mount
· CE, EMC certified |
| ELECTRICAL SPECIFICATIONS |
| Continuous Output | 1.2KW | 800W | 1.6KW | 2.4KW | 2.4KW | 3.2KW | 4.0KW |
| Surge Rating | 5 seconds max, 2X |
| Input Power Factor | 0.8 |
| Input Voltage Range | 90~280VAC (Appliance mode), 170~280VAC (UPS mode) |
| Input/Output Frequency | 50Hz / 60Hz |
| Output Voltage | 230VAC±5% |
| Output Waveform | Pure Sine Wave |
| Output Regulation | < 3% RMS for battery voltage range |
| Peak Efficiency | 93% | 91% | 93% |
| Nominal DC Voltage | 12V | 24V | 48V |
| Max DC Voltage | 16V | 31V | 60V |
| Transfer Time (2 Modes) | <10ms (UPS mode), <20ms (Appliance mode)** |
| Charging Mode | 3-stage |
| Boost Voltage (Flooded, MF) | 14.6V/14.1V | 29.2V/28.2V | 58.4V/56.4V |
| Float Voltage | 13.5V | 27.0V | 54.0V |
| Max AC Charging Current | 60A | 10-20A | 20-30A | 60A |
| No Load Power Consumption | <25W | <50W |
| Power Saving Consumption | <10W | <15W |
| Solar Charger |
| Max PV Input / Output | 500W | 600W | 1500W | 4000W |
| Max Charging Current | 40A | 25A | 60A | 80A |
| Max PV Input Voc, MPPT Range | 100V, 18~80V | 75V, 30~66V | 145V, 30~115V | 145V, 60~115V |
| Algorithm | MPPT |
| ENVIRONMENTAL / MECHANICAL SPECIFICATIONS |
| Certification | CE |
| Operating/Storage Temp. | 0°C ~ 55°C / -15°C~ 60°C |
| Operating Humidity | 5~90%RH Non-Condensing |
| Dimension | 355*272*100mm | 479*295*140mm | 468*295*140mm |
| Net Weight | 7.0Kg | 7.0Kg | 7.1Kg | 7.5Kg | 11.8Kg | 11.5Kg | 11.5Kg |
