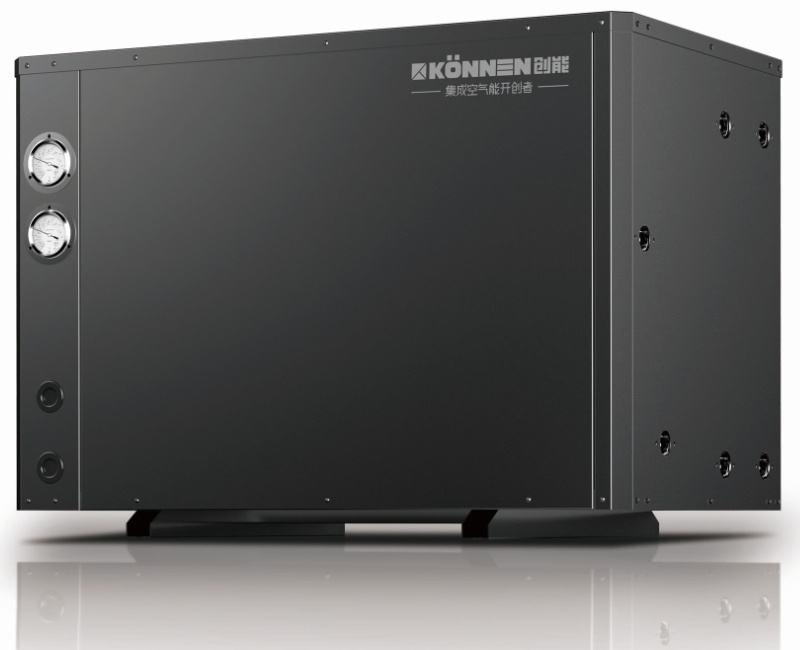

Ground Source Heat Pump(Water Source/geothermal Heat Pump)
1.

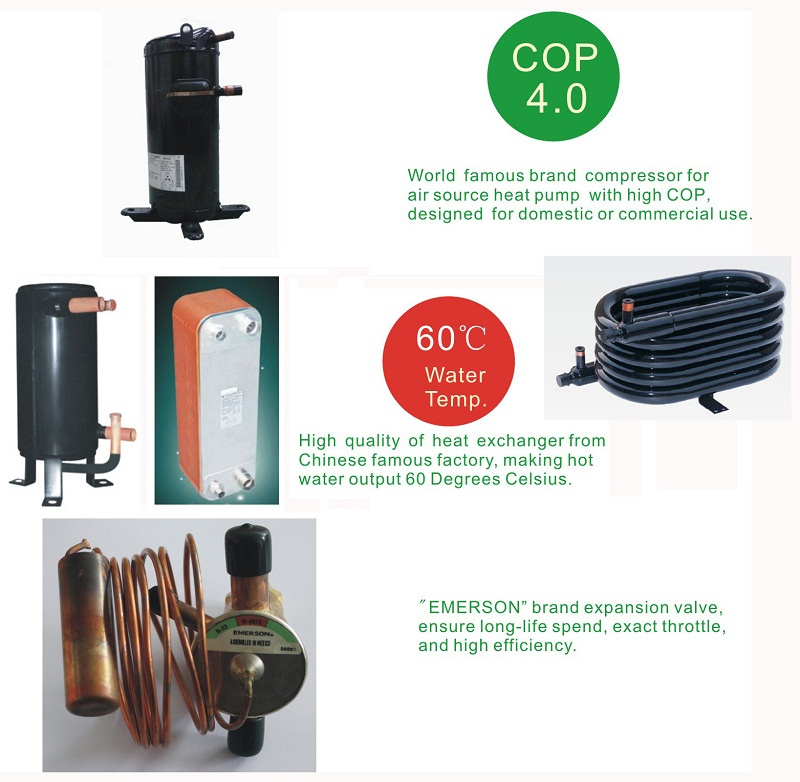

High ReliabilityUsing famous parts, and as the temperature of the original source is stable, the water/ground source heat pump works more reliable and stable, guaranteeing the high efficiency and economy. without problem of defrosting in winter
2.
Different functions availableIt could be used for cooling, heating or tap hot water for daily life, or combines two/three of these functions.
3. High Efficiency for Heat RecoveryUsing the latest high technology, following the law of conservation, when the unit is cooling, the heat recovers to produce the hot water (for example, in summer, it provides the free hot water by heat recovery). The unit is with higher efficiency and more energy saving.
4. Less CostThe working condition is reliable, so the system is simple and less components. It runs easily and reliably, and maintenance cost is less.
wärmepumpe, wärme pumpe, pompa ciepa, pompy ciepa, bomba calor, pompe chaleur, pompa di calore, αντλα θρμτητα, varmepumpe, varmepumpen, varme pumpe, warmtepomp, warmte pomp, tepelné erpadlo, hszivattyú, hszivattyús, s pompas, toplinska pumpa, siltumsknis, toplinska pumpa, toplinska crpka, ilumos siurblys, soojuspump, bomba calor5. Environment friendlyUse R410A refrigerant, the ratio of ozonosphere damage is zero, environment friendly, green product, meet the countries' environmental protection demand.
Heat Pump, Air Source Heat Pump, Air to Water Heat Pump, Home Use Heat Pump, Commercial Use Heat Pump, Water Source Heat Pump, Water to Water Heat Pump, Ground Source Heat Pump, Geothermal Heat Pump, Domestic Use Heat Pump, Home Use Heat Pump, EVI Heat Pump, EVI System Air Source Heat Pump, Direct Air Source Heat Pump, Water Heater Heat Pump, Central Heating Heat Pump, Floor Warming Heat Pump.
Parameters |
CSGRS-4I |
CSGRS-8I |
CSGRS-12II |
CSGRS-20II |
CSGRS-40II |
Hereunder is the testing result under standard conditions: (1) standard cooling conditions: application side water inlet temperature 12C, water outlet temperature 7C; source side water inlet temperature 15C, water outlet temperature 20C. (2) standard heating conditions: application side water inlet temperature 40C, water outlet temperature 45C; source side water inlet temperature 15C, water outlet temperature 10C. |
Cooling Capacity |
kW |
4 |
8 |
12 |
20 |
40 |
Heating Capacity |
kW |
4.3 |
8.6 |
13 |
22 |
45 |
Hot Water Heating Capacity (entire heat recovery ) |
kW |
4.8 |
9.5 |
14.5 |
23.5 |
48.5 |
input power for cooling |
kW |
0.8 |
1.6 |
2.5 |
4.1 |
8.3 |
input power for heating |
kW |
0.95 |
1.9 |
2.8 |
4.7 |
10.4 |
input current for cooling |
A |
4.2 |
8.4 |
4.5 |
7.8 |
15.2 |
input current for heating |
A |
5.1 |
10.1 |
5.3 |
8.9 |
18.2 |
Hereunder is the testing result in underground water norminal conditions: (1) underground water norminal cooling conditions: application side water inlet temperature 12C, water outlet temperature 7C; source side water inlet temperature 18C, water outlet temperature 29C. (2) underground water norminal heating conditions: application side water inlet temperature 40C, water outlet temperature 45C; source side water inlet temperature 15C, water outlet temperature 7C. |
underground water norminal conditions |
Cooling Capacity |
kW |
3.9 |
7.7 |
11.5 |
19.5 |
38.4 |
Heating Capacity |
kW |
4.2 |
8.2 |
12.5 |
21.2 |
43.2 |
Hot Water Heating Capacity (entire heat recovery ) |
kW |
4.5 |
9.1 |
13.5 |
23.3 |
47.5 |
input power for cooling |
kW |
0.81 |
1.6 |
2.6 |
4.1 |
8.2 |
input power for heating |
kW |
0.93 |
1.8 |
2.7 |
4.8 |
10 |
input current for cooling |
A |
4.2 |
8.5 |
5.1 |
7.7 |
15.6 |
input current for heating |
A |
4.8 |
10.2 |
5.3 |
9.1 |
18 |
Hereunder is the testing result in ground source closed loop norminal conditions: (1) ground source closed loop norminal cooling conditions: application side water inlet temperature 12C, water outlet temperature 7C; source side water inlet temperature 25C, water outlet temperature 30C. (2) ground source closed loop norminal heating conditions: application side water inlet temperature 40C, water outlet temperature 45C; source side water inlet temperature 10C, water outlet temperature 5C. |
ground source closed loop norminal conditions |
Cooling Capacity |
kW |
3.8 |
7.6 |
11.4 |
19.1 |
38 |
Heating Capacity |
kW |
4.1 |
8.1 |
12.3 |
20.9 |
42 |
Hot Water Heating Capacity (entire heat recovery ) |
kW |
4.4 |
8.9 |
13.2 |
22.5 |
46.2 |
input power for cooling |
kW |
0.8 |
1.6 |
2.5 |
4.2 |
8.4 |
input power for heating |
kW |
1.1 |
2.1 |
3.1 |
5.1 |
10.5 |
input current for cooling |
A |
4.2 |
8.4 |
4.7 |
7.9 |
15.6 |
input current for heating |
A |
5.7 |
11.1 |
5.8 |
9.6 |
15.7 |
Hereunder is the testing result in water loop norminal conditions: (1) water loop norminal cooling conditions: application side water inlet temperature 12C, water outlet temperature 7C; source side water inlet temperature 30C, water outlet temperature 35C. (2) water loop norminal heating conditions: application side water inlet temperature 40C, water outlet temperature 45C; source side water inlet temperature 20C, water outlet temperature 15C. |
water loop conditions |
Cooling Capacity |
kW |
3.6 |
7.2 |
10.9 |
18.1 |
36.2 |
Heating Capacity |
kW |
4.7 |
10.3 |
15.6 |
26.4 |
54.6 |
Hot Water Heating Capacity (entire heat recovery ) |
kW |
5.1 |
11.3 |
17.1 |
29.1 |
60 |
input power for cooling |
kW |
0.97 |
1.9 |
2.9 |
4.9 |
9.5 |
input power for heating |
kW |
10.5 |
2.3 |
3.5 |
6 |
12.1 |
input current for cooling |
A |
5.1 |
10.3 |
5.6 |
9.3 |
17.6 |
input current for heating |
A |
5.5 |
12.3 |
6.7 |
11.4 |
22.5 |
Power Supply |
220V/50Hz |
380V/50Hz |
Compressor |
Type |
Rotor Type |
Scroll Type |
quantity |
pc |
1 |
1 |
1 |
1 |
2 |
energy adjust |
% |
0, 100 |
0, 100 |
0, 100 |
0, 100 |
0, 50, 100 |
|
source side heat exchanger |
type |
plate-type heat exchanger |
water flow in underground water type cooling condition |
m 3 /h |
0.36 |
0.7 |
0.97 |
1.6 |
3.7 |
water flow in underground water type heating condition |
m 3 /h |
0.49 |
0.97 |
1.47 |
2.5 |
4.7 |
water flow in ground closed loop and water loop cooling condition |
m 3 /h |
0.74 |
1.47 |
2.6 |
3.6 |
6.8 |
water flow in ground closed loop and water loop heating condition |
m 3 /h |
0.79 |
1.57 |
2.3 |
3.9 |
7.7 |
Water Pressure Drop |
kPa |
< 20 |
< 40 |
pipe size |
mm |
DN20 |
DN20 |
DN20 |
DN25 |
DN40 |
|
application side heat exchanger |
type |
plate-type heat exchanger |
water flow during cooling |
m3/h |
0.7 |
1.4 |
2.2 |
3.7 |
7.1 |
water flow during heating |
m3/h |
0.8 |
1.6 |
2.4 |
4.1 |
8 |
Water Pressure Drop |
kPa |
< 20 |
< 60 |
pipe size |
mm |
DN20 |
DN20 |
DN20 |
DN25 |
DN40 |
|
hot water side heat exchanger |
type |
efficient shell and tube heat exchanger |
water flow during heating |
m3/h |
0.9 |
1.7 |
2.7 |
4.1 |
9.1 |
Water Pressure Drop |
kPa |
< 20 |
< 60 |
pipe size |
mm |
DN20 |
DN20 |
DN20 |
DN25 |
DN40 |
Protection |
high pressure and low pressure protection, anti-freezing protection, high temperature protection, safety valve, overload protection, lack phase protection, reverse phase protection, water flow protection ect. |
refrigerant |
type |
R22/R410A/R407C |
Throttle Type |
thermostatic expansion valve |
quantity |
kg |
0.9 |
1.3 |
2.1 |
3.2 |
3.5× 2 |
unit dimensions |
mm |
900*510*600 |
956*556*680 |
1315*765*1045 |
Noise |
≤ dB(A) |
35 |
48 |
52 |
54 |
61 |
Weight |
kg |
52 |
65 |
75 |
125 |
290 |

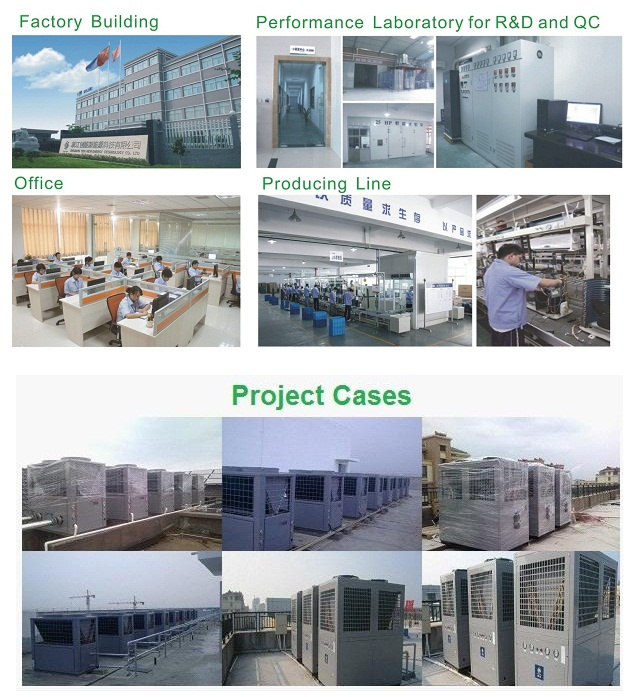

Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!

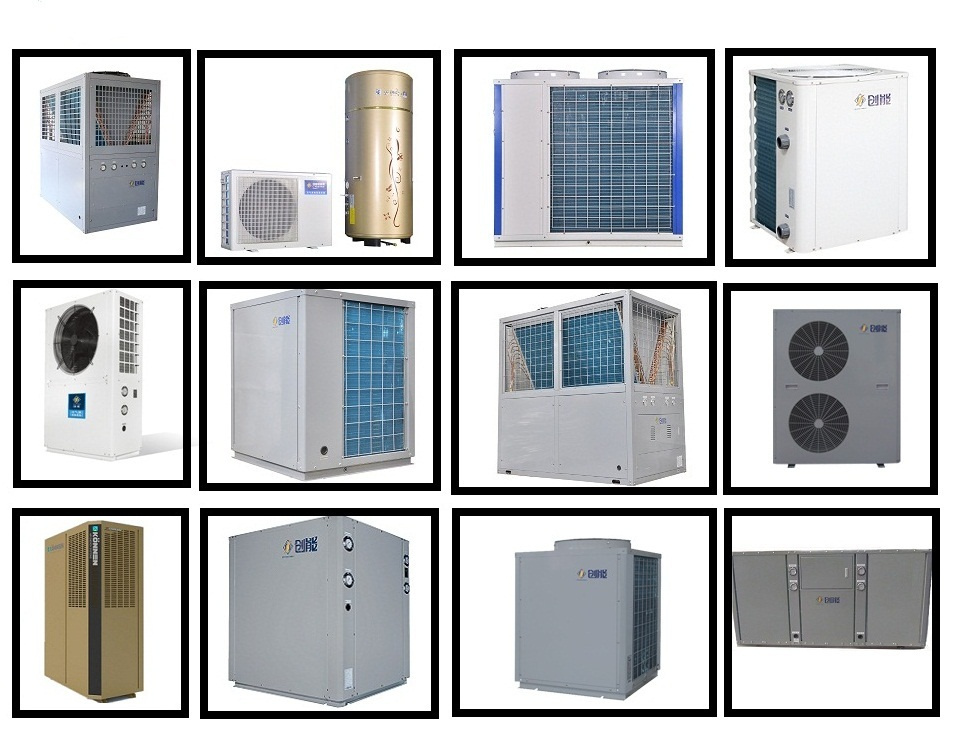

Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.
We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
