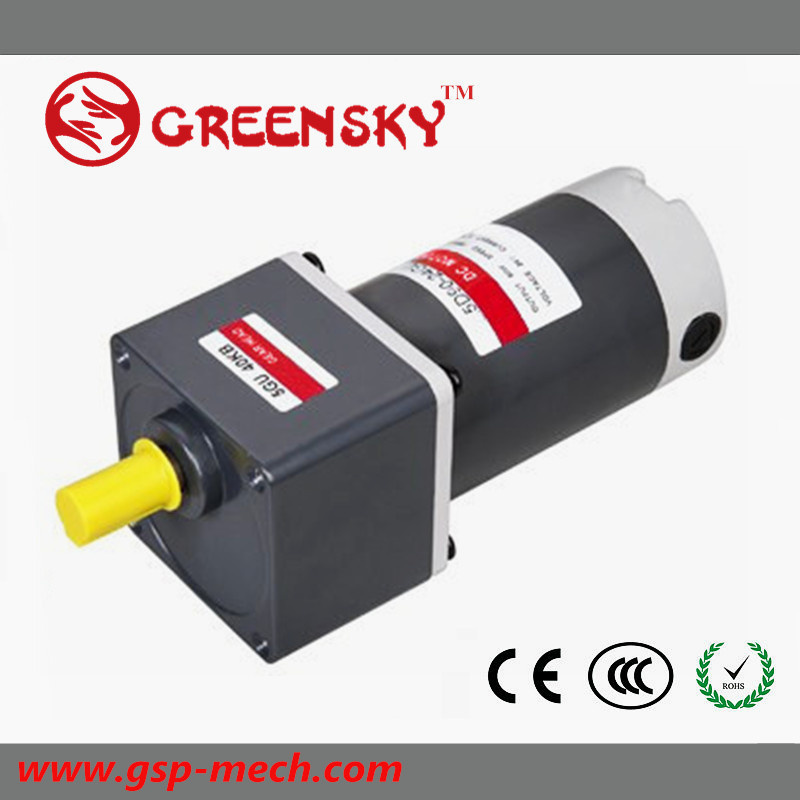

GS 5D60-90 60W 90mm DC Gear Motor

Name: GS 5D60-90 60W 90mm DC Gear Motor
Brand: all-electronics-online.com
SKU: 743493425
Availability: InStock
Rating: 4.6 (103 reviews)

Price:	US $ 33-38/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

60W 90mm dc gear motor 5D60-90

Introduction
We have both DC gear motor and Brushless dc gear motor, including 5 kinds of 300 products. The watt is from 6W to 300W, voltage is from 12VDC to 220VDC. The advantages of our motors are steady work, big starting and rated torque, low noise, high efficiency and long life.

Specifications
1. Dimensions: 90mm
2. Rated Power: 60W
3. Voltage: 12/24/90V
4. CCC, CE, UL, CU
5. Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

Greensky's Advantage
On the site you can find a range of renewable products including ac/dc motor, induction motor, reversible motor, brake motor, speed control motor, ac angel motor, gear motor, planetary gearbox, worm gearbox and their relevant components.

If you have any other questions, please feel free to contact us.

Model	Voltage V	Rated Power W	No-load Parameters		Load Parameters			Brush Life H	Motor Weight kg
Model	Voltage V	Rated Power W	Speed RPM	Current A	Speed r/min	Torque mN.m	Current A	Brush Life H	Motor Weight kg
5D60-12	12	60	3000	2.0 Max	2600	220	9.0	2000	2.2
5D60-24	24	60	3100	1.0 Max	2800	205	3.5	2000	2.2
5D60-90	90	60	3100	0.3 Max	2900	198	1.0	2000	2.2

Prod Model:	5D60-90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe
All Technical Data:	Can Be Customized
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Certification:	CE/UL
Brand:	GS

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
