GSM Combination GPS Am FM Car Antenna

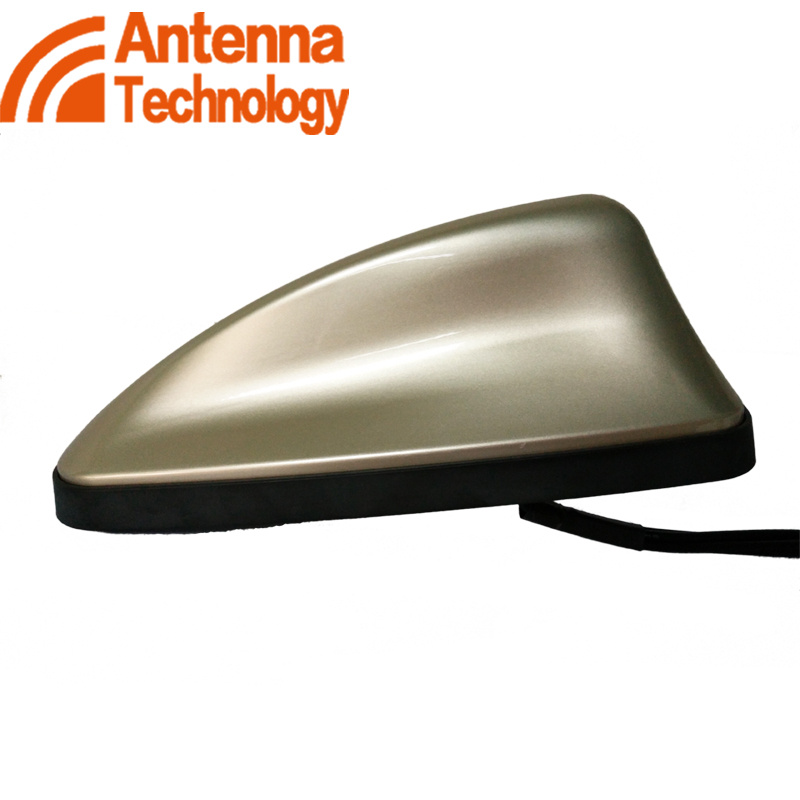

Name: GSM Combination GPS Am FM Car Antenna
Brand: all-electronics-online.com
SKU: 788661875
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	Negotiable/Piece
Min Order:	2000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	M016
Model:	Atc-M016
Certification:	RoHS
Application:	Am FM+GPS/Bd+GSM Antenna
Amplifier Gain:	30±3dB
Noise Figur:	1.5dB(Typical) 2.0dB Max
Waranty:	3 Years
Install:	Rear
Usage:	Car Antenna
Directionality:	Omnidirectional Antenna
VSWR:	<1.5
Operating Wavelength:	Am/FM+DMB
Material:	ABS777 /Zamak5 / EPDM

Product Description

company information
Antenna Technology is a high-teach company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products, we always keep an eye on your demands and the developing trend of this industry, and have established a complete products system of car antenna.
Our company has 10 years experience in manufacturing car antenna.The superior engineers provide precondition for product innovation, perfect production and testing equipment provide the quality guarantee for our products.
As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectation and needs, a large group of skilled technician work hard in order to increase the benefit for customers.
product

specification

origin	China
brand	ATC
model	ATC-M016
GPS/BDS specification
frequency	1559AHz-1577MHz
impedance	50±5Ω
VSWR	<1.5
amplifier gain	30±3dB
operating voltage	DC 3V-5V
oprating current	25±10mA
noise figure	1.5dB(typical) 2.0dB max
GPRS specification
frequency	AMPS:824-894MHz
	GSM900:880-960MHz
	GSM1800:1710-1880MHz
	PCS:1850-1990MHz
impedance	50±5Ω
AM/FM specification
frequency	AM:535-1605KHz
frequency	FM:88-108MHz
center frequency	96-100MHz
impedance	75±5Ω

packing

pratical application

Antenna Technology is a high-tech company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products; We always keep an eye on your demands and the developing trend of this industry, and have established a complete products system which is giving first to Car Antenna.

Provide the highest quality products and best service to create more value for customers. As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectations and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

Product: Car AM/FM Antenna \GPS Antenna\GSM Antenna\TV Antenna\Shark fin Antenna\CB Antenna\T-DMB Antenna\DVB-T Antenna\Multi-Function Antenna\Antenna Cable and Accessories.

R&D: It has owned a R&D group of rich professional knowledge and practical experience, more designers have over 10 years R&D experience in SGM, Changan Suzuki, DongNan Mishubishi, Shanghai Automotive, VW, HaiMa Automotive, JMC, CHERY etc, They all have solid technical foundation and rich experience in production and guarantee the product quality, and the manager of company has operation skill in APQP, PPAP, DFMEA, PFMEA, CONTROL PLAN. And it has owned the design software for PRO/e, UG19.0, Catia V5r13, autocad 2006 and ADS2004, Protell99SE.

Our company owns advanced Network Analyzer, Signal Analyzer, Noise Figure Analyzer test equipments and 50 meters opened testing field. Environment Lab can process nature simulation testing of salt spray, aging, libration, pulling and High-low temperature.
