GSM Flat Antenna High Quality Antenna

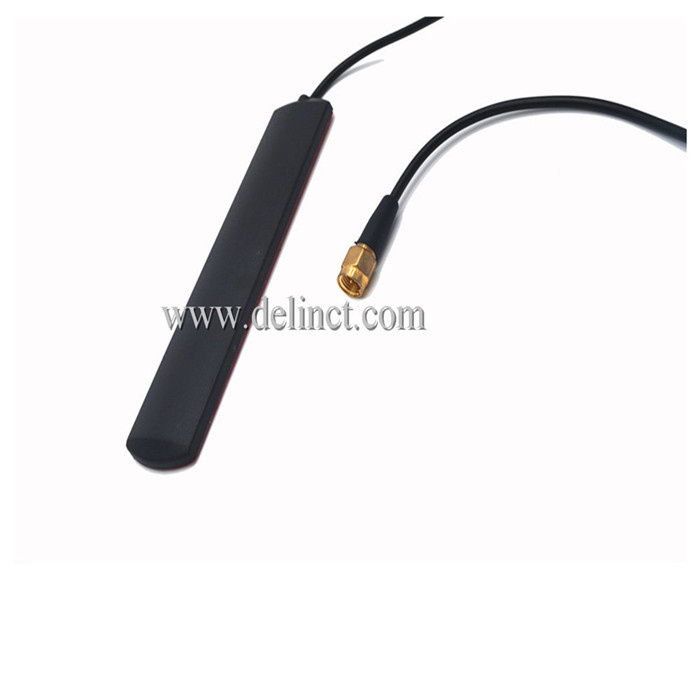

Name: GSM Flat Antenna High Quality Antenna
Brand: all-electronics-online.com
SKU: 823807255
Availability: InStock
Rating: 4.8 (23 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL-GSM-022
Polarization:	Perpendicular
Connector:	SMA Gold Plated Straight Male Head
Frequency(MHz):	824~960 1710~2400
Lead Time:	3-7 Days
Sample Time:	1-3 Days
Color:	Black
Usage:	Broadcasting Antenna
Operating Wavelength:	Medium Wave
Material:	Al
Directionality:	Omnidirectional Antenna
VSWR:	<=2.0

Product Description

Antenna Performance

NO	(Item)	(Specifications)
1	Range of Receiving Frequency	824~960 1710~2400
2	V.S.W.R(in Center Frequency)	≤2.0
3	Gain (Zenith)(dBi typ)	>2.0
4	Radiation	omnidirectional
5	Power Capacity	50
6	Polarization	perpendicular
7	Connector Type	SMA gold plated straight male head
	Size(mm)	120205
9	Color	black
10	Weight(gram)	≥30

1. materials and coatings

order number	part name	material quality	cladding material	remarks
1	inner conductor	Brass Wire	gold-plating	hard gold
2	dielectric	teflon
3	hull	yellow metal(HPb59-1)	gold-plating	hard gold

2. electrical performance

order number	surveillance project	qualification	remarks
1	characteristic impedance	50Ω
2	temperature range	-65~+165ºC
3	frequency range	0~12GHZ
4	Dielectric Strength	1000V(rms)
5	contact resistance	inner conductor≤3mΩouter conductor ≤2mΩ
6	insulation resistance	≥5000MΩ
7	voltage standing-wave ratio	≤1.25(flexible cable)
8	Salt spray test (HRS)	24

3.mechanical behavior character


order number	mechanical behavior [character	qualification	remarks
1	mechanical endurance	≥500times
