GYTC8S Self Support Optical Fiber Cable

Name: GYTC8S Self Support Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 677028295
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 0.43/Meter
Trade Terms:	FOB,CIF
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1. Structure description

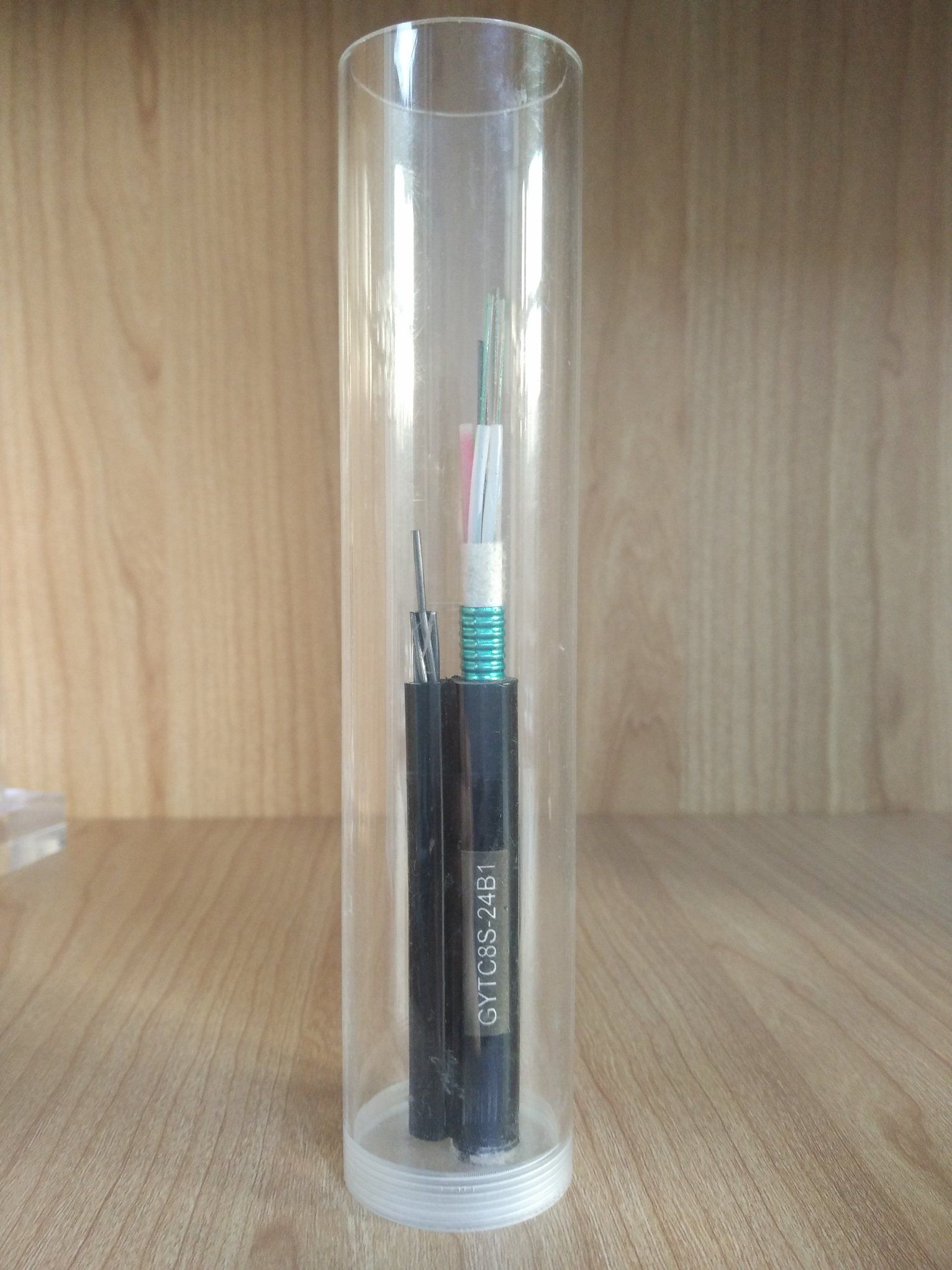

Non-Metallic Strength member, loose stranded tube type, gelly filled, with steel tape armored Polyethylene(PE) sheath, Figure-8 self-supporting type outer door optical fiber cable for telecommunication
Technical characteristics:
Selected high quality optical fiber ensure the optical fiber cable have excellent transmission properties
The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties
Very strict material and manufacturing control guarantees the cable can work stably for more than 30 years.
Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
The out PE sheath provides good anti-UV radiation performance
Figure-8 self-supporting structure, high tension strength ,facilitate lay in aerial, low installation costs

Fiber count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max fiber Per tube	No. of (tube+fillers)	Allowable Tensile load Long/short (N)	Allowable Crush resistance Long/short (N/10cm)
2-30	10. X18.0	220	6	5	7000/4000	1000/300
32-36	10.7X18.7	224	6	6	7000/4000	1000/300
38-60	11.4X19.4	253	12	5	7000/4000	1000/300
62-72	12.0X20.0	280	12	6	7000/4000	1000/300
> 72	Available upon customer' s request

Prod Model:	GYTC8S
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Name:	Self Support Optical Cable
Number Of Cores:	2--288
Outer Sheath:	PE
The Way:	Aerial
Color:	Black
Application:	Communication
Certification:	ISO9001
Type:	Figure 8 Self-Surporting Cable
Connection Structure:	Box
Sheath Material:	PE

Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.

Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.

Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.

Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.

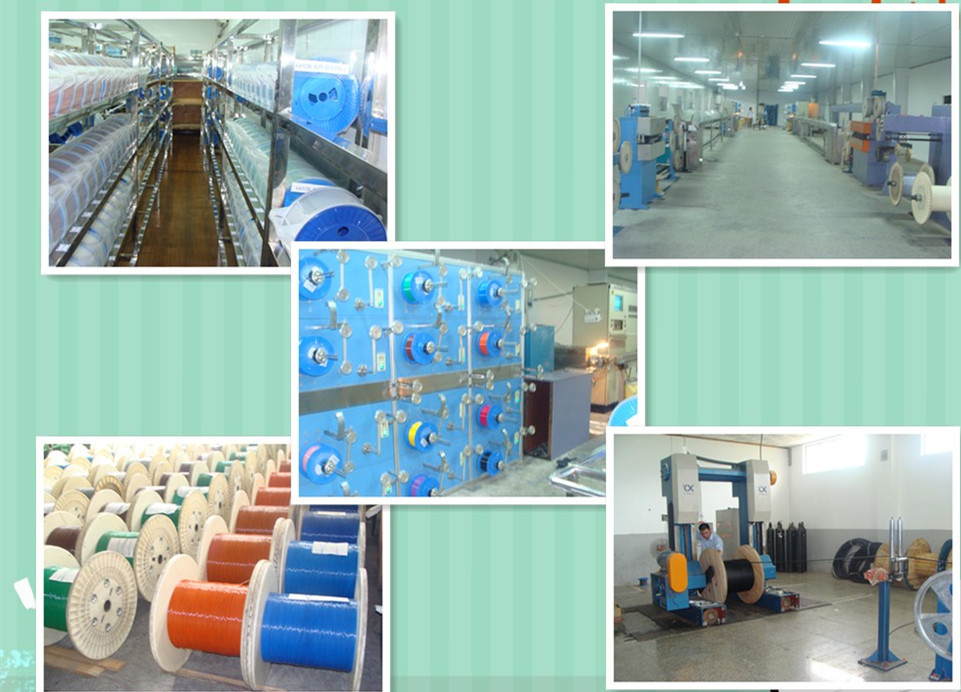

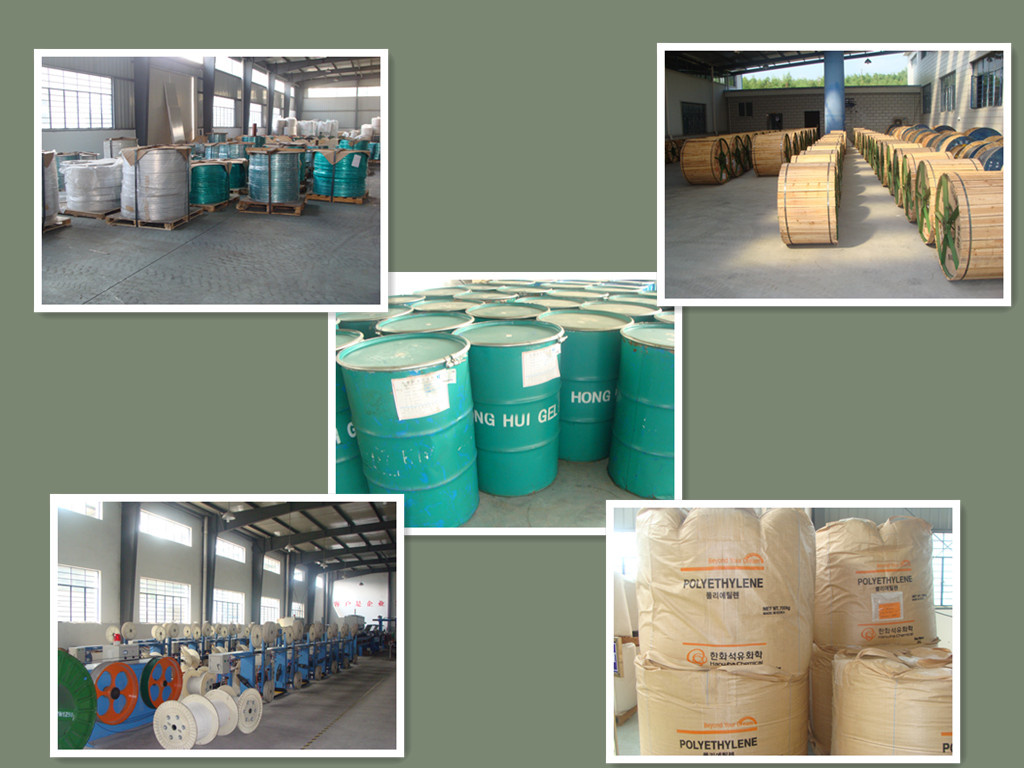

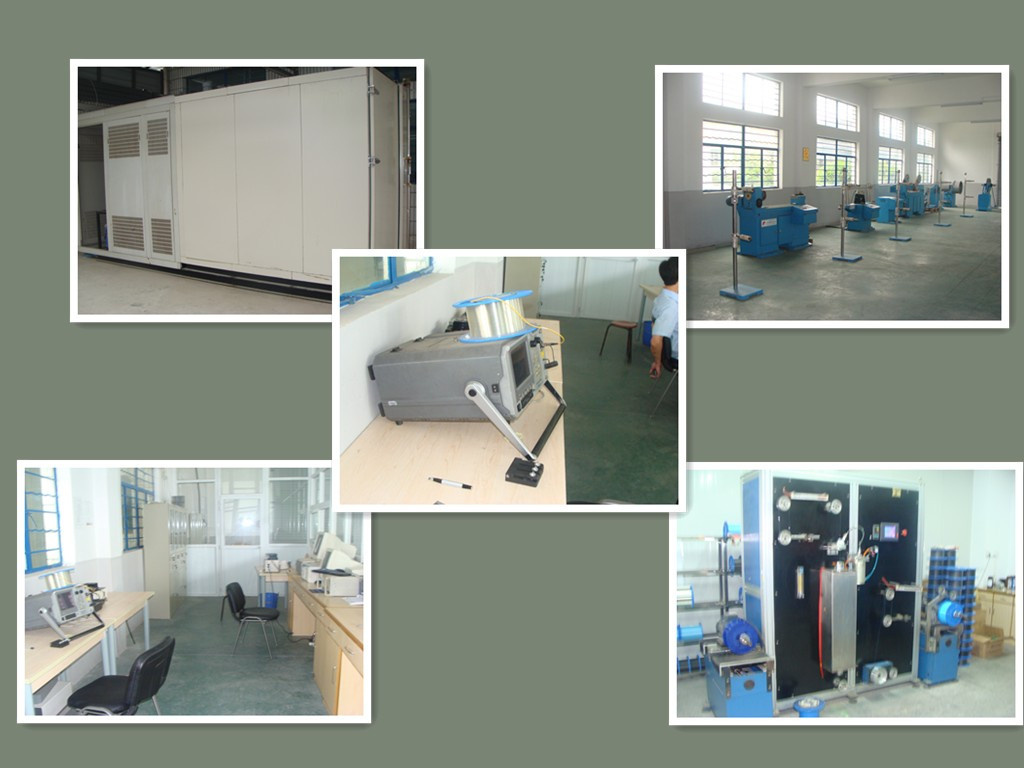

Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.

Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.

Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.

Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).

Please feel free to contact us for further information.
