| Prod Model: |
H Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Ningbo or Shanghai |
| Rated Current (a): |
3A-150A |
| Rated Voltage (V): |
250V-450V |
| Frequency: |
250V-450V |
| Poles: |
1p-12p |
| Material: |
Plastic |
| Inserts: |
Brass |
| Colour: |
Any Colour Is Available Upon Your Request. |
| Cable Range: |
2.5mm2-40mm2 |
| Environmental Protection: |
General |
| Shape: |
Rectangle |
| Application: |
Battery |
| Contact Termination Form: |
Screws Fixed |
| Connection Mode: |
Push-Pull Connection |
Product Description

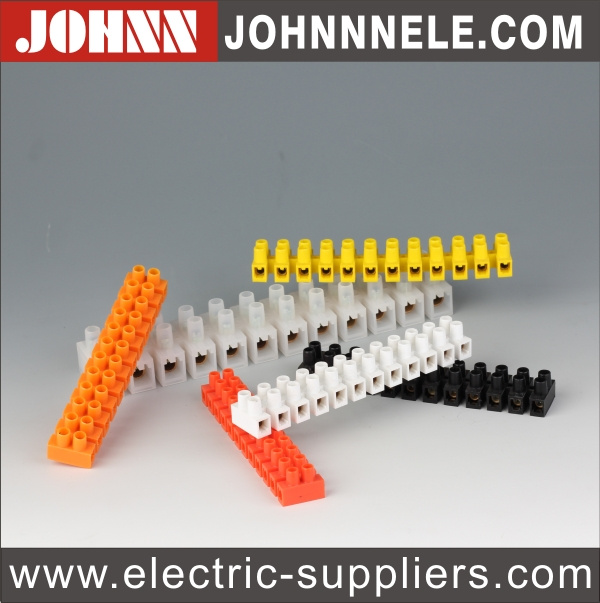

H Type Terminal Block
Material Feature:
* PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation.
* PA, Polyamide 66, 94-2 grade. Inflaming retarding, good resist dissolve, good bounce impact fore.
* PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force.
Why choose our terminal blocks?
The barrier terminal blocks are a devive that joins wires or cables. Barrierer terminal blocks typically snap into a metal rail or are srew-mounted on the panel of a control enclosure.
Terminal blocks have been around a long time, but they are still popular choices as inter connect solutions and continue to envolve based on users' current application needs
Our barrier terninal blocks are screw-in terminal blocks contain wires housed inside the block and screwed into position. They are often used for equipment that does not required high voltage protection.
Details:
1. Model Number: H Type
2. Material: PE, PA, PP.
3. Working Temperature:
*PE: -40º C to 65º C.
*PA: -30º C to 110º C.
*PP: -20º C to 90º C.
4. Colour: Natural, Black, White, Yellow, Orange and any colour is available upon your request.
5. HS Code: 8536900000
6. Samples: H Type Terminal Block's samples is available
7. Qualification Certificate: CE, RoHS, EN, UKAS, SGS.
8. Delivery Time: Within 25 days after receipt deposit.
9. Delivery Methods: By Sea or By Air (Express DHL, Fadex, TNT).
10. Payment Terms: L/C, T/T, Western Union, Money Gram; 30% deposit, balance see the copy of B/L by email or negotiation.
11. Unit Price: The price is negotiable.
|
ITEM NO |
Section Size
(mm 2 ) |
L
(mm) |
W
(mm) |
H
(mm) |
A
(mm) |
B
(mm) |
|
H-3A |
2.5/4mm 2 |
93 |
15.5 |
12 |
5 |
8.2 |
|
H-5A |
6mm 2 |
107 |
15 |
13 |
6 |
9 |
|
H-6A |
6mm 2 |
112 |
17 |
14 |
7.8 |
9.2 |
|
H-10A |
10mm 2 |
125 |
21 |
16.5 |
8.7 |
11.1 |
|
H-15A |
12mm 2 |
134 |
22 |
18 |
9.8 |
12 |
|
H-20A |
14mm 2 |
143 |
22 |
19 |
10.1 |
12.2 |
|
H-30A |
16mm 2 |
168 |
24 |
21 |
11.2 |
15.1 |
|
H-60A |
25mm 2 |
193 |
31 |
24 |
13.8 |
17.2 |
|
H-80A |
30mm 2 |
208 |
37 |
30 |
15 |
19 |
|
H-100A |
35mm 2 |
230 |
38 |
33 |
17.1 |
21 |
|
H-150A |
40mm 2 |
260 |
43 |
34 |
23.1 |
25.2 |
|
ITEM NO |
QTY/CTN |
Package Size
(CM) |
GW
(KGS) |
NW
(KGS) |
|
H-3A 2.5/4MM |
1200 |
41 |
20 |
31 |
22 |
21 |
|
H-5A 6mm 2 |
1000 |
40 |
22.5 |
28.5 |
22 |
21 |
|
H-6A 6mm 2 |
1000 |
45 |
23 |
29 |
22 |
21 |
|
H-10A 10mm 2 |
800 |
43.5 |
26.5 |
34 |
26 |
25 |
|
H-15A 12mm 2 |
500 |
38 |
28 |
30 |
26 |
25 |
|
H-20A 14mm 2 |
500 |
38.5 |
28.5 |
29.5 |
27 |
26 |
|
H-30A 16mm 2 |
300 |
38 |
34 |
21.5 |
19 |
18 |
|
H-60A 25mm 2 |
200 |
40 |
33 |
25 |
24 |
23 |
|
H-80A 30mm 2 |
100 |
38.5 |
22 |
32 |
19 |
18 |
|
H-100A 35mm 2 |
100 |
39.5 |
24 |
31 |
19 |
18 |
|
H-150A 40mm 2 |
50 |
45.5 |
27 |
18.5 |
20 |
19 |
Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
