H Type PE Material Terminal Block Electrical Connector
Price: |
US $ 0.122-2.612/Piece |
Trade Terms: |
FOB |
Min Order: |
20000/Piece |
Pay Type: |
L/C,T/T,Money Gram,Western Union |
Prod Model: |
H Type |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Port: |
Ningbo or Shanghai |
Rated Current (a): |
3A-150A |
Rated Voltage (V): |
250V-450V |
Frequency: |
250V-450V |
Poles: |
1p-12p |
Material: |
Plastic |
Inserts: |
Brass |
Colour: |
Can Be Request. |
Cable Range: |
2.5mm2-40mm2 |
Environmental Protection: |
General |
Shape: |
Rectangle |
Application: |
Battery |
Contact Termination Form: |
Screws Fixed |
Connection Mode: |
Push-Pull Connection |
Product Description

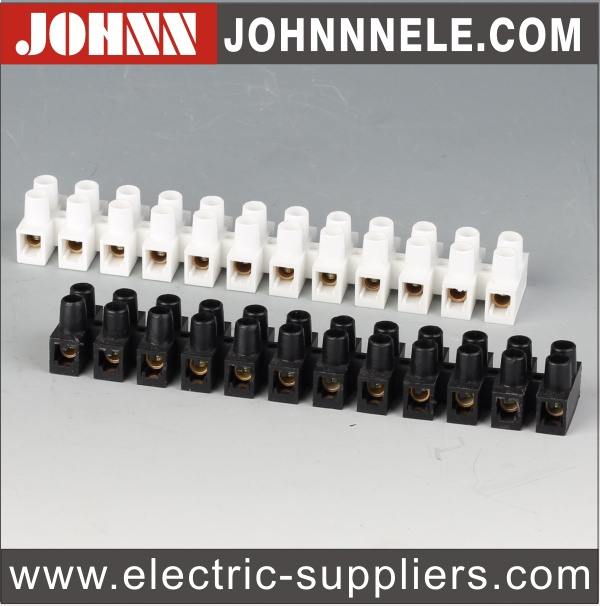

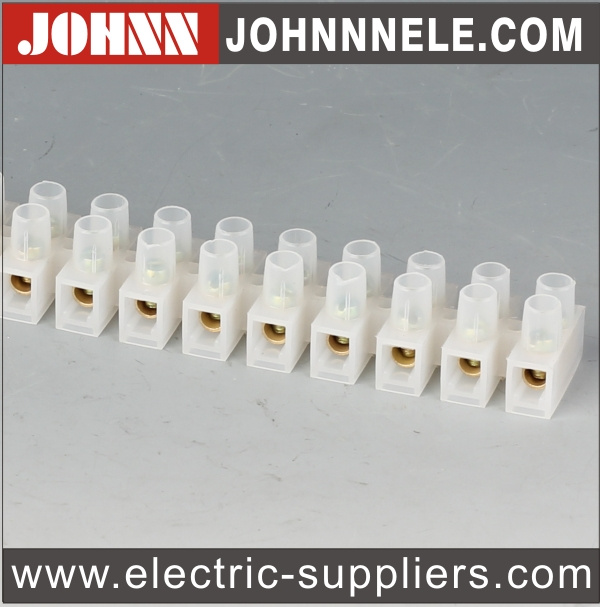

Detailed Information of H Type Terminal Block
1.Model Number : H Type
2.Material : PE, PA, PP.
3. Working Temperature :
*PE: -40ºC to 65ºC.
*PA: -30ºC to 110ºC.
*PP: -20ºC to 90ºC.
4. Colour : Natural, Black, White, Yellow, Orange and any colour is available upon your request.
5. HS Code : 8536900000
6. Samples : H Type Terminal Block's samples is available.
7. Material Feature :
* PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation.
* PA, Polyamide 66, 94-2 grade .Inflaming retarding, good resist dissolve, good bounce impact fore.
* PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force.
8. Qualification Certificate : CE, RoHS, EN, UKAS, SGS.
9. Delivery Time : Within 25 days after receipt deposit.
10. Delivery Methods : By Sea or By Air (Express DHL, Fadex, TNT).
11. Payment Terms : L/C, T/T, Western Union, Money Gram; 30% deposit, balance see the copy of B/L by email or negotiation.

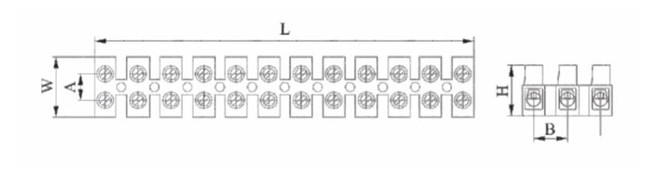

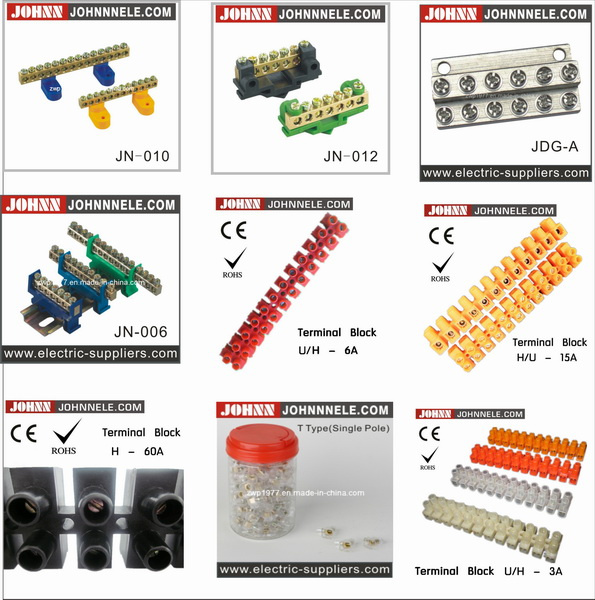

12. Unit Price : The price is negotiable.Specification of H Type Terminal Block The other models:
ITEM NO |
Section Size
(mm 2 ) |
L
(mm) |
W
(mm) |
H
(mm) |
A
(mm) |
B
(mm) |
H-3A |
2.5/4mm 2 |
93 |
15.5 |
12 |
5 |
8.2 |
H-5A |
6mm 2 |
107 |
15 |
13 |
6 |
9 |
H-6A |
6mm 2 |
112 |
17 |
14 |
7.8 |
9.2 |
H-10A |
10mm 2 |
125 |
21 |
16.5 |
8.7 |
11.1 |
H-15A |
12mm 2 |
134 |
22 |
18 |
9.8 |
12 |
H-20A |
14mm 2 |
143 |
22 |
19 |
10.1 |
12.2 |
H-30A |
16mm 2 |
168 |
24 |
21 |
11.2 |
15.1 |
H-60A |
25mm 2 |
193 |
31 |
24 |
13.8 |
17.2 |
H-80A |
30mm 2 |
208 |
37 |
30 |
15 |
19 |
H-100A |
35mm 2 |
230 |
38 |
33 |
17.1 |
21 |
H-150A |
40mm 2 |
260 |
43 |
34 |
23.1 |
25.2 |
ITEM NO |
QTY/CTN |
Package Size
(CM) |
GW
(KGS) |
NW
(KGS) |
H-3A 2.5/4MM |
1200 |
41 |
20 |
31 |
22 |
21 |
H-5A 6mm 2 |
1000 |
40 |
22.5 |
28.5 |
22 |
21 |
H-6A 6mm 2 |
1000 |
45 |
23 |
29 |
22 |
21 |
H-10A 10mm 2 |
800 |
43.5 |
26.5 |
34 |
26 |
25 |
H-15A 12mm 2 |
500 |
38 |
28 |
30 |
26 |
25 |
H-20A 14mm 2 |
500 |
38.5 |
28.5 |
29.5 |
27 |
26 |
H-30A 16mm 2 |
300 |
38 |
34 |
21.5 |
19 |
18 |
H-60A 25mm 2 |
200 |
40 |
33 |
25 |
24 |
23 |
H-80A 30mm 2 |
100 |
38.5 |
22 |
32 |
19 |
18 |
H-100A 35mm 2 |
100 |
39.5 |
24 |
31 |
19 |
18 |
H-150A 40mm 2 |
50 |
45.5 |
27 |
18.5 |
20 |
19 |
Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
