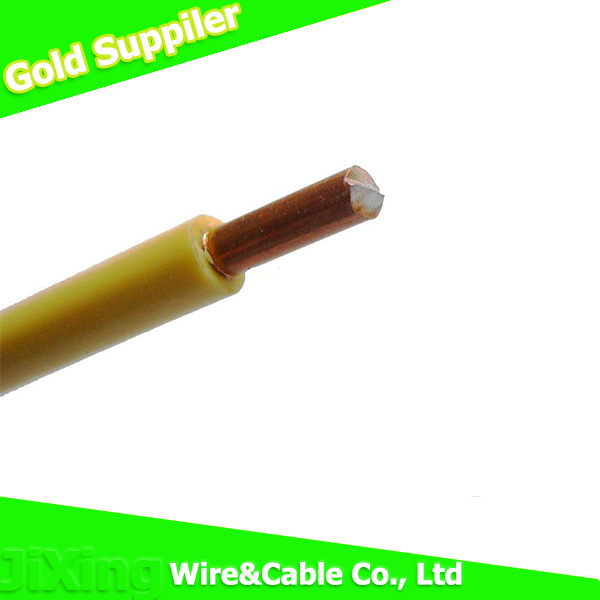

H07V-U Single Core Solid Copper Conductor PVC Insulated Electric Wire Cable

Name: H07V-U Single Core Solid Copper Conductor PVC Insulated Electric Wire Cable
Brand: all-electronics-online.com
SKU: 677224761
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	5000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

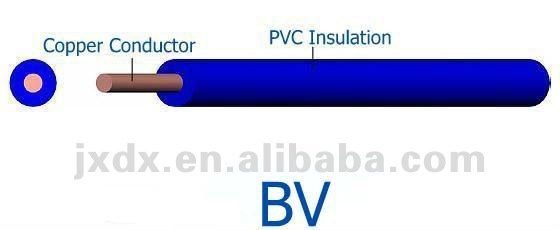

Single Core Solid Copper conductor PVC Insulated

Electric Wire cable

BV cable for Instrument & Lighting with Voltage 450V/750V

Model:H07V-U(BV) Electric Wire

1,Application

This product is apply for AC450/750V or below power, and household electrical appliance,Instrument and apparatus, telecommunications equipment and lighting ect. fixed installation.

2,Operating Characteristic

1)The rated voltage of cable Uo/U is:450/750V,300/500V,300/300V

2)The conductor of electric wire cable allows working temperature <70°C for long time

3) The installment temp of cable should not less than 0°C, OD<25mm cable, allowed bending radius should ≥4D,OD≥25mm, allowed bending radius should≥6D

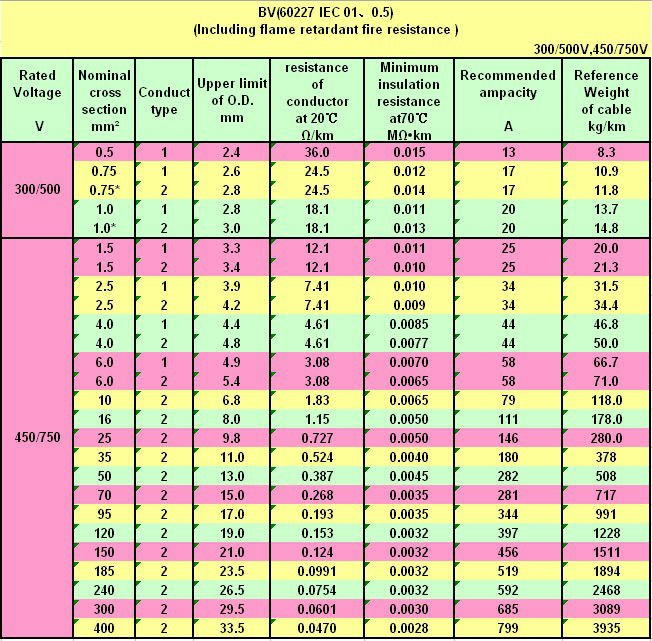

specification:

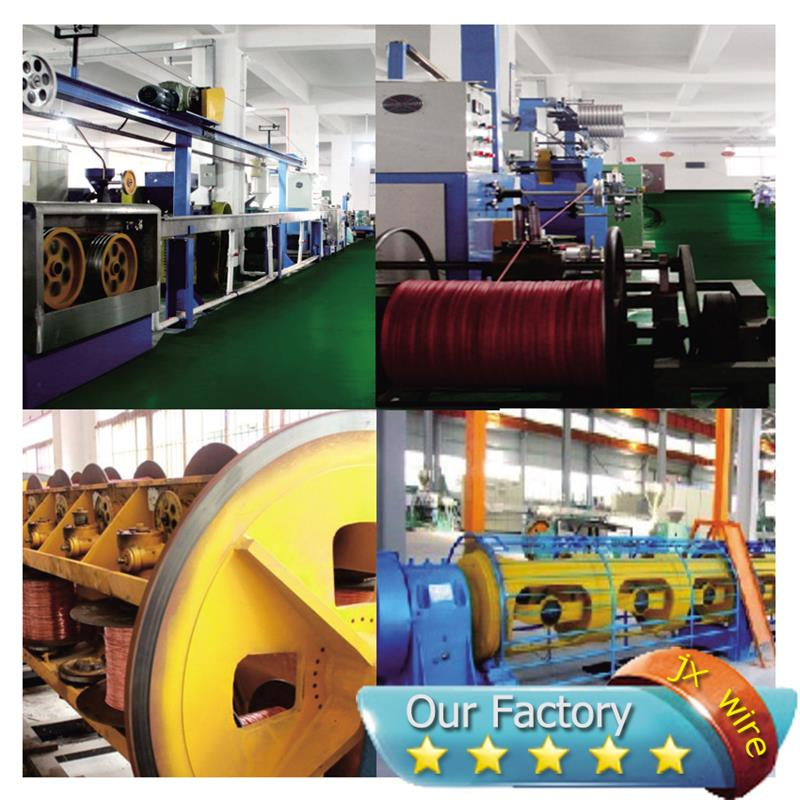

Our Factory:

We warmly welcome you to visit us at any time!

Contact with me:
ATTN:Gina

Prod Model:	H07V-U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Voltage:	450V-750V
Standard Length:	100m/Roll
Working Temp:	0°c-70°c
Genre:	Electric Wire
Conductor:	Bare Copper
Cores:	as Client's Requirement
Color:	Red/Black/Blue/Yellow/Green or as Required
Lenght:	100m/Reel
Package:	Fillm Packing
Delivery:	15-20days After Payment
Type:	Insulated
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Range Of Application:	Low Voltage, Home
Brand:	Yongkuntai
Application:	Home

Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.

Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.

Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.

Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.

Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
