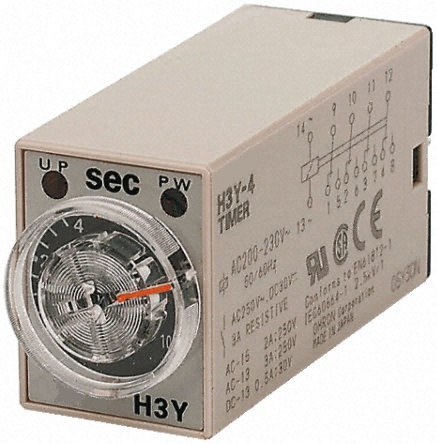

H3y-2 on-Delay Version Miniature Time Limit Time Relay Price with Low Power

Name: H3y-2 on-Delay Version Miniature Time Limit Time Relay Price with Low Power
Brand: all-electronics-online.com
SKU: 833484475
Availability: InStock
Rating: 4.9 (124 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	H3Y-2

Product Description

Time Relay Description:
- Miniature Timer Compatible with the MY Relay

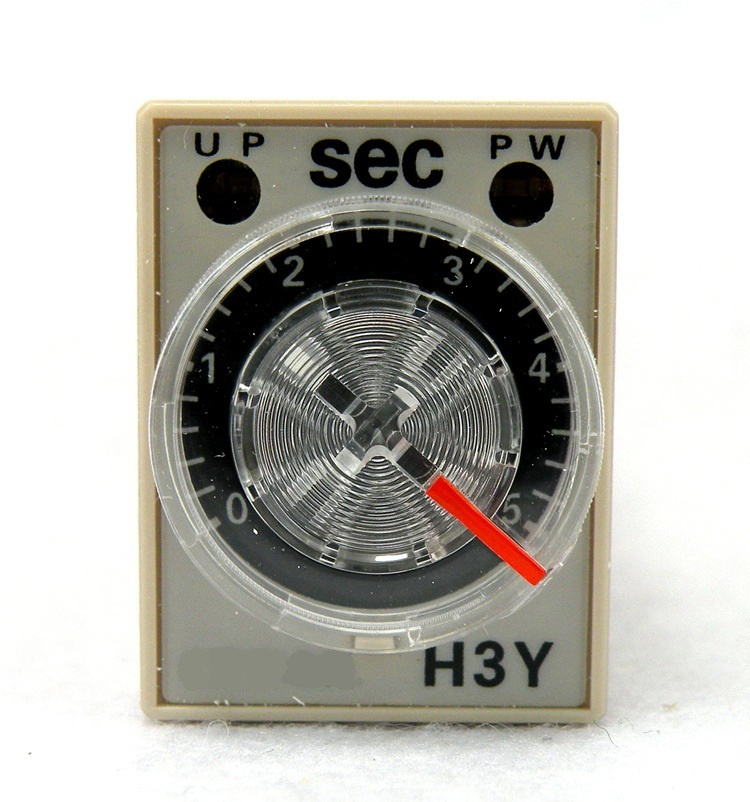

- Large transparent time setting knob facilitates time setting.
- A flat-blade and Phillips screwdriver can also be used for time setting.
- 12 different time ranges from 0.1 sec to 3 hrs available (Each time range the product is individually customized)

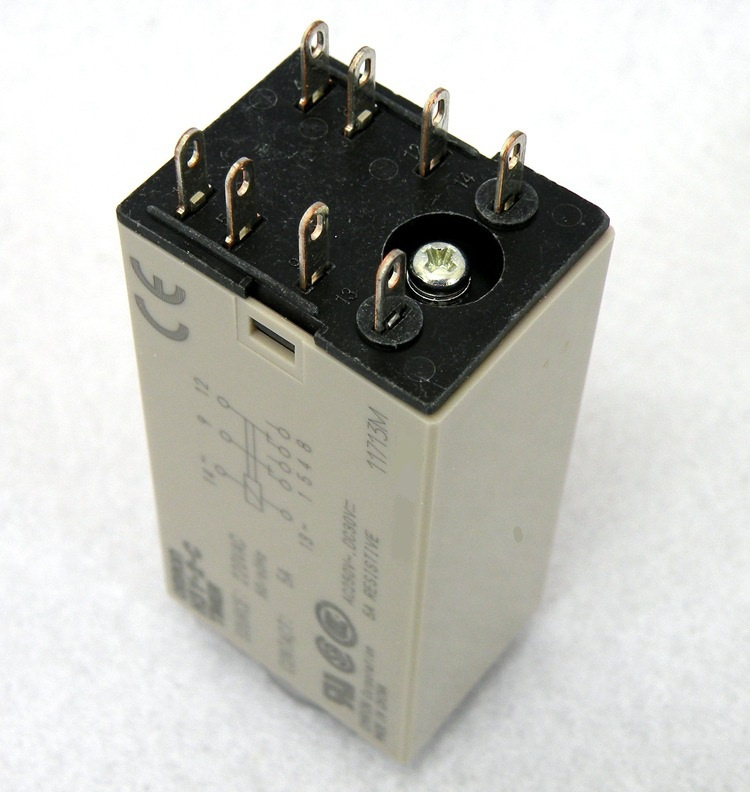

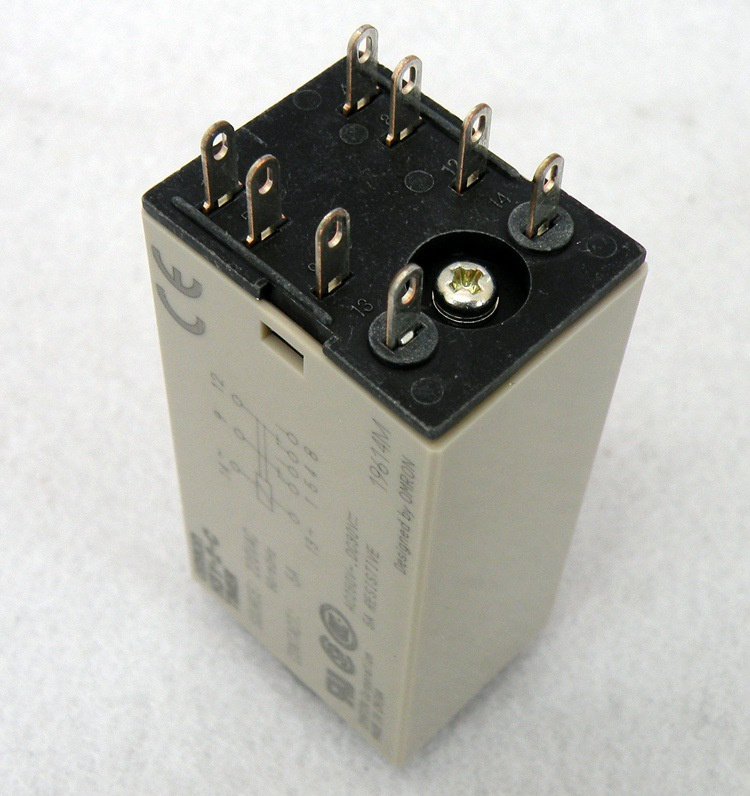

- Pin configuration compatible with MY Power Relay.
- Power Supply
Non universal voltage: AC(V) 12 ,24, 110, 220 ,240 50/60Hz,,DC(V) 12, 24.
- Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.
- Socket mounted with PYF08A-E
- On-Delay version

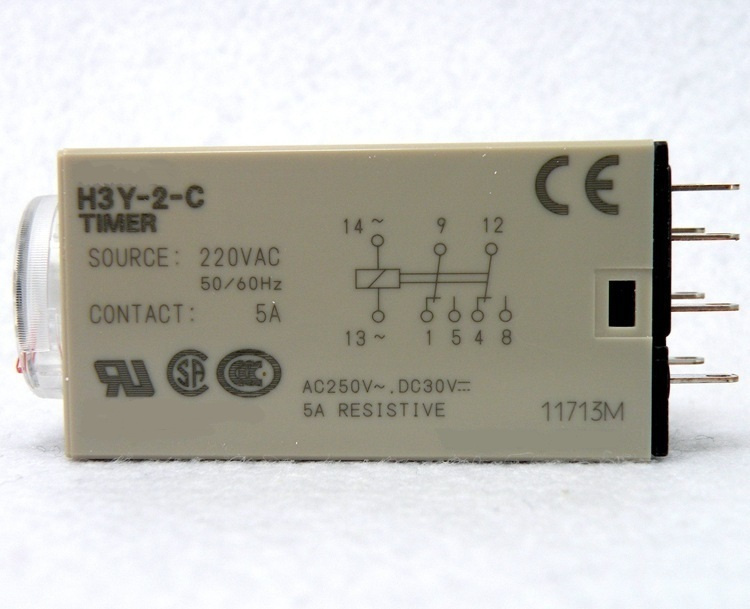

- Two delayed contact (DPDT Relay) Output
- LED indication for power and output statuses.

Time Relay Technical Data:

Dimensions	28H×21W×52.6D
Mounting & Socket	Surface(-N) PYF08A(E) Flush(-Y) With Y-20 adapter
Full timing range	SEC:1,3,5,10,30,60,120 MIN:3,5,10,30,60 HR: 3
Rated voltage	DC(V):12 24 AC(V):12 24 110 220 240 50/60Hz
Display	Power,up Operating
Contact O/P	Time limit 2C 5A Resistive load.
Life	Mechanical 5×10⁶times Electrical 1×10⁵times
Accuracy	Repeat error ±3%max Setting error -- Voltage error ±2%max Temp.error ±5%max
Reset time	0.2sec max
Insulation resistance	100MΩ(DC 500V)min
Dielectric strength	1500VAC
Consrmed power	3VA
Ambient temperature	-10ºC~+55ºC
Ambient humidity	48~85%RH
Weight	45g
