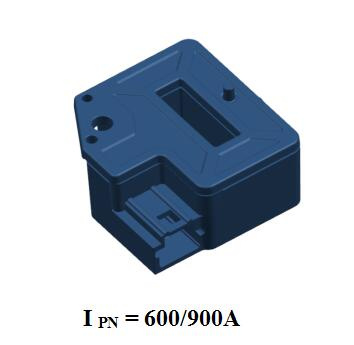

Description:For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit and the secondary circuit.
Features:1) Open loop transducer using the Hall effect
2) Low voltage application
3) Unipolar +5VDC power supply
4) Primary current measuring range up to ±1200A
5) Operating temperature range:-40ºC< TA<+125ºC
6) Output voltage: fully ratio-metric(gain and offset)Advantages:1) High accuracy
2) Excellent linearity
3) Low temperature drift
4) Hermetic packageIndustrial Applications:1) Standard battery monitoring
2) Hybrid and EV battery pack current sensing
3) Fuel cell current control
4) DC/DC converters and AC/DC inverters
5) Hybrid and EV motor inverter drive
6) EPS and X-by-wire applications
7) Electric compressors for air conditioning | Types of products |
| Type | Primary nominal current r. m. s IPN (A) | Primary current measuring range IP (A) |
| HS52-600A-C | ±600 | ±600 |
| HS52-900A-C | ±900 | ±900 |
Parameters Table:| Parameters | Symbol | Unit | value | Conditions |
| | | | Min. | Typ. | Max. | |
| Electrical data |
| Supply voltage | VCC | V | 4.5 | 5 | 5.5 | |
| Current consumption | ICC | mA | - | 9.2 | 12 | @TA = 25°C |
| Output Load Resistance | RL | kΩ | 4.7 | - | - | @VOUT to VCC |
| | RL | kΩ | 4.7 | - | - | @VOUT to GND |
| Output Load Capacitance | CL | nF | - | - | 10 | @VOUT to GND |
| Performance data |
| Output voltage | VOUT | V | Vcc /5×(2.5+ 2×Ip/Ipn) | @TA = 25°C |
| Output Linearity | εL | % | -1% | - | +1% | @TA = 25°C |
| Accuracy | X | % | -1.5% | - | +1.5% | @TA = 25°C |
| Quiescent Output Voltage(1) | VOUTQ | V | 2.5±20mV | @TA =25°C B=0 |
| Magnetic Sensitivity | SENS | mV/G | - | 1.3 | - | @TA = 25°C |
Sensitivity Temperature
Coefficient | TCSENS | %/ºC | -0.025 | 0 | 0.025 | |
| Output Resistance | ROUT | Ω | - | <1 | - | |
| Output Bandwidth | BW | kHz | - | - | 50 | @-3dB |
| Response time | tr | µS | - | 5 | 8 | |
| Rms voltage isolation test | Vd | kV | - | - | 2 | @AC 50Hz 1Min |
| General data |
| Ambient operating temperature | TA | ºC | -40~+125 | |
| Ambient storage temperature | TS | ºC | -40~+150 | |
Notes:
The indicated offset voltage is the one after the core hysteresis is removed.Instructions of use:1) When the test current passes through the sensors, you can get the size of the output voltage.(Warning: wrong connection may lead to sensors damage.)
2) Based on user needs, the output range of the sensors can be appropriately regulated.
3) According to user needs, different rated input currents and output voltages of the sensors can be customized.Product Details:

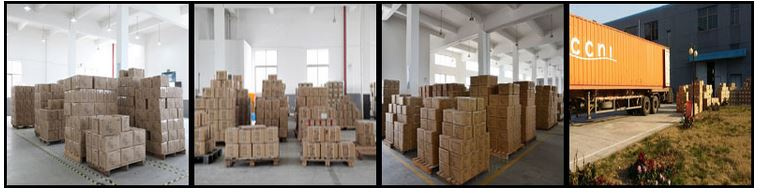

Packaging & Shipping:Packaging method:
