Halogen Free and UL Approved PE Heat Shrinkable Cable Sleeve
| Price: |
US $ 0.01-18.22/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Sunbow Halogen Free Flame-retardant Heat Shrinkable Tube
Model Number: SB-RSFR-125H
Working temperature: -45ºC ~ 125ºC
Structure
Halogen free flame-retardant heat shrinkable tube is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.
Usage
It is mainly used in electronics, telecommunication, automobiles, shipping and other manufacturing industries.
Characteristics
Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
Shrink ratio: 2:1
Shrink temperature: 84ºC ~ 120ºC
Specification | Property | Unit | Test Method | Standard |
| Tensile Strength | MPA | ≥10.4(before aging) | GB/T 1040 |
| ≥7.3(after aging) | 158ºC*168h |
| Breakage Elongation (%) | % | ≥200(before aging) | GB/T 1040 |
| ≥100(after aging) | 158ºC*168h |
| Heat Shock | - | no sticking & no cracking | 250ºC*4h |
| Cold Blend | - | no cracking | -30ºC*4h |
| Breakdown Strength | KV/mm | ≥15 | GB/T 1408 |
| Dielectric Withstand | 600V | - | Pass | no breakdown for 2500V, 60s |
| 300V | - | Pass | no breakdown for 1500V,60s |
| Volume Resistivity | Ω. cm | ≥1×1014 | GB/T 1410 |
| Corrosion Performance | - | pass | 158ºC*168h |
| Copper Stability | - | pass | 158ºC*168h |
| Flammability | - | pass | VW-1 |
Dimension| halogen free flame-retardant heat shrinkable tube |
Inner
Diameter | As Supplied(mm) | After Recovery(mm) | Standard Package | Application Range(mm) |
| Inner Diameter | Wall Thickness | Inner Diameter | Wall Thickness | (m/spool) |
| Φ0.6 | 0.9±0.2 | 0.20±0.05 | ≤0.40 | 0.33±0.10 | 400 | 0.4~0.7 |
| Φ0.8 | 1.1±0.2 | 0.20±0.05 | ≤0.50 | 0.33±0.10 | 400 | 0.6~0.8 |
| Φ1.0 | 1.5±0.2 | 0.20±0.05 | ≤0.65 | 0.36±0.10 | 400 | 0.75~0.9 |
| Φ1.5 | 2.0±0.2 | 0.20±0.05 | ≤0.85 | 0.36±0.10 | 400 | 0.95~1.4 |
| Φ2.0 | 2.5±0.2 | 0.23±0.05 | ≤1.00 | 0.45±0.10 | 400 | 1.1~1.8 |
| Φ2.5 | 3.0±0.2 | 0.23±0.05 | ≤1.30 | 0.45±0.10 | 400 | 1.35~2.3 |
| Φ3.0 | 3.5±0.2 | 0.23±0.05 | ≤1.50 | 0.45±0.10 | 400 | 1.6~2.7 |
| Φ3.5 | 4.0±0.2 | 0.23±0.05 | ≤1.80 | 0.45±0.10 | 400 | 1.85~3.2 |
| Φ4.0 | 4.5±0.2 | 0.25±0.05 | ≤2.00 | 0.45±0.10 | 400 | 2.1~3.6 |
| Φ4.5 | 5.0±0.2 | 0.28±0.05 | ≤2.30 | 0.56±0.10 | 200 | 2.35~4.0 |
| Φ5.0 | 5.5±0.2 | 0.28±0.05 | ≤2.50 | 0.56±0.10 | 200 | 2.6~4.5 |
| Φ6.0 | 6.5±0.2 | 0.28±0.05 | ≤3.00 | 0.56±0.10 | 200 | 3.1~5.4 |
| Φ7.0 | 7.5±0.3 | 0.28±0.05 | ≤3.50 | 0.56±0.10 | 100 | 3.7~6.3 |
| Φ8.0 | 8.5±0.3 | 0.30±0.08 | ≤4.00 | 0.56±0.10 | 100 | 4.2~7.2 |
| Φ9.0 | 9.5±0.3 | 0.30±0.08 | ≤4.50 | 0.56±0.10 | 100 | 4.7~8.0 |
| Φ10 | 10.5±0.3 | 0.30±0.08 | ≤5.00 | 0.56±0.10 | 100 | 5.2~9.0 |
| Φ11 | 11.5±0.3 | 0.30±0.08 | ≤5.50 | 0.56±0.10 | 100 | 5.7~10 |
| Φ12 | 12.5±0.3 | 0.30±0.08 | ≤6.00 | 0.56±0.10 | 100 | 6.2~11 |
| Φ13 | 13.5±0.3 | 0.30±0.08 | ≤6.50 | 0.56±0.10 | 100 | 6.7~12 |
| Φ14 | 14.5±0.3 | 0.35±0.10 | ≤7.00 | 0.70±0.10 | 100 | 7.3~13 |
| Φ15 | 15.5±0.4 | 0.35±0.10 | ≤7.50 | 0.70±0.10 | 100 | 7.8~14 |
| Φ16 | 16.5±0.4 | 0.35±0.10 | ≤8.00 | 0.70±0.10 | 100 | 8.3~15 |
| Φ17 | 17.5±0.4 | 0.35±0.10 | ≤8.50 | 0.70±0.10 | 100 | 8.8~16 |
| Φ18 | 19.0±0.5 | 0.35±0.10 | ≤9.00 | 0.70±0.10 | 100 | 9.3~17 |
| Φ20 | 22.0±0.5 | 0.35±0.10 | ≤10.00 | 0.83±0.15 | 100 | 10.4~19 |
| Φ22 | 24.0±0.5 | 0.40±0.12 | ≤11.00 | 0.83±0.15 | 100 | 11.4~21 |
| Φ25 | 26.0±0.5 | 0.40±0.12 | ≤12.50 | 0.90±0.15 | 50 | 12.8~24 |
| Φ28 | 29.0±0.5 | 0.45±0.12 | ≤14.00 | 0.90±0.15 | 50 | 14.4~29 |
| Φ30 | 31.5±1.0 | 0.45±0.12 | ≤15.00 | 1.00±0.15 | 50 | 16~29 |
| Φ35 | 36.5±1.0 | 0.45±0.12 | ≤17.50 | 1.00±0.15 | 50 | 18~34 |
| Φ40 | 41.5±1.0 | 0.45±0.12 | ≤20.00 | 1.00±0.15 | 50 | 21~39 |
| Φ45 | 46.5±1.0 | 0.50±0.15 | ≤22.5 | 1.00±0.15 | 25 | 23.5~44 |
| Φ50 | ≥50 | 0.50±0.15 | ≤25.0 | 1.10±0.15 | 25 | 26~49 |
| Φ60 | ≥60 | 0.60±0.15 | ≤30.0 | 1.20±0.15 | 25 | 35~55 |
| Φ70 | ≥70 | 0.65±0.15 | ≤35.0 | 1.30±0.20 | 25 | 40~65 |
| Φ80 | ≥80 | 0.65±0.15 | ≤40.0 | 1.30±0.20 | 25 | 45~75 |
| Φ90 | ≥90 | 0.65±0.15 | ≤45.0 | 1.30±0.20 | 25 | 50~85 |
| Φ100 | ≥100 | 0.65±0.20 | ≤50.0 | 1.30±0.20 | 25 | 55~95 |
| Φ120 | ≥120 | 0.65±0.20 | ≤60.0 | 1.30±0.20 | 25 | 65~115 |
| Φ150 | ≥150 | 0.65±0.20 | ≤70.0 | 1.30±0.20 | 25 | 80~145 |
| Φ180 | ≥180 | 0.65±0.30 | ≤90.0 | 1.30±0.30 | 25 | 95~175 |
| Φ210 | ≥210 | 0.65±0.30 | ≤105.0 | 1.30±0.30 | 25 | 110~205 |
| Φ230 | ≥230 | 0.65±0.30 | ≤115.0 | 1.30±0.30 | 25 | 120~225 |
| Φ250 | ≥250 | 0.65±0.30 | ≤125.0 | 1.30±0.30 | 25 | 130~240 |
halogen free flame-retardant ultra thin heat shrinkable tube |
Inner
Diameter | As Supplied(mm) | After Recovery(mm) | Package | Application Range (mm) |
| Inner Diameter | Wall Thickness | Inner Diameter | Wall Thickness | (m/spool) |
| Φ0.6CB | 0.9±0.2 | 0.13±0.05 | ≤0.40 | 0.20±0.10 | 200 | 0.4~0.7 |
| Φ0.8CB | 1.0±0.2 | 0.13±0.05 | ≤0.50 | 0.20±0.10 | 200 | 0.6~0.8 |
| Φ1.0CB | 1.40±0.20 | 0.13±0.05 | ≤0.65 | 0.20±0.10 | 200 | 0.7~1.0 |
| Φ1.5CB | 1.90±0.20 | 0.13±0.05 | ≤0.85 | 0.20±0.10 | 200 | 0.9~1.4 |
| Φ2.0CB | 2.40±0.20 | 0.13±0.05 | ≤1.00 | 0.22±0.10 | 200 | 1.1~1.8 |
| Φ2.5CB | 2.90±0.20 | 0.13±0.05 | ≤1.30 | 0.25±0.10 | 200 | 1.4~2.3 |
| Φ3.0CB | 3.40±0.20 | 0.13±0.05 | ≤1.50 | 0.28±0.10 | 200 | 1.6~2.7 |
| Φ3.5CB | 3.90±0.20 | 0.13±0.05 | ≤1.80 | 0.28±0.10 | 200 | 1.9~2.3 |
| Φ4.0CB | 4.40±0.20 | 0.15±0.05 | ≤2.00 | 0.30±0.10 | 200 | 2.1~3.6 |
| Φ4.5CB | 4.90±0.20 | 0.15±0.05 | ≤2.30 | 0.30±0.10 | 100 | 2.4~4.0 |
| Φ5.0CB | 5.50±0.20 | 0.15±0.05 | ≤2.50 | 0.32±0.10 | 100 | 2.6~4.5 |
| Φ6.0CB | 6.50±0.20 | 0.15±0.05 | ≤3.00 | 0.32±0.10 | 100 | 3.1~5.4 |
| Φ7.0CB | 7.50±0.30 | 0.15±0.05 | ≤3.50 | 0.32±0.10 | 100 | 3.7~6.3 |
| Φ8.0CB | 8.50±0.30 | 0.15±0.05 | ≤4.00 | 0.32±0.10 | 100 | 4.2~7.2 |
| Φ9.0CB | 9.50±0.30 | 0.15±0.05 | ≤4.50 | 0.35±0.10 | 100 | 4.7~8.0 |
| Φ10CB | 10.50±0.30 | 0.15±0.05 | ≤5.00 | 0.35±0.10 | 100 | 5.2~9.0 |
| Φ11CB | 11.50±0.30 | 0.18±0.05 | ≤5.50 | 0.40±0.10 | 100 | 5.7~10.0 |
| Φ12CB | 12.50±0.30 | 0.20±0.05 | ≤6.00 | 0.40±0.10 | 100 | 6.2~11.0 |
| Φ13CB | 13.50±0.30 | 0.20±0.05 | ≤6.50 | 0.40±0.10 | 100 | 6.7~12.0 |
| Φ14CB | 14.50±0.30 | 0.20±0.05 | ≤7.00 | 0.40±0.10 | 100 | 7.3~13.0 |
| Φ15CB | 15.50±0.40 | 0.20±0.05 | ≤7.50 | 0.40±0.10 | 100 | 7.8~14.0 |
| Φ16CB | 16.50±0.40 | 0.22±0.05 | ≤8.00 | 0.40±0.10 | 100 | 8.3~15.0 |
| Φ17CB | 17.50±0.40 | 0.22±0.05 | ≤8.50 | 0.40±0.10 | 100 | 8.8~16.0 |
| Φ18CB | 18.50±0.40 | 0.22±0.05 | ≤9.00 | 0.42±0.10 | 100 | 9.3~17.0 |
| Φ20CB | 20.50±0.50 | 0.25±0.05 | ≤10.0 | 0.45±0.10 | 100 | 10.5~19.0 |
| Φ22CB | 22.50±0.50 | 0.25±0.05 | ≤11.0 | 0.45±0.10 | 100 | 11.5~20.5 |

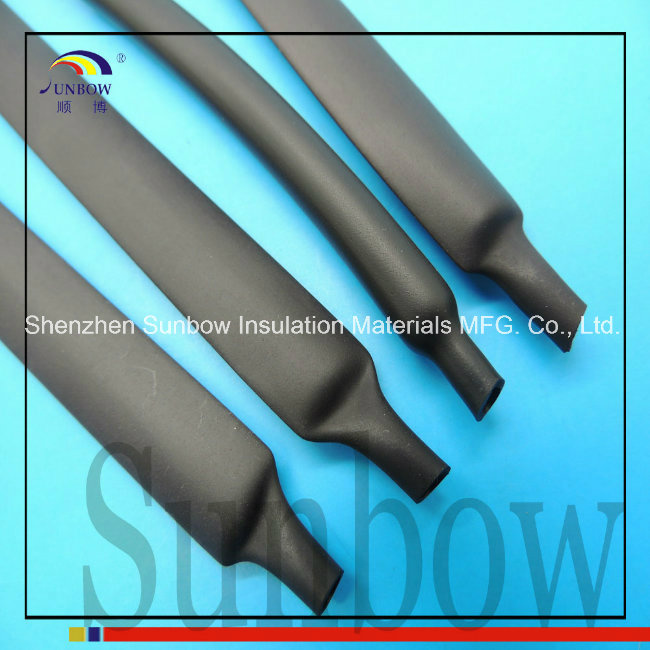

Color: Standard color is black (other color available upon request).
| Prod Model: |
SB-RSFR-125H |
| Working Temp: |
-45~+125 C |
| Shrink Temp: |
84~120c |
| Shrink Ratio: |
2:1 |

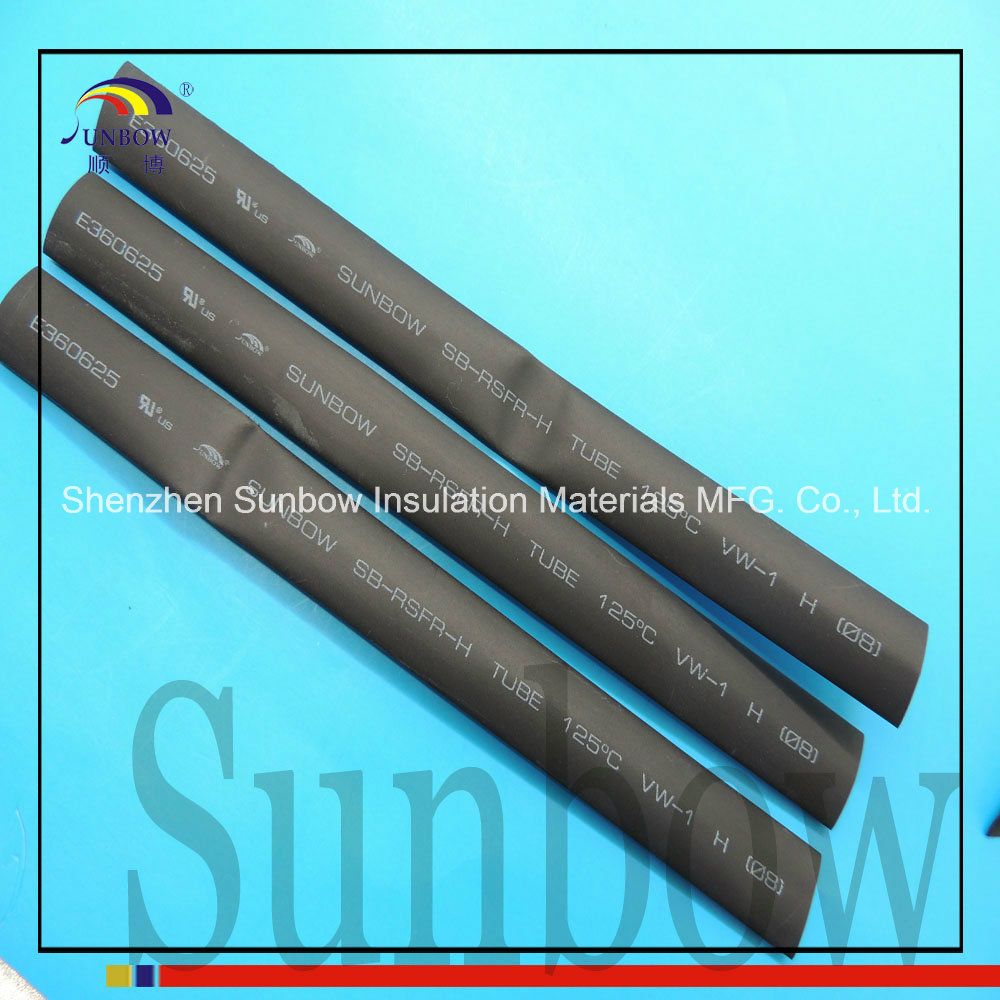

| UL No.: |
E360625 |
| Voltage Rating: |
300V or 600V |
| Standard Color: |
Black |
| Application: |
Wire Harness, Transformer, Heating Elements etc |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Thermal Rating: |
E 120 |
| Maximum Voltage: |
<10KV |
| Material: |
Polyolefin |
| Certification: |
Ts16949 |
| Color: |
All Colors |
| Brand: |
Sunbow |

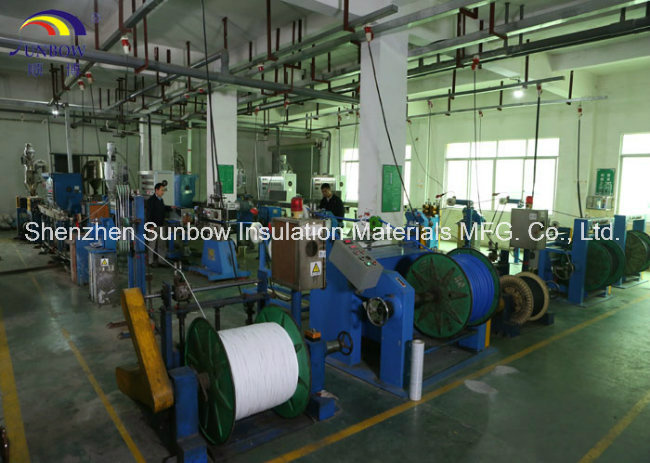

Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

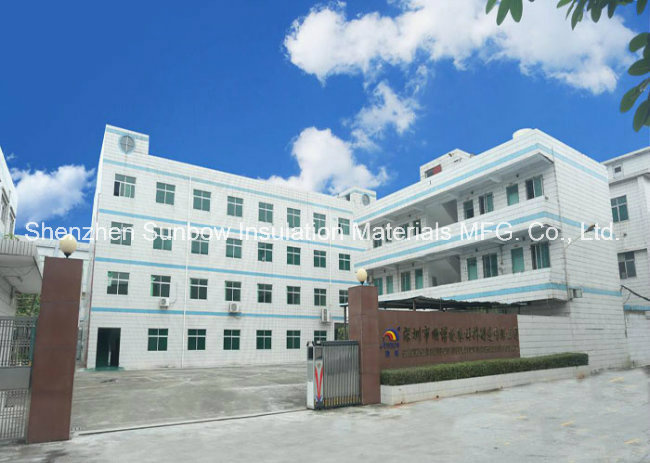

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.
Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.
We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
