| Prod Model: |
LS-YLP-P20/30/50L |
| Model: |
Ls-Ylp-20L |
| Laser Power: |
20W |
| Power Consumption: |
<500W |
| Wavelength: |
1064nm |
| Engraving Range: |
Max 400*400mm(Customized) |
| Engraving Depth: |
1.2mm |
| Minimum Line Width: |
0.012mm |
| Minimum Character: |
0.1mm |
| Repeated Accuracy: |
+-0.003mm |
| Life Of Laser Module: |
100000hrs |
Product Description

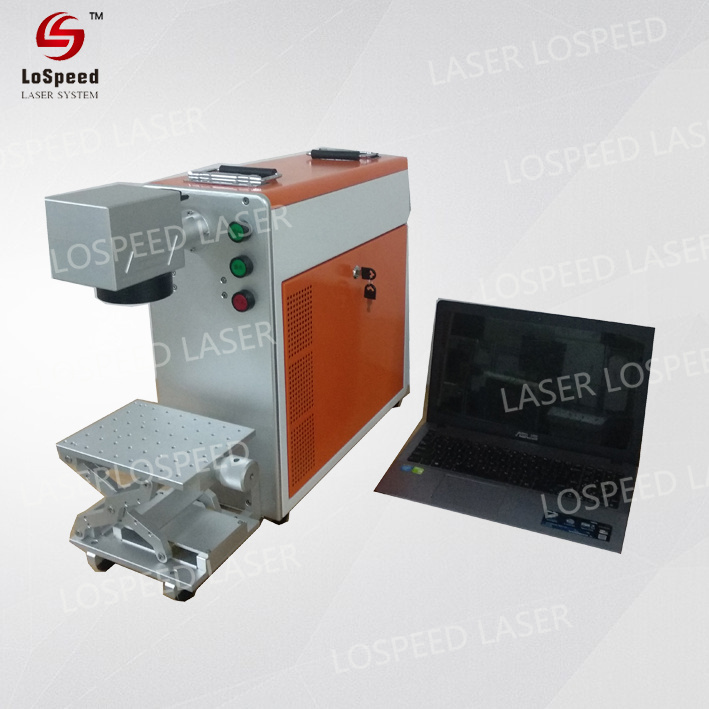

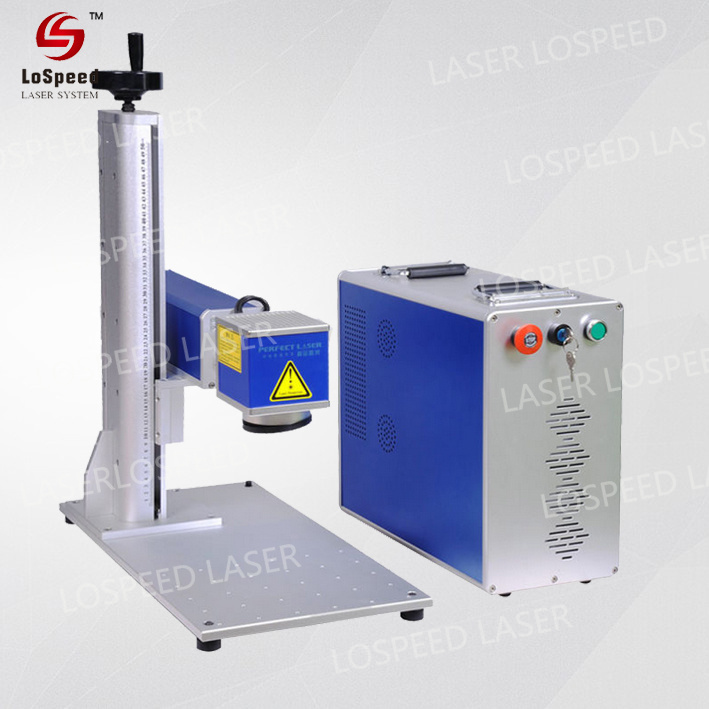

Handheld Laser Marking Machine with CE Introduction of Fiber Laser Marking Machine:Fiber Laser marking marking machine is widely used in marking engraving on metal and non-metal material. such stainless steel parts, aluminum phone cases printing, plastic parts, pen, annimal ear tag, nameplate and so on.
Features of Fiber Laser Marking Machine: 1. 100000 Hours Long lifetime, No consumables, Free of Maintenance.
2. Best Marking Effect, Deep Marking, Higher Accuracy.
3. No need to adjust the laser path, Use Integrated Air Cooling.
4. Low Power Consumption, Small and compact
Technical Parameters:
| Model | YLP-20L | YLP-30L |
| Power | 20W | 30W |
| Wavelength | 1064nm | 1064nm |
| Beam Quality | M2<1.3 | M2<1.3 |
| Output Power | 10%-100%(continuously to be adjusted) | 10%-100%(continuously to be adjusted) |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) | 20KHz-100KHz(continuously to be adjusted) |
| Power Stability(8h) | <±1%rms | <±1%rms |
| Focus Spot Diameter | <0.01mm | <0.01mm |
| Engraving Range | ≤400*400mm(customized) | ≤400*400mm(customized) |
| Engraving Depth | 1.2mm | 1.2mm |
| Engraving Speed | 800 standard characters/second | 800 standard characters/second |
| Minimum Line Width | 0.012mm | 0.012mm |
| Minimum Character | 0.1mm | 0.1mm |
| Repeated Accuracy | ±0.003mm | ±0.003mm |
| System Operation | Windows XP/2000/98 | Windows XP/2000/98 |
| Cooling Mode | Air Cooling | Air Cooling |
| Environment Temperature | 10ºC~35ºC | 10ºC~35ºC |
| Environment Humidity | 20%-80% | 20%-80% |
| Power Requirement | 220V/Singlephase/50Hz/<400W | 220V/Single phase/50Hz/<400W |
| Life of Laser Module | 100000Hrs | 100000Hrs |
| Host Size | 800mmx650mmx1435mm | 800mmx650mmx1435mm |

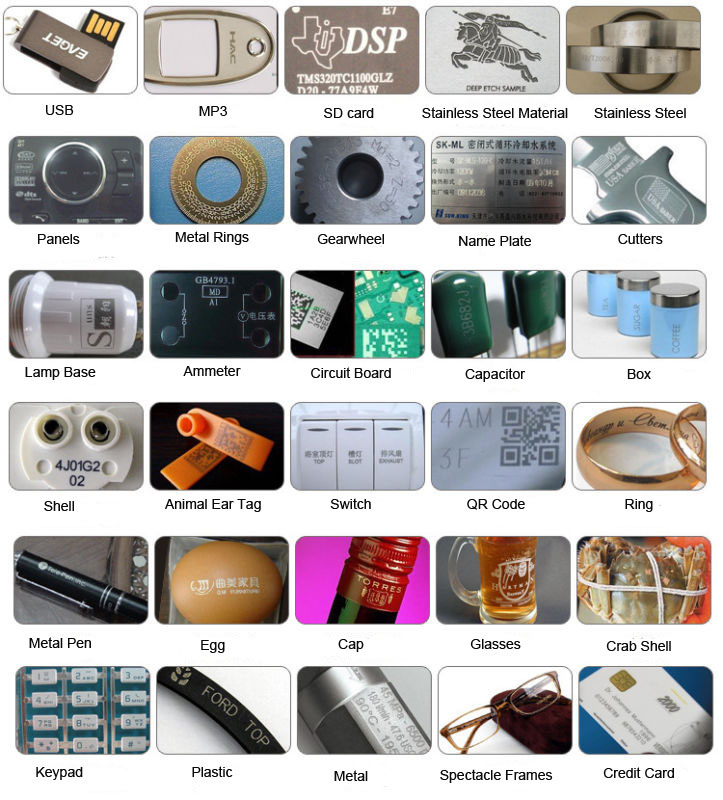

Applicable Materials:
| Electronic Components : | Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
| Apparatus And Meter: | Panel signs, precision equipment ,etc., |
| Instrument: | Panel signs nameplates, precision equipment ,etc., |
| Hardware Tools : | Knives, tools, measuring tool, cutting tool, etc., |
| Automobile Parts : | Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., |
| Mechanical Parts : | Bearings, gears, standard parts, motors, etc., |
| Daily Necessities : | Handicrafts, zipper, key holder, sanitary ware, etc., |
| Jewelry Rings: | Jewelry, gold, silver,etc. |
| Food, drinking packing: | Plastic packings,etc. |

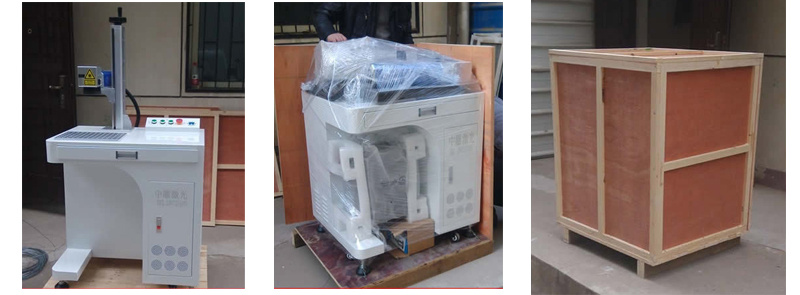

Packaging & Shipping
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand.
Looking forward to your inquiry!!!
