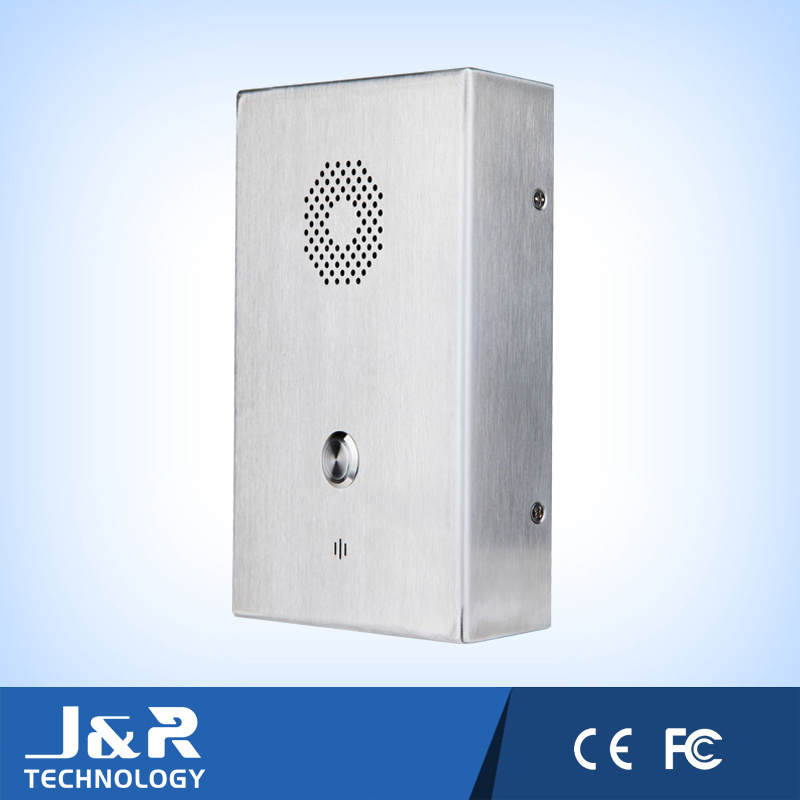

J&R Handsfree Elevator Intercom Lift Phone
APPLICATIONS:
Model Number: JR302-SC-OW
Handsfree Elevator Intercom Telephone with Weather Resistant could used for Banks,cleanroom,hotel service,escape trunk,Marine,Chemical plant,control room,metro station and related industrial application, etc.Industrial Flush Mounted Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance.
It is designed to meet the needs of clients who experience loss through vandalism.
Ideal for schools, streets, public square, court houses, rail platforms, car-parks, police stations, hospitals, outside buildings, gate entry, etc.
Key Features:
Suitable for indoor & outdoor application
Designed to flush mount or surface mount into flat surface
The phone has stainless steel faceplate, Material: Metal SS 304,thickness 2 mm.
The telephone electronics is on the rear of the faceplate and is
covered with back box in CRCA for protection
The phone operates on standard analog phone line
It is Line powered i.e. power drawn from telephone line. It doesn't require battery or any external power source.
Built in Ringer, in front panel.
Sealed, push button keypad for smoother and faster dialing of numbers.
Dialing system: Tone dialing (DTMF)
No mechanical or moving parts.
Visual LED indicator: High Intensity, flashing,Red color LED, during incoming call and High Intensity,continuous, Green color LED, during use mode
Compatible for interconnection with external ringer, flasher, hooter etc. through additional hardware
Compatibility: Fully compatible with all PBX's
Cabling: Single Pair Telephone Cable
FEATURES:
GSM/SIP/Analogue/3G Version Telephone
Weather protection IP54-IP65
Tamper resistant fixings
Simple installation, flush mount
Fast-fit terminal connection
DC 12V powered
Programmed by SMS
Robust construction, Vandal resistant
Can be programmed remotely by tone phone or locally via keypad
Non-volatile memory
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
CE, FCC compliant
TECHNICAL SPECIFICATIONS:
| Telephone Versions | Analogue,SIP,GSM,3G Optional |
| Operating Temperature | -30°C to +65°C |
| Storing Temperature | -40°C to +75°C |
| Ringing Tone | 80 dBA @ 1 metre typical |
| M.T.B.F. | excess of 50,000 hours using |
| Power Supply | telephone line or DC or solar powered |
| Weather Resistance | IP54-IP65 |
| Casing Material | stainless steel box |
Power Consumption
Idle:0.6W/Active:1.8W
Working Frequency Range:
GSM850/900/1800/1900MHZ
PACKAGE:
Unit size: 190*280*124(mm)
Carton size:340 *240 *160( mm)
Packaging materials: pearl cotton, carton
Net weight: 2.4KG
Gross weight: 3KG
J&R is one of the most professional manufacturers of weatherproof telephones, emergency telephones, industrial telephones, public telephones and telephone manage system in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include telephone manage system, weatherrproof phones, inmate phones, emergency phones, elevator phones and telephone kits as well.
As a reliable supplier of different kinds of industrial phones, we have been sharing the equipment and systems with different customers and users all over the world. The professional service and excellent quality made us enjoy the reputation over more than 80 countries, including USA, China, Thailand, Malaysia, Turkey, Israel, Greece, Spain, France, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile etc.
Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. We serve any single potential customer with special individual solutions and systems.
Choose J&R technology, choose reliable talks.
