| Prod Model: |
H3051S |
| Color: |
Black |
| Output: |
4-20mA with Hart(2-Wire) |
| Resolution: |
0.001%Fs |
| Dimension: |
Diameter =62mm |
| Mounting Hole Pitch: |
D=55mm |
| Supply Voltage: |
12-32VDC |
| Warranty: |
1 Year |
Product Description

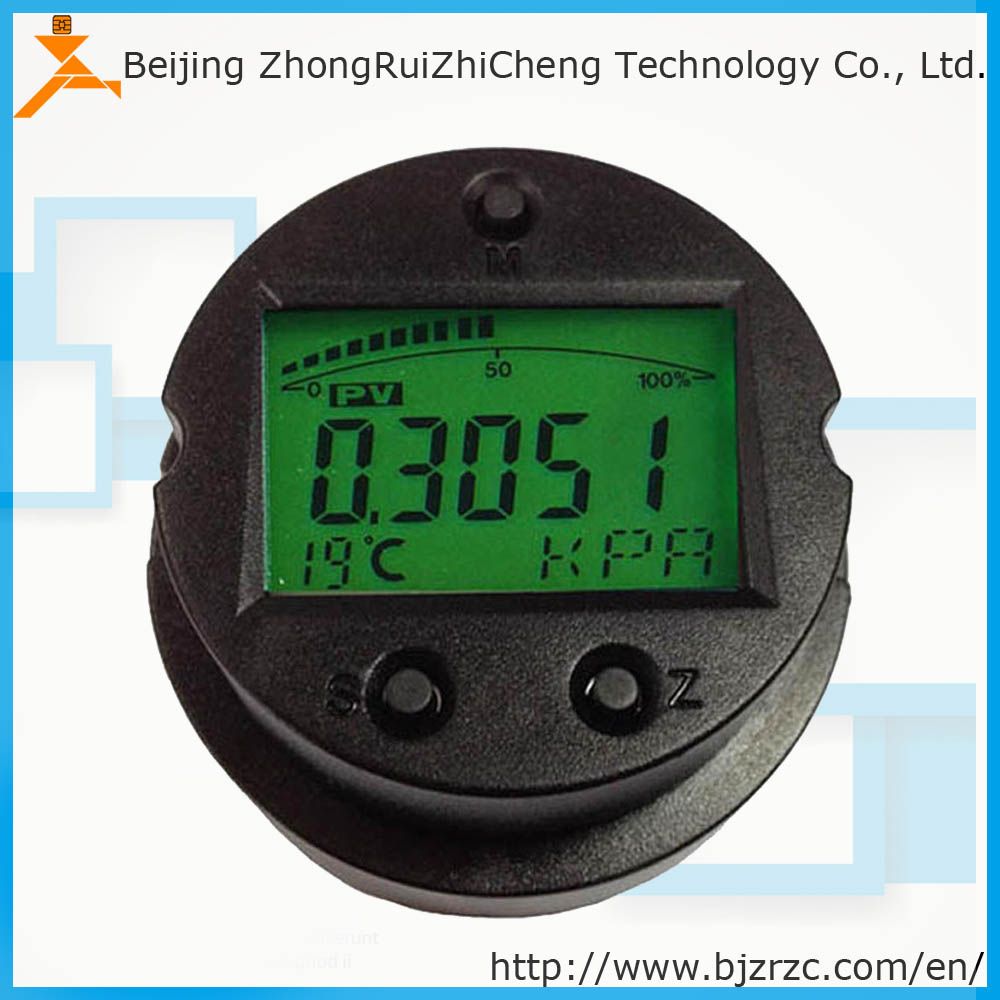

H3051S Differential Pressure Transmitter
- Used for metal capacitive sensors
- Power supply: 12-32VDC
- Output: 4~20mA with HART (2-wire)
- Operating temperature:
-20°C ~ +70°C(with LCD)
- Resolution: 0.001%FS
- Dimension: diameter Φ= 62mm Mounting hole pitch D=55mm
FEATURES
1, High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
2, Leading micro-differential pressure technology:Unique direct digital frequency synthesis (DDS) technology ensures accurate output for low pressure range (e.g. 2kpa).
3, Large range turndown
4, Strong capability for anti-disturbance: Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.
5, Multiple local operation functions: Range Values, PV Unit, Damp, Transfer Function(Linear/Square root ), Zero Trim, Lower Sensor Trim, Upper Sensor Trim and Data Restore.
6, Flexible linearity and temperature compensation: The number of points for compensating temperature and pressure can be changed on demand.
7, 360o rotation LCD display
8, Multiple variables shown on the LCD: More than one variable displayed on the LCD with backlight for dark environment.
9, Data backup and restore
10, Easy to install and reliable with unique design.
Local Adjustment Operation Code List:
LEFT-BOTTOM '88'Display | Function |
0 or NONE | Normal display. |
1 | Input operation code by KEY, user can input operation code such as 2,3,5,6 or 7, to perform corresponding function respectively. |
2 | PV Unit setting |
3 | PV Lower Range Value setting( Set LRV) |
4 | PV Upper Range Value setting( Set URV) |
5 | Damping setting |
6 | ZERO TRIM |
7 | Zero and span Migration |
8 | Output Characteristics [linear output, or Square root output ] |
9 | Low Trim |
10 | High Trim |
11 | Bias Setting |

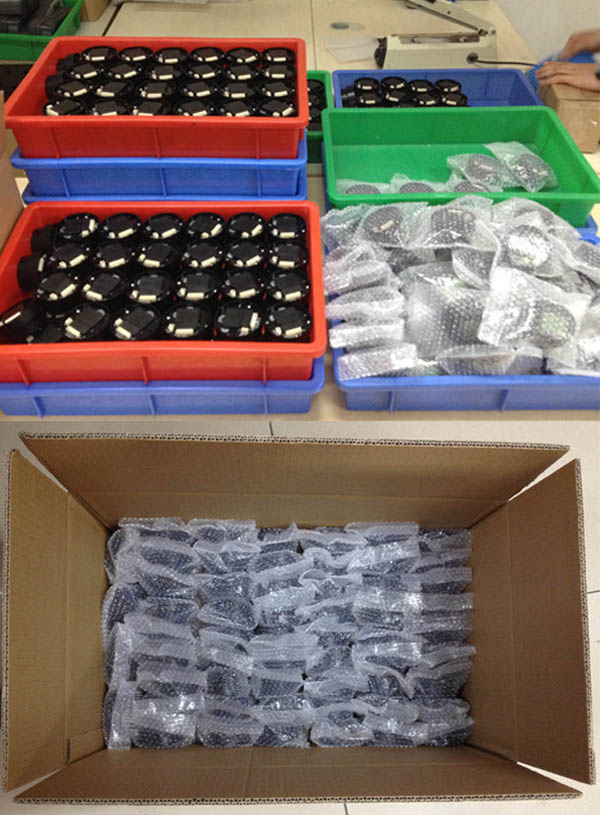

Packaging & Shipping
Beijing ZhongRuiZhiCheng Technology Co., Ltd.
A professional engineering team with 15 Years HART/5 years Profibus R&D experiences
80% Market share in China Mainland market for HART transmitters
More than 1000k Units shipped per year
One-stop Solution for various HART/Profibus transmitters
Quick response in goods supply and post-sales support
Globally distributed customers including China Mainland, Korea, India, America, Europe, etc
