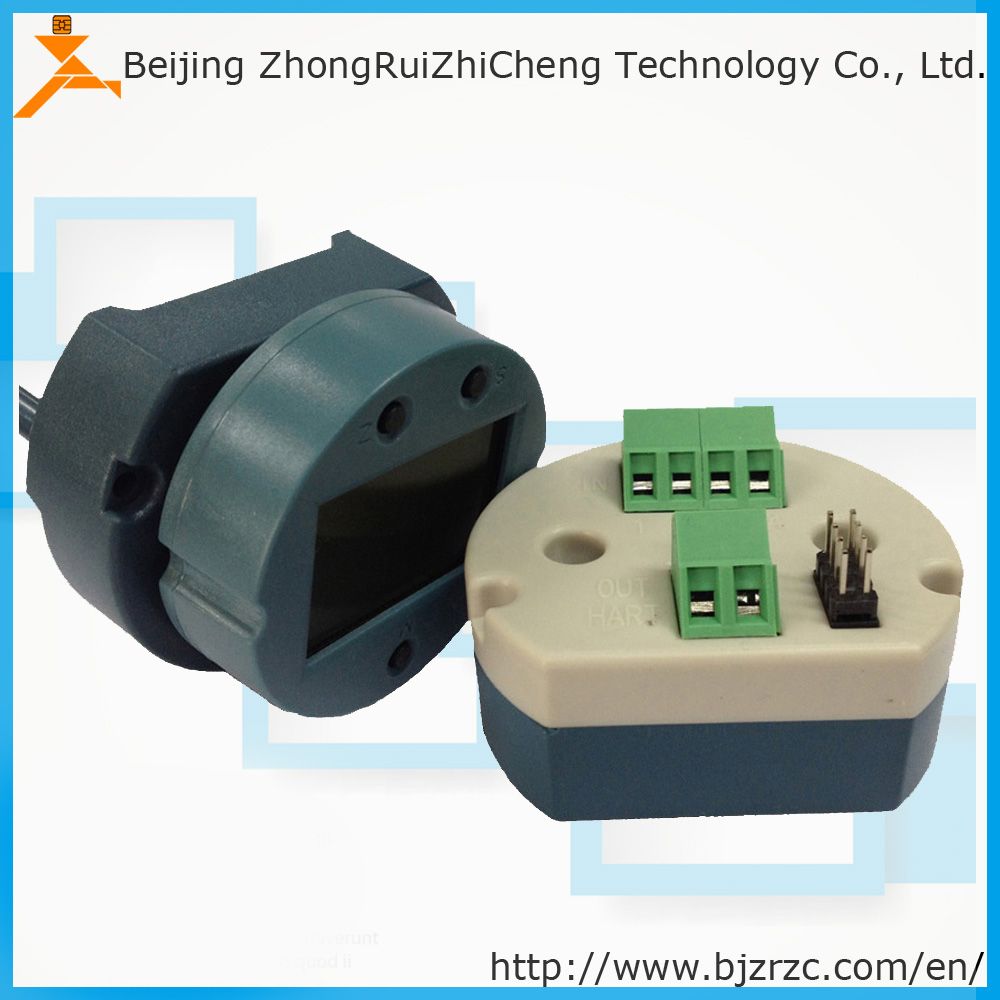

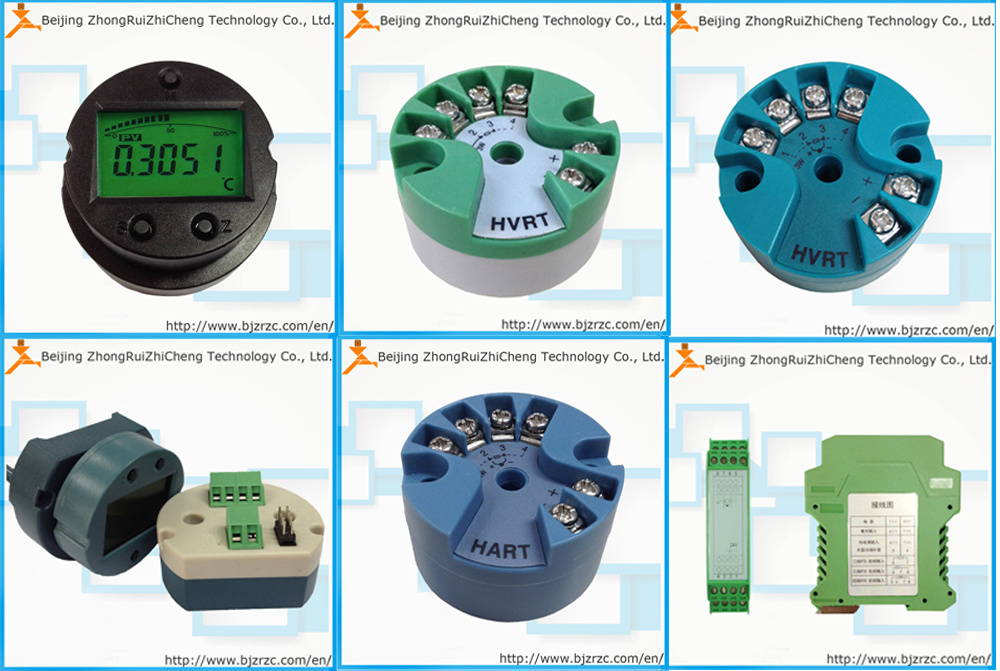

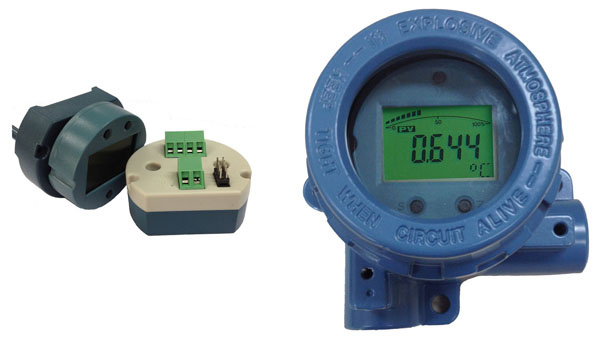

H644WD temperature transmitter module
Appliction |
Used for | RTD, TC, Ohm, mV |
Specifications |
Power supply: | 10-32VDC |
Output: | 4-20 mA with HART (2-WIRE) |
Stability: | 0.01°C (RTD), 0.1°C(E J K N T) 0.2°C(B R S) |
Accuracy: | 0.01°C(RTD) 0.5°C(E J K N T) 1.0°C(B R S) |
Load resistance | ≤ (U-10)/0.22 |
Relative humidity: | 10%-90%RH |
Operating temperature | -40°C~+85°C |
Dimension: | Diameter Φ=44mm |
Mounting hole pitch: | D=33mm |
Weight: | About35g |
Sensor Type RTD(Resistance Thermometer): PT50,PT100,PT500,Pt1000 TC (Thermocouple): E ,J, K, N ,T ,B, R ,S Ohm:0 ~ 500Ω, 0 ~ 4500Ω Millivolt:-120 ~120mV, -1000 ~ 1000Mv |
Features
High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
High reliability: Built-in multi-level protection circuit for high reliability. Outstanding EMC performance.

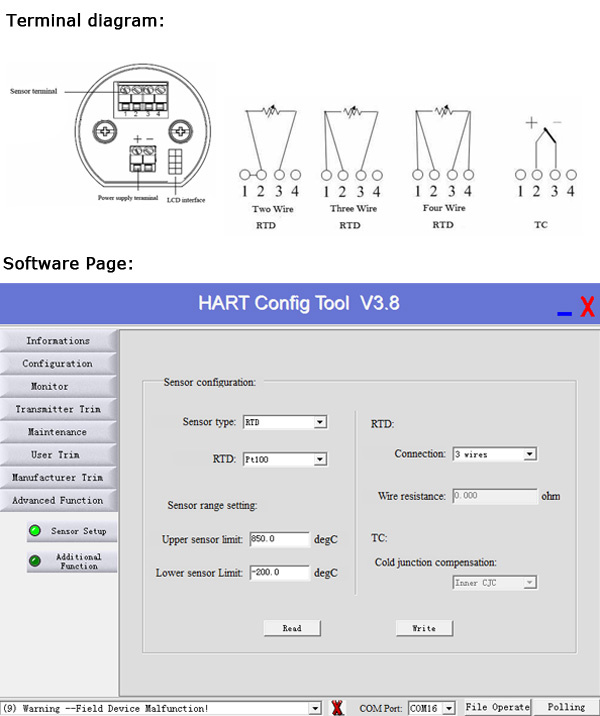

Hart Programming System Wiring:
Signal Type | Measurements Range | Minimum Range | Output Accuracy |
Thermocouples (TC) | T | -200~400ºC | 25ºC | ±0.4ºC/0.2% |
E | -200~1000ºC | 25ºC | ±0.4ºC/0.2% |
J | - 210~1200ºC | 25ºC | ±0.4ºC/0.2% |
K | -200~1372ºC | 25ºC | ±0.4ºC/0.2% |
N | -200~1300ºC | 25ºC | ±0.4ºC/0.2% |
R | 0~1768ºC | 100ºC | ±0.8ºC/0.2% |
S | 0~1768ºC | 100ºC | ±0.8ºC/0.2% |
B | 150~1820ºC | 100ºC | ±1.0ºC/0.2% |
mV input | -120~120mV | 10mV | ±10μV /0.2% |
-1000~1000mV | 50mV | ±100μV /0.2% |
Resistance Temperature (RTD) | Pt50 | -200~850ºC | 10ºC | ±0.15ºC/0.2% |
Pt100 | -200~850ºC | 10ºC | ±0.15ºC/0.2% |
Pt500 | -200~850ºC | 10ºC | ±0.1ºC/0.2% |
Pt1000 | -200~850ºC | 10ºC | ±0.1ºC/0.2% |
Ohm input | 0~500 Ω | 100Ω | ±0.2 Ω/0.2% |
0~4500 Ω | 100Ω | ±1.0 Ω/0.2% |
Equipment and Software:
Please prepare the appropriate equipment and software before production.
1. H644WD temperature module.
2. 24V DC power, HART232 Modem, and a resistor between 200 and 500 ohm for communication.
3. HART -CONFIG TOOL.exe software.
FAQ:
1,Customer: i want buy the samples to test, it is ok?
Helen: of course, not free sample, but when the next order, we will return the samples money to your.
2,Customer: when will you do the shippment after my payment ?
Helen: we have the in stock, when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/DEDEX,etc)
3,Customer: How to pay?
Helen: the Western union, Paypal, person account, TT ,and so on.
FAQ:
1,Customer: i want buy the samples to test, it is ok?
Helen: of course, not free sample, but when the next order, we will return the samples money to your.
2,Customer: when will you do the shippment after my payment ?
Helen: we have the in stock, when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)
3,Customer: How to pay?
Helen: the Western union, Paypal, person account, TT ,and so on.
Samples small quantity are avaliable at any time Welcome to contact us!
